product description

Rigging screw welded jaw swage stud – professional grade and reliable

Jaw Jaw Wire Rope Fork Rigging Screw




What are Rigging Screws and Turnbuckles ?

Rigging screws and turnbuckles are sometimes referred to as a wire rope tensioner,bottle screws,barrel strainers or straining screws and are a special type of fitting which are used to enable the tensioning of wire ropes.Once fitted the tension of the rope can easily be adjusted whenever you need to,whether it is to tighten or loosen the rope.All that is needed is to turn the main body or barrel.

They are commonly used in rigging applications and anywhere that the wire will need tightening to a unique rigidity to fit its objective,for example,bridges, balustrades,staircases and hanging shelves.They are often utilised for use as barriers (instead of fencing) to avoid access to certain areas or as a safety barrier,but are easy on the eye.For example they are used on castle ramparts to allow the public to be able to walk around them safely,yet they do not intrude too much on the original nature of the buildings.

Rigging Screws have the closed barrel type centre and so look more aesthetically pleasing whilst Turnbuckles have an open body/centre piece which turns around the visible screws.The definition of a turn buckle is type of coupling which possesses internal screws that are used to connect two wires or rods, end to end in order to adjust the tension.

Jaw Jaw Turnbuckle Fork Rigging Screw

rigging screw welded jaw swage stud

These contemporary rigging screws are designed from top grade stainless steel bars.These are then buffed to create a high-shine finish.

One screw end is left-hand threaded whilst the other end has threads that twist to the right which means the tension is adjustable by turning the frame.It also allows both of the terminals to be screwed in or out at the same time without causing damage to fittings or the wire rope through twisting.

Perfectly designed for adjusting the tension of your wire rope as needed,as well as balustrade systems and other tensioning methods.Additionally,they can withstand moist air and salt so are very tough.

Rigging screw welded jaw swage studs are very commonly used in the sailing,marine and fishing industries.

Jaw Swage Rigging Screw Fork Turnbuckle

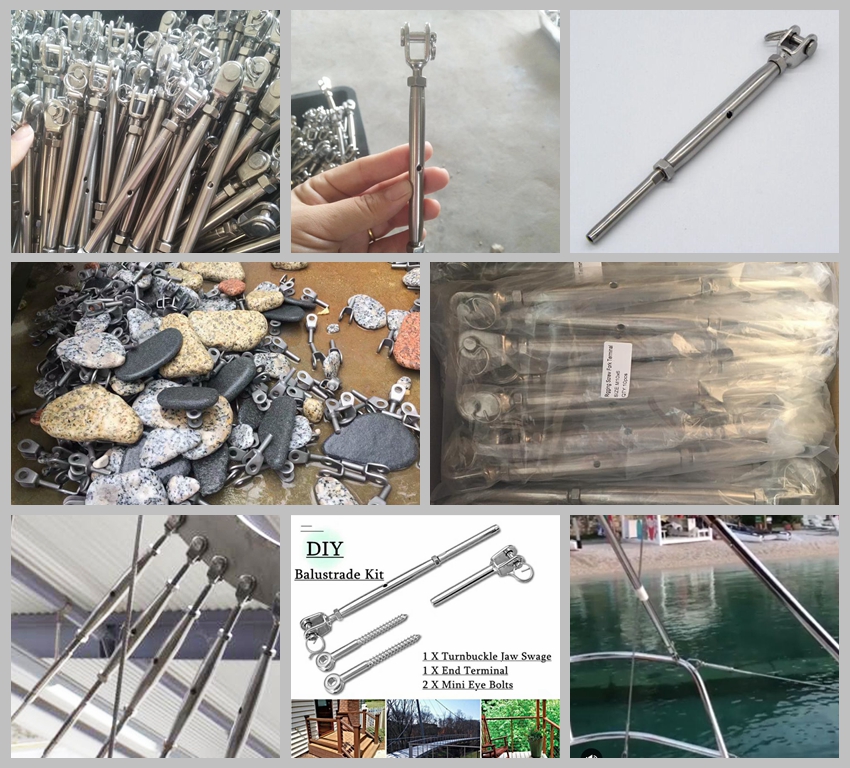

The Jaw and Swage Stud Turnbuckle fits wire rope sizes 2.5mm to 16mm.This turnbuckle features a jaw,swage stud and closed body style.It is made from grade 316 stainless steel for maximum corrosion resistance and durability,making it ideal for marine and architectural use.


Jaw Jaw Wire Rope Fork Rigging Screw

Jaw Swage Rigging Screw Fork Turnbuckle

Come and order your rigging screw welded jaw swage stud

At Haifan Rigging we offer rigging screw welded jaw/swage studs in a huge spectrum of designs.

To place an order,just fill in a rapid online form here.but please do ask us if you need anything custom-made.

If you wish to ask a question or need further advice,you are welcome to contact us.we’ll be happy to help.

We are always available for clarification and for order.

We look forward to hearing from you!
