Rigging Screw Toggle Swage Stud

What are Rigging Screws and Turnbuckles ?

Rigging screws and turnbuckles are sometimes referred to as a wire rope tensioner,bottle screws,barrel strainers or straining screws and are a special type of fitting which are used to enable the tensioning of wire ropes.Once fitted the tension of the rope can easily be adjusted whenever you need to,whether it is to tighten or loosen the rope.All that is needed is to turn the main body or barrel.

They are commonly used in rigging applications and anywhere that the wire will need tightening to a unique rigidity to fit its objective,for example,bridges, balustrades,staircases and hanging shelves.They are often utilised for use as barriers (instead of fencing) to avoid access to certain areas or as a safety barrier,but are easy on the eye.For example they are used on castle ramparts to allow the public to be able to walk around them safely,yet they do not intrude too much on the original nature of the buildings.

Rigging Screws have the closed barrel type center and so look more aesthetically pleasing whilst Turnbuckles have an open body/center piece which turns around the visible screws.The definition of a turnbuckle is type of coupling which possesses internal screws that are used to connect two wires or rods,end to end in order to adjust the tension.

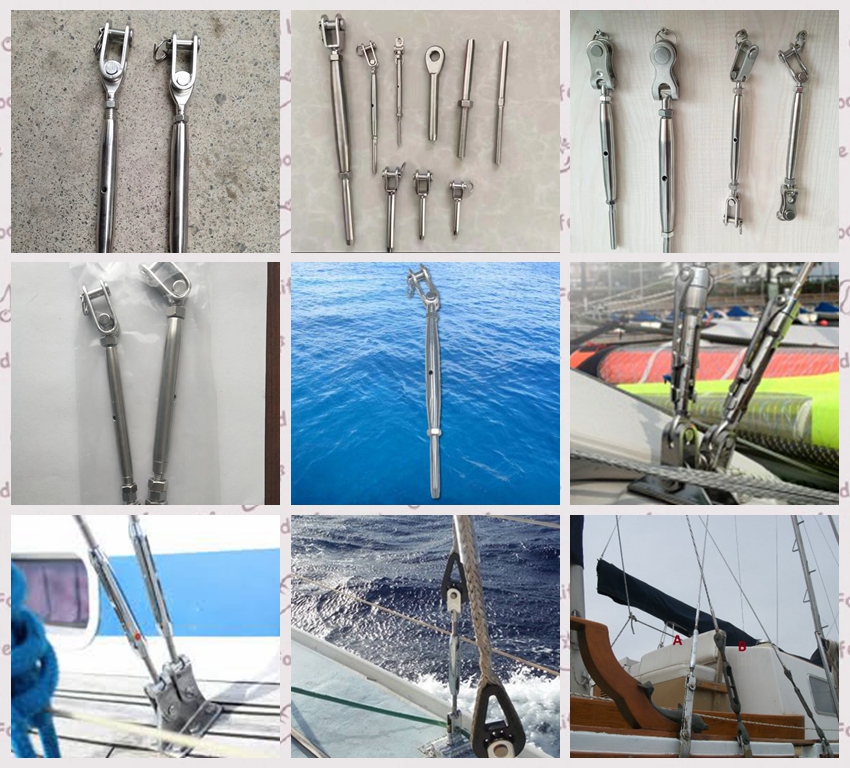

Rigging Screw Toggle Swage Stud

Also known as adjusters,bottle screws,tensioners or simply rigging screws,these traditionally designed toggles are created from excellent quality 316 grade solid stainless steel bars.This bar is then polished to produce a mirror finish.

With the screw body itself and the toggle at one end,and the swage stud on the opposing end,these studs are specially manufactured for crimping on to end of stainless steel wire rope.

Ample toggle straps are also designed to take the full weight of the load on either side of the eye and pin.This adds extra safety in that they won't fail due to an unbalanced or moving load.Generally used in conjunction with locking nuts,rigging screw toggles come in a mix of different combinations and are also suitable with Marine Bodies or Open Bodies.They are also resistant to humidity,salty air and sea water.

Rigging screw toggles/swage studs are particularly deployed in wire rope rigging jobs on yachts and sailboats and in leisure and sporting industries.

The Toggle and Swage Stud Turnbuckle fits wire rope sizes 3mm to 10mm.This turnbuckle features a toggle,swage stud and closed body style.It is made from grade 316 stainless steel for maximum corrosion resistance and durability.

Get ordering your rigging screw toggle swage stud today

Here at Haifan Rigging we sell rigging screw toggles/swage studs in a massive range of sizes.To place an order for your rigging screw(s),all you need to do is fill out our enquiry form here and we'll get back to you.

To put in your order, just fill out our short enquiry form here,but please do ask us if you need anything custom-made.

If you wish to ask a question or need further advice, you are welcome to contact us. We’ll be happy to help.

We are always available for clarification and for order.

We look forward to hearing from you!
