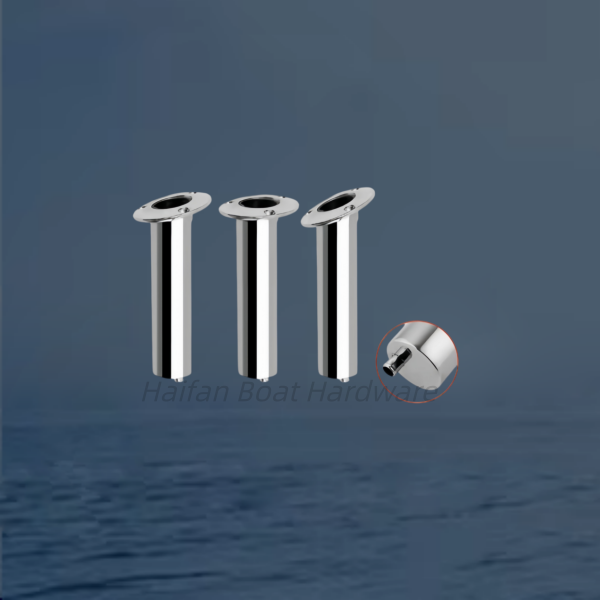

Flush-Mount Fishing Boat Rod Holders with Integrated Bottom Drains. These marine-grade holders are designed with a closed-bottom capsule featuring a barbed drain tail fitting (highlighted in the red circle callout) to hook up a drainage hose, ensuring that rain, salt spray, and deck-wash route directly into the bilge rather than leaking into dry under-deck storage compartments.
Structural Angles & Layout Specifications
The three units display the industry-standard layout angles required along boat gunwales and transoms:
• Left Unit (15-Degree Tilt): Engineered with a subtle, shallow slant. This is perfect for narrow gunnels or bow positioning where a minor outward angle is desired.
• Center Unit (90-Degree Vertical): The flange sits perfectly perpendicular to the tube body. It is designed strictly for vertical rod storage, rocket launchers, or inserting marine grill mounts, bait-prep tables, and deck umbrellas.
• Right Unit (30-Degree Tilt): The most common and essential angle for offshore trolling. It slants the rod tips significantly outward over the water, maximizing your spread and preventing lines from Tangling with the hull or propeller.
Hardware & Sourcing Specifications
• Marine-Grade Material: Forged from high-mirror polished 316 stainless steel for superior rust resistance against saltwater exposure.
• Standard Tube Diameter: Typically uses a 2-inch (50.8 mm) outer diameter tube, requiring a matching hole saw template cut through the fiberglass or aluminum gunwale.
• Flange Mount System: Designed with an oval teardrop flange pre-drilled with three countersunk holes to secure flush with flat-head #12 or 1/4-inch fasteners.
Are you planning to install drainage hoses to route the runoff to a specific bulkhead, or do you need assistance checking the overall tube length dimensions to ensure they clear the depth of your boat's gunwale space?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
