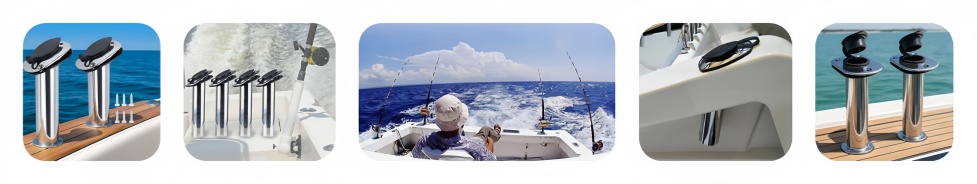

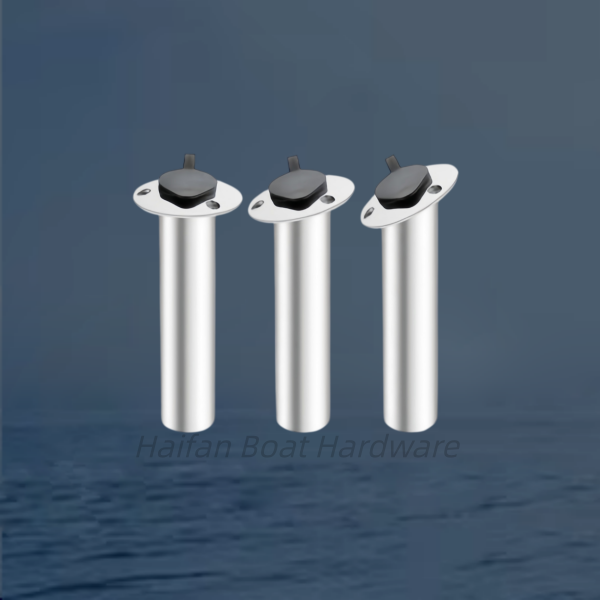

Flush Mount Rod Holders with Rubber Cap are essential marine hardware components used for secure fishing rod storage, trolling setups, and preventing water from entering the gunwale or boat hull.
Key Technical Specifications & Variations
When sourcing or replacing these rod holders, manufacturers typically classify them by three main criteria:
• Degrees of Angle:
• 30-Degree Tilt (Most Popular): Optimized for trolling. It angles the rod tips outward away from the boat, preventing line tangles and widening your fishing spread.
• 15-Degree Tilt: Provides a medium angle, useful for narrower gunwales or specific rod positioning.
• 90-Degree (Vertical): Designed strictly for vertical rod storage, rocket launchers, or inserting boat umbrellas and bait tables.
• Material Grades:
• Investment Cast 316 Stainless Steel: The gold standard for saltwater marine environments due to maximum corrosion resistance. They are typically mirror-polished for an aesthetic finish.
• UV-Stabilized Nylon or ABS Plastic: A lightweight, cost-effective alternative frequently used on kayaks and smaller freshwater fishing boats.
• The Protective Cap & Liner:
• Features an internal heavy-duty rubber or PVC sleeve that cushions the rod handle against scratches and absorbs vibrations.
• The flip-up rubber cap seals the opening when the holder is not in use, keeping out rain, salt spray, and debris.
Installation and Hardware Requirements
1. Flange Dimensions: Most heavy-duty stainless steel models feature an oval top flange requiring a 2-inch (50.8mm) hole saw cut at the designated angle.
2. Fasteners: Usually requires three #12 countersunk flat-head screws or bolts (always use 316 stainless steel to avoid galvanic corrosion).
3. Sealing: Applying a marine-grade sealant like 3M Marine Adhesive Sealant 5200 or 4000 UV around the flange underside is highly recommended to ensure a completely watertight seal against the deck.
To help narrow down the exact specifications for your project, please let me know:
• Are you looking for the complete stainless steel assembly, lightweight nylon kayak options, or just individual replacement rubber caps?
• What angle (30°, 15°, or 90°) do you need for your boat's configuration?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
