Marine Grade 316 Stainless Steel Cross Tube Clamp (also known as a cross pipe connector or a longitudinal rail clamp). Unlike a permanent welded joint, this hardware is a two-piece split clamp designed to fix two overlapping or perpendicular pipes securely in place using heavy-duty structural bolts.

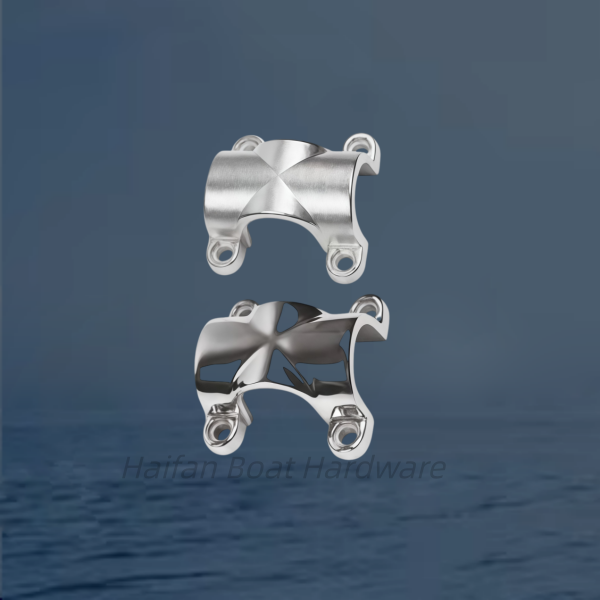

Multi-Finish Options

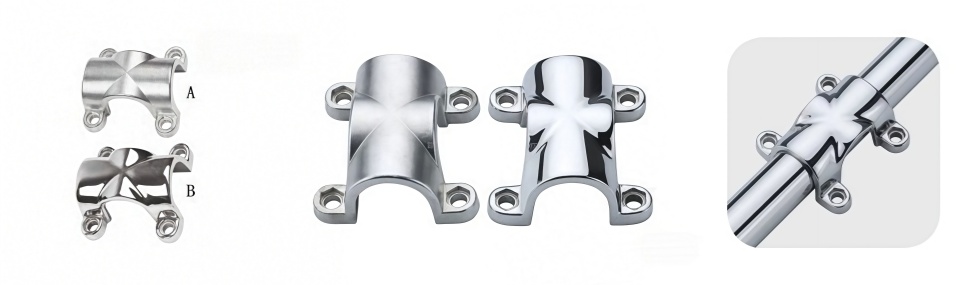

As labeled in the diagram, these structural clamps are manufactured in two distinct surface finish variants:
Option A (Satin/Electrolytic Polished): Features a brushed matte silver texture. This finish is preferred for utility zones or platforms where a clean, non-reflective, and low-maintenance texture is desired.
Option B (Mirror Polished): buffed to a highly reflective chrome-like sheen. This looks sleek on visible consumer yachts, bow rails, pool ladders, and luxury structural railings.

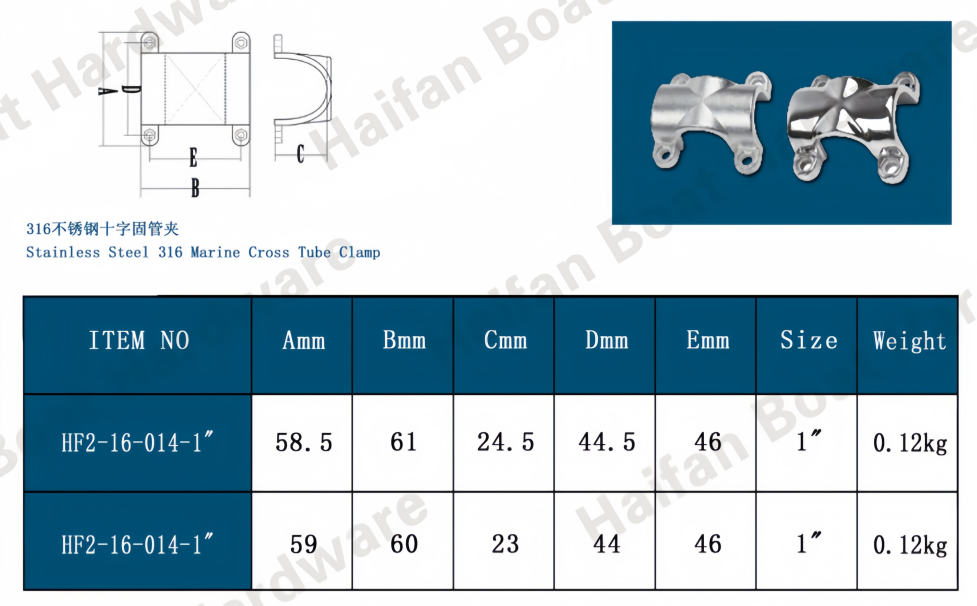

Product Sizing & Specifications
These clamps are standardized around the most common heavy-duty boat and guardrail pipe dimensions:
Standard Inner Diameter: Engineered mostly for 1-inch (25 mm) outer diameter (OD) tubes or 7/8-inch (22 mm) pipelines.
Fastener Points: Four distinct outer structural screw eyes configured to take Allen or hex-head marine locking bolts.
To ensure you get the right fitting components for your frame installation, tell us:
What exact tube outer diameter (OD) are you clamping onto (e.g., 22 mm, 25 mm, or 32 mm)?
Do you need assistance calculating the matching screw bolt thread pattern for these assemblies?
Are you planning to purchase these as single repair hardware pieces or sourcing them in large volume orders?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
