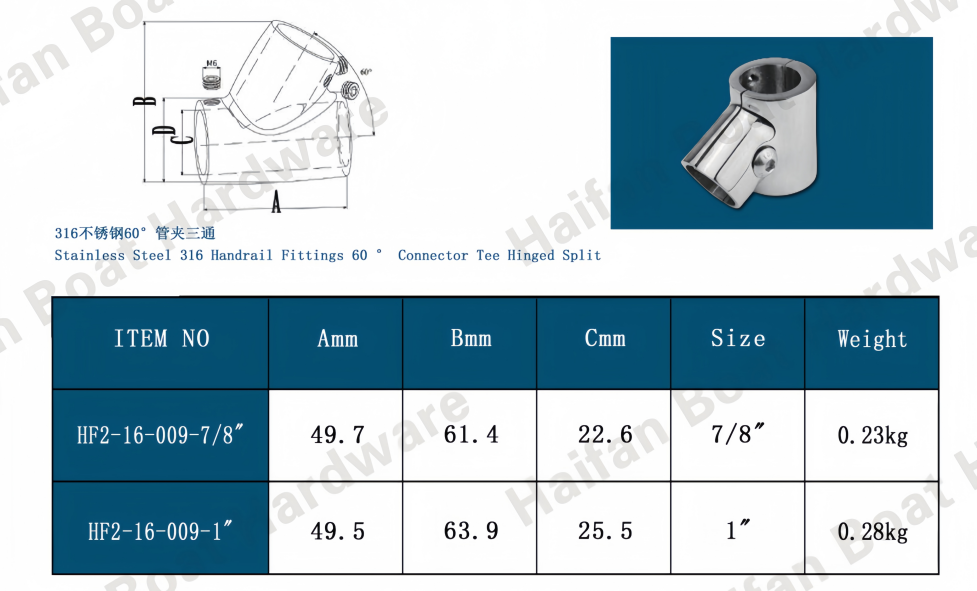

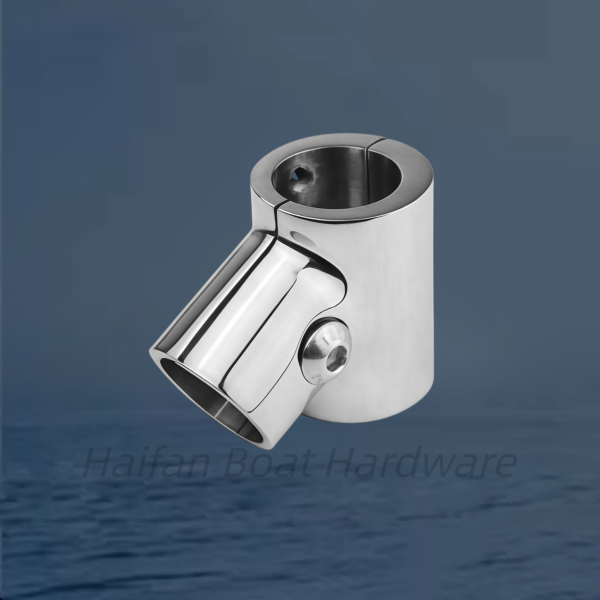

Marine 60-Degree Hinged Split Tee Rail Fitting (also widely called an Openable or Detachable Rail Tee).
Unlike standard solid slip-on tees, this component features a split-clamp / hinged mechanism along its vertical barrel. This clever engineering allows the fitting to open up completely, meaning it can be clamped anywhere directly onto an existing, pre-installed pipeline network without needing to tear down or slip off any other surrounding rail sections.
Product Details

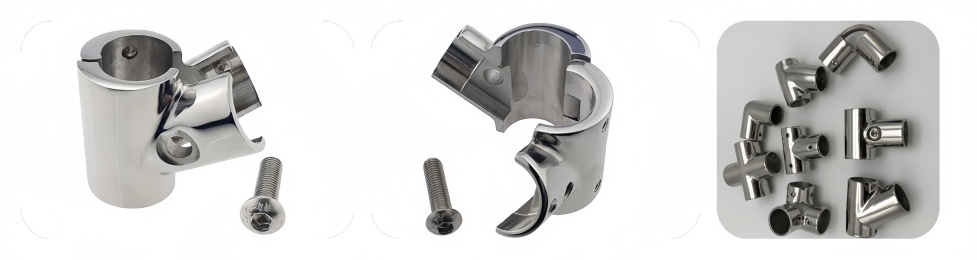

Hinged / Split Structure: One side of the vertical tube sleeve opens entirely on a hinge joint. You can simply clamp it over a continuous line, close the hatch, and lock it tight with the integrated side screw.
Angled 60° Y-Junction: The branching outlet extends outward at a 60-degree angle, making it ideal for diagonal support lines, angled rail terminations, and triangular bracing layouts.
Locking Configuration: Uses a combination of a main hinge assembly screw to secure the main barrel clamp, alongside internal set socket grub screws to hold the branching pipe locked solidly inside its sleeve.
Material Composition: Crafted from mirror-polished 316 (Marine-Grade) Stainless Steel. This composition provides maximum resistance to salt spray, pitting, and oxidation under grueling offshore conditions.
Common Uses
Bimini Top Modifications: Highly popular for mounting new canopy bracing legs or adding auxiliary hardware frames to an already assembled boat awning without unthreading the canopy fabric.
Guardrail Additions & Refits: Perfect for adding mid-level safety lines or reinforcement stanchions to boat pulpits when structural changes are needed post-factory assembly.
On-the-Fly DIY Assemblies: Frequently used to construct customizable industrial safety barriers, mobile clothing displays, or temporary market canopy frames where rapid assembly and tear-down are crucial.
Are you adding this hinged piece to an already existing rail setup, or using it for a new project?
If you tell me the outer diameter of your current metal tubes (22mm / 7/8" or 25mm / 1"), We can confirm the correct matching size you will need!
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular
application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
