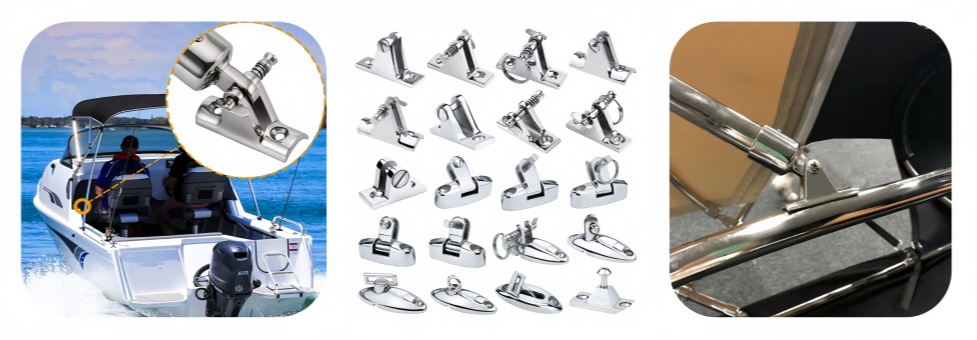

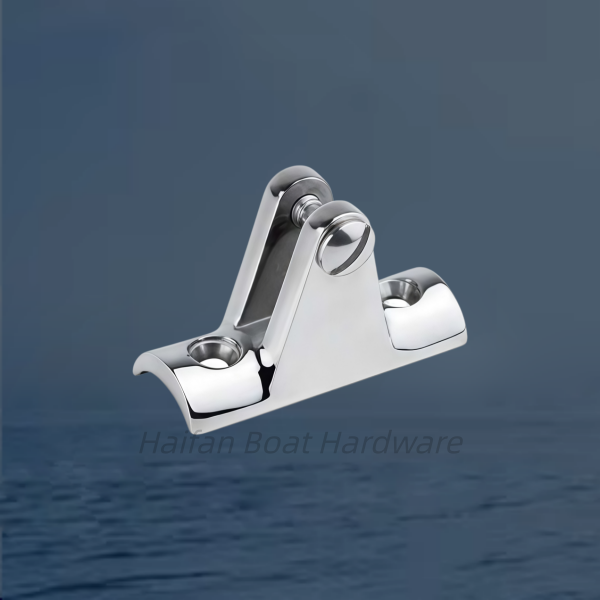

Concave Base Deck Hinge, a heavy-duty marine hardware piece precision-molded from marine-grade 316 stainless steel. It is specifically engineered to mount Bimini tops or canvas structures flush onto rounded handrails or curved boat stanchions without slipping.

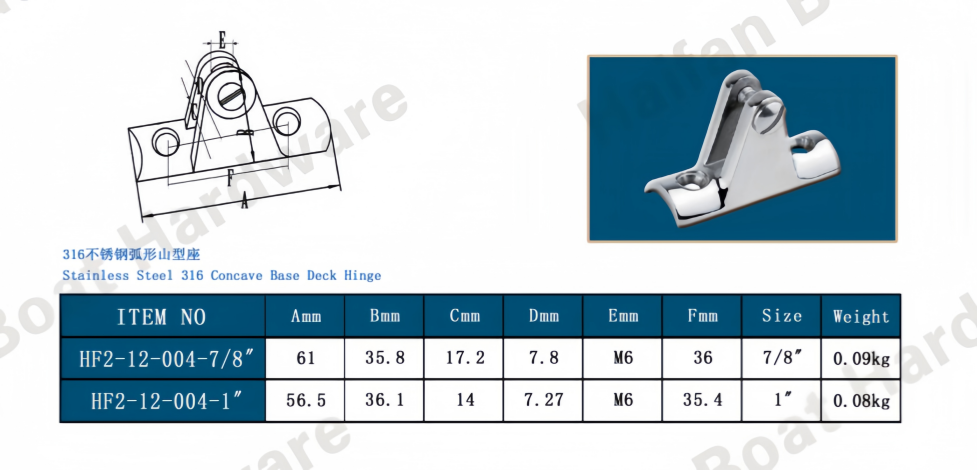

Hardware Specifications & Features
Material Composition: Investment-cast mirror-polished AISI 316 Stainless Steel for ultimate corrosion resistance.
Contoured Profile: The curved base is sculpted to hug standard marine tubing securely.
The 90-degree angled base provides optimal support and alignment, while the integrated screw pin ensures reliable fastening and stability.
Secure Attachment: Features dual countersunk mounting holes alongside a fixed 1/4"-20 threaded bolt assembly.
Are you planning to install this hinge on a 7/8" or a 1" diameter rail, and do you need any matching eye ends or backing pads to complete your canopy framework?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
