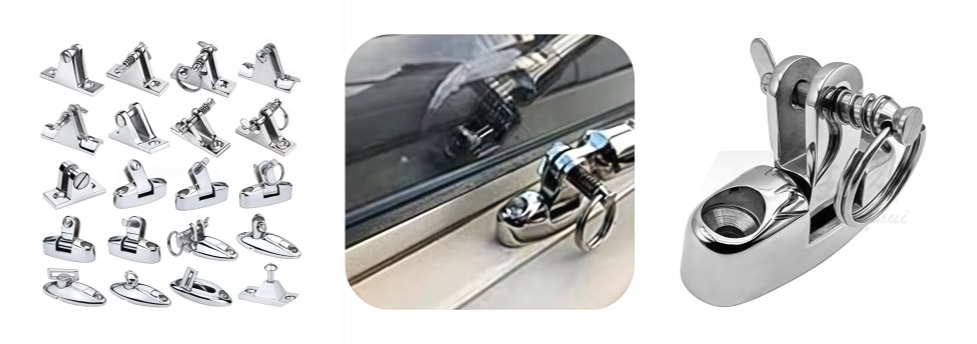

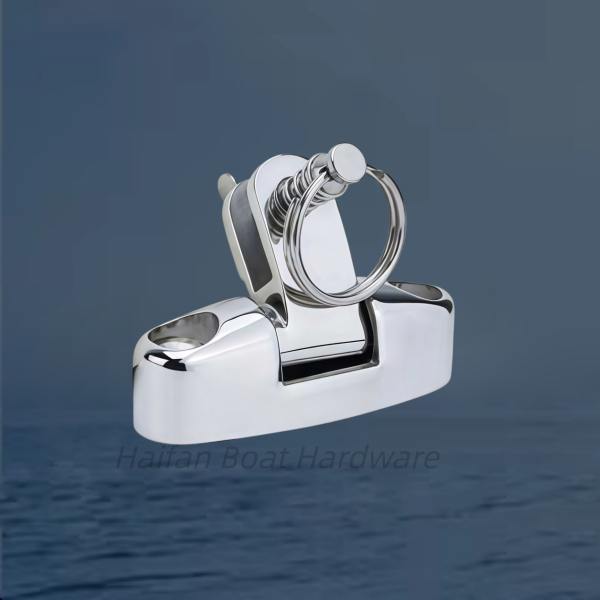

Mounted 180 Degree Rotating Swivel Deck Hinge with Removable Pin and Ring. Bimini top universal swivel deck hinge, featuring a 180-degree flexible rotation mechanisma and highly polished finish and an integrated removable quick-release detent pin with an attached split ring for fast canopy breakdown.
Key Product Details
Material: Investment-cast marine-grade 316 stainless steel, providing maximum corrosion protection against harsh saltwater environments.
Design & Functionality: It features a 180-degree flexible rotation mechanism that allows it to compensate for various surface angles. This makes it highly versatile for installation on flat decks, sloped gunwales, or vertical coamings.

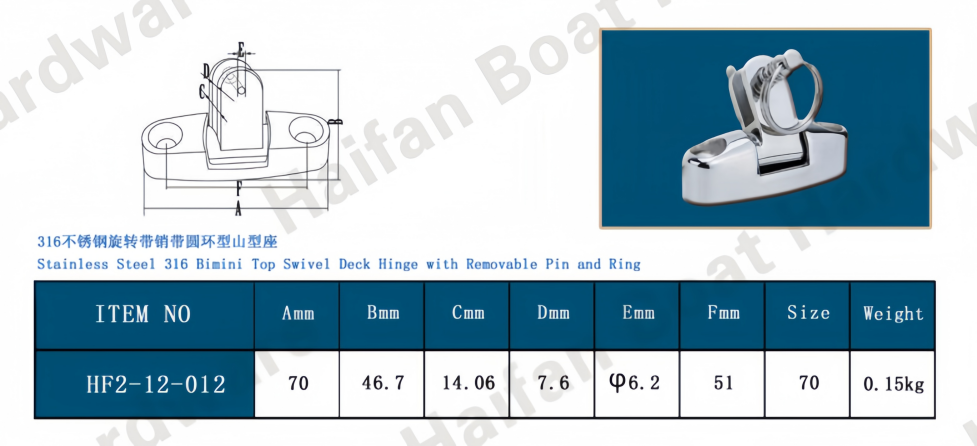

Dimensions: Typically measures roughly 2-3/4 inches (70mm) in length and 1-1/8 inches (25mm) in width, with standard 2-inch center-to-center mounting holes to accept standard #10 or #12 countersunk wood/machine screws.Quick-Release Mechanism: The spring-loaded detent pin allows boaters to instantly detach or collapse the Bimini top framework without needing any specialized tools.
Are you replacing a damaged hinge and need to confirm if the mounting hole spacing matches your existing setup, or are you looking for matching stainless steel eye ends to complete the installation?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
