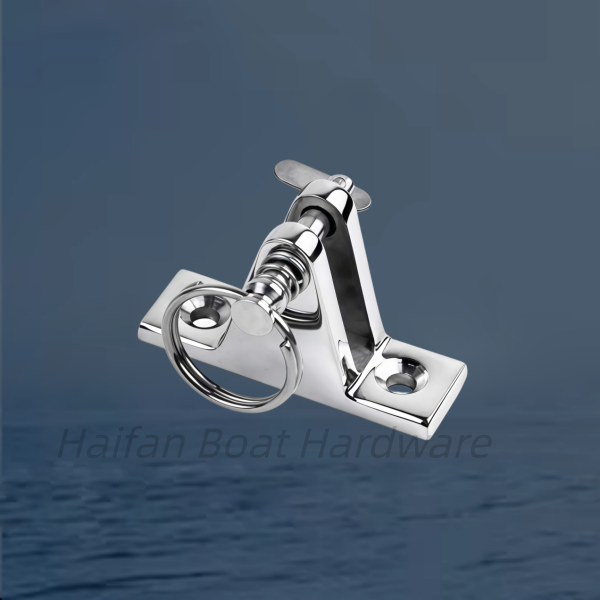

90-degree bimini top deck hinge with a spring-loaded quick-release pin, widely used for mounting marine canopies, sunshades, and sprayhoods on boats and yachts.
Key Specifications & Features
Material: Premium marine-grade 316 stainless steel featuring a mirror-polished finish for maximal rust and saltwater corrosion resistance.
Quick-Release System: Equipped with an integrated pull-ring and a spring-loaded locking pin, allowing you to attach or detach your bimini top without any tools.

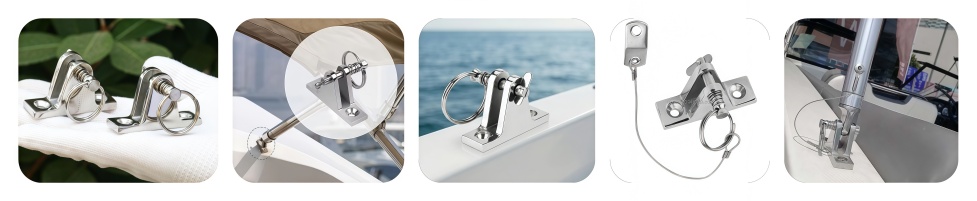

Flat Mount Design: Standard dual countersunk screw holes suitable for flush installation on deck gunwales or flat canoe/kayak surfaces.

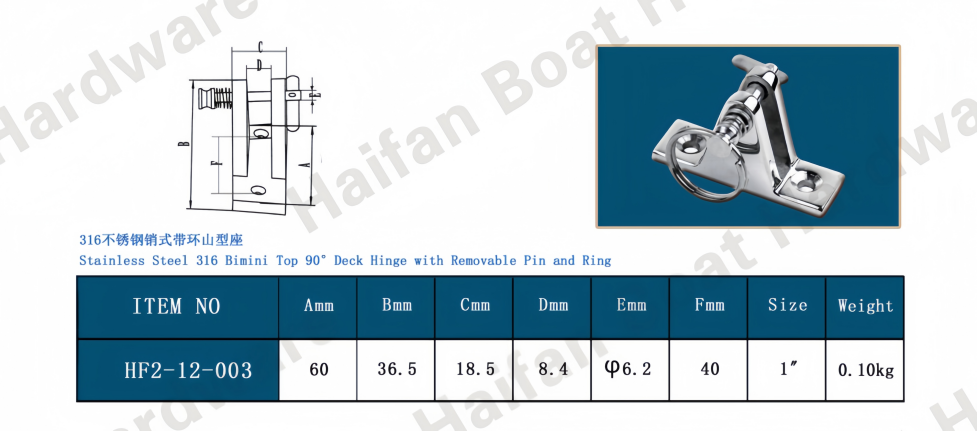

Standard Dimensions: Most variations feature a universal base size of approximately 60mm x 19mm (2.4" x 0.75") with a 40mm distance between the mounting holes.
If you are currently setting up or modifying a marine frame, please let us know:
What tubing diameter (e.g., 7/8" or 1") your top framework utilizes?
Whether you require alternative angled, side-mount, or rail-mount base shapes?
The specific fastener/screw types required for your hull composition?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
