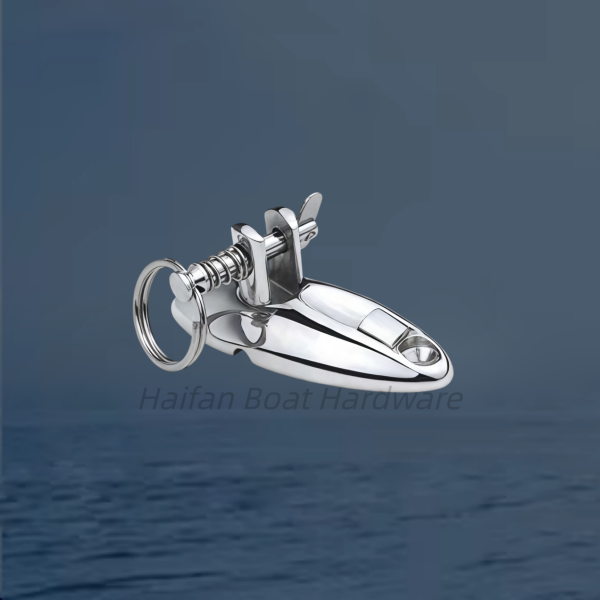

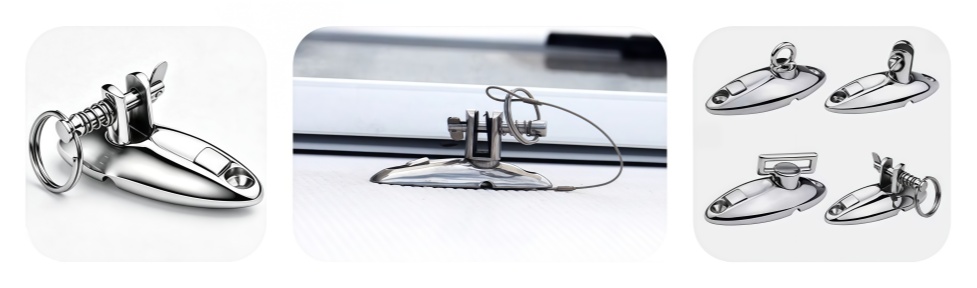

Bimini Top Swivel Deck Hinge with a Quick-Release Spring Pin Assembly, a hybrid variation of the premium push-button teardrop bases you looked at previously.
Hardware Features & Mechanics
Spring-Loaded Pin Mechanism: Instead of a flush slider or a loose detent pin, this model features an external spring-loaded pull pin permanently mounted parallel to the base axis.
Drop-Cam Retention Locking: The pin head features a flipping drop-cam tab at its far end. Pulling against the spring and twisting allows you to immediately release the center clevis bracket, while the split ring provides a secure grip for your fingers.
Universal Swivel Base: The central attachment post rotates fluidly inside its recessed socket. This design allows it to compensate for angled hulls, sloped gunwales, or vertical coaming walls while preventing stress fractures on your canvas framing poles.
Material: Investment-cast marine-grade 316 stainless steel, mirror-polished to prevent rust and pitting over years of exposure to harsh saltwater.
Would you like to get the exact screw-hole center measurements to see if this matches up with an existing footprint on your deck, or do you need help tracking down a matching eye-end cap for your aluminum canopy tubing?
