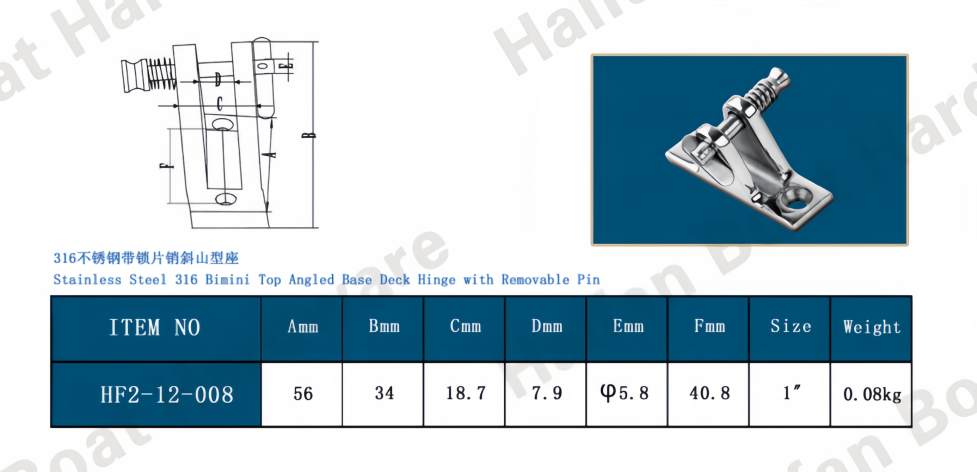

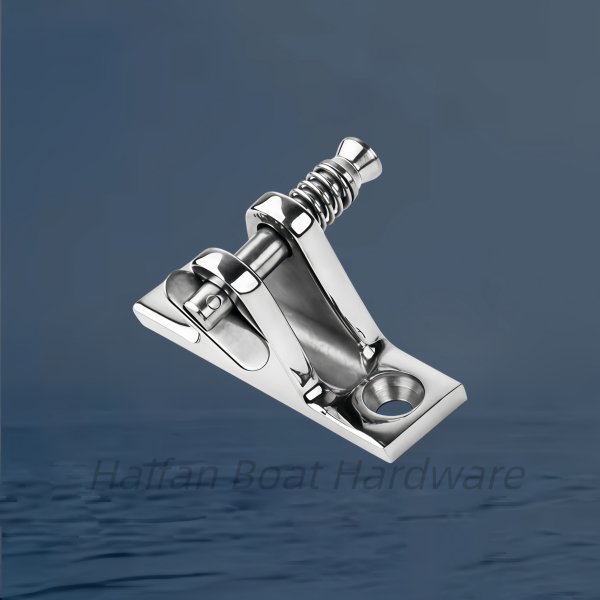

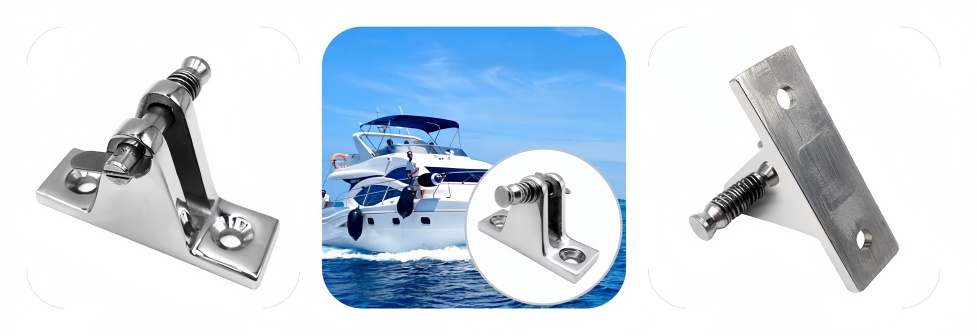

Flat-Bottomed Bimini Top Angled Base Deck Hinge featuring an integrated Spring-Loaded Quick Release Pin. While the previous response incorrectly identified it as concave, a closer inspection reveals a flat mounting footprint designed specifically for flat decks, gunwales, or coaming boards, with a 10-to-15-degree angle to offset sloped boat surfaces.
Key Structural Features
Flat Angled Base: Unlike a standard 90-degree flat hinge, this model features built-in angular slant legs. This ensures your Bimini frame stays straight and plumb even when mounted on angled surfaces or sloped hull sides.
Captive Spring Pin: You pull back the spring knob to slide the eye end in or out. The pin automatically snaps shut upon release, completely eliminating the risk of lost screws or detached split rings on the water.
Heavy Duty Casting: Made from investment-cast Grade 316 Stainless Steel, providing extreme corrosion protection against harsh salt air and saltwater environments.
Are you planning to install this onto a fiberglass deck or an aluminum boat gunwale?
If you tell me the brand of your boat or your existing canvas kit, We can help verify compatibility!
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
