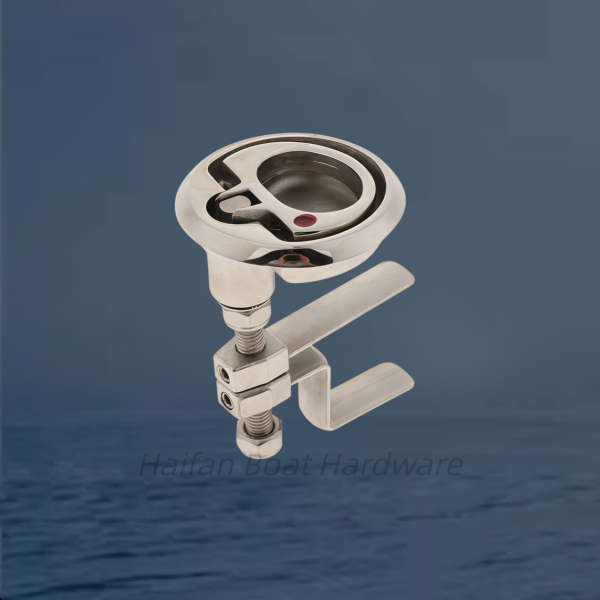

Round Marine Flush Cam Latch with a Turning Lift Handle. This specific model features a distinctive red dot indicator built onto the faceplate to quickly show whether the latch mechanism underneath is fully locked or open.
Unlike automatic spring-loaded slam latches, this is a compression cam style latch. You fold the D-ring handle up, rotate it to swing the offset cam arm under the deck lip, and fold the handle flat to clamp the hatch lid tightly closed.
Key Features & Design Layout
Material Composition: Precision-cast from 316 marine-grade stainless steel with a mirror-polished faceplate to combat aggressive saltwater rust and pitting.
Dual-Bracket Cam System: Designed with an adjustable dual-locking arm assembly. The dual hexagonal set-screws allow you to loosen and shift the cam bars up or down along the threaded center shaft to get the exact compression depth you need

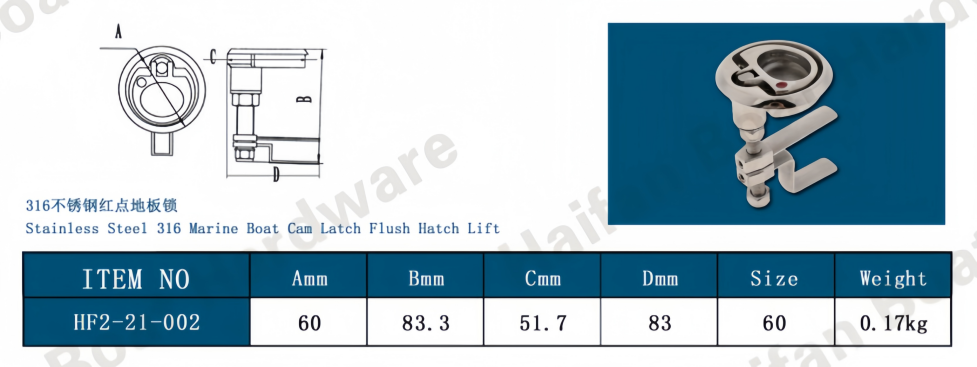

Standard Sizing Profile: Built with a standard 2-1/2" (64mm) Outer Diameter flange, engineered to fit directly into a standard 2-inch (51mm) round cutout hole.
Waterproof Protection: Operates with internal O-ring seals along the center stem to block water drainage into lower dry storage bays.
