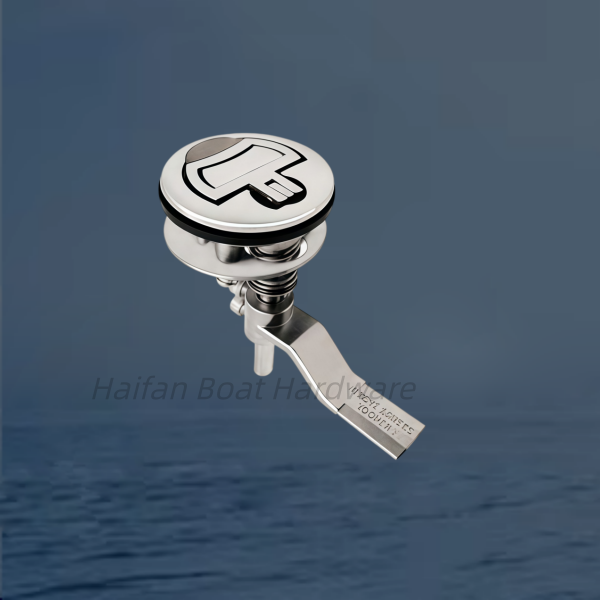

Cam Latch Flush Pull Deck Hatch D Lift Ring Handle,Stainless Steel Flush Pull Latch, which is widely used as a flush-mount cam latch and lift ring handle for boat deck hatches, livewells, cabinetry, and electrical enclosures. It features a distinct D-shaped lifting loop that lies completely flat inside the recessed circular faceplate when closed to prevent trip hazards and line snags.
Key Hardware Design Details
Material Composition: High-grade, electropolished 316 marine stainless steel, engineered to handle maximum exposure to saltwater rust and pitting.
Single Round-Hole Mounting: Installs quickly from the front of your panel through a clean, round cutout and fastens from the back using an included mounting bracket plate and spacer assembly.
Offset Cam Arm: Fitted with an angled, bent cam pawl bar stamped with technical positioning indicators ("PUNCHED ACTION TO CAM LINE") to ensure a tight compressional grip when twisted shut against the inner compartment framework.

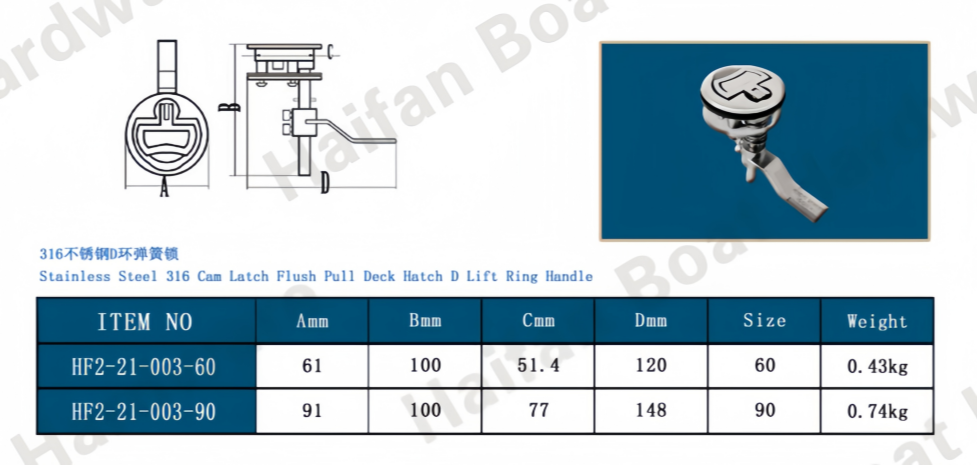

Standard Sizing Profile: This is part of Southco's Medium Size Series, featuring an overall outer diameter of 2.40" (61mm) designed to drop straight into a standard 2-inch (51mm) cutout hole.
If you are ordering a replacement or installing a new hatch, let us know:
What is your exact door/panel thickness? (Medium models typically support ranges between 2mm to 22mm depending on the bracket orientation).
Do you need a keyed-locking cylinder style to protect valuable rods or gear?
Are you looking for the version with an internal spring-loaded pull to completely mute engine vibrations and rattling?
We can provide the exact part number or installation depth spec sheets you need!
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
