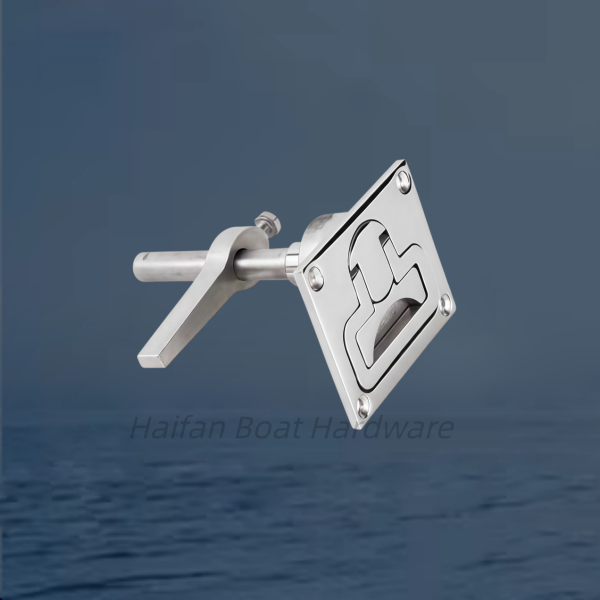

Marine Hatch Latches Flush Turning Lock Lift Handle, Marine Flush Cam Latch and Turning Lift Handle. The Marine Flush Cam Latch and Turning Lift Handle is a specialized, low-profile mechanism used to tightly lock down heavy boat deck compartments.
Core Components & Mechanics
T-Handle Lift Ring: Pulls up from the rectangular faceplate so you can twist the main shaft.
Adjustable Hinge Cam Arm: Located on the back of the shaft, this offset bar rotates underneath your deck lip or frame.
Height Adjustment Set Screw: An adjustable screw on the cam arm lets you change its height up or down along the shaft. This allows you to create a tight, custom seal that matches the exact thickness of your deck hatch and stops rattle.
Sizing and Installation Notes

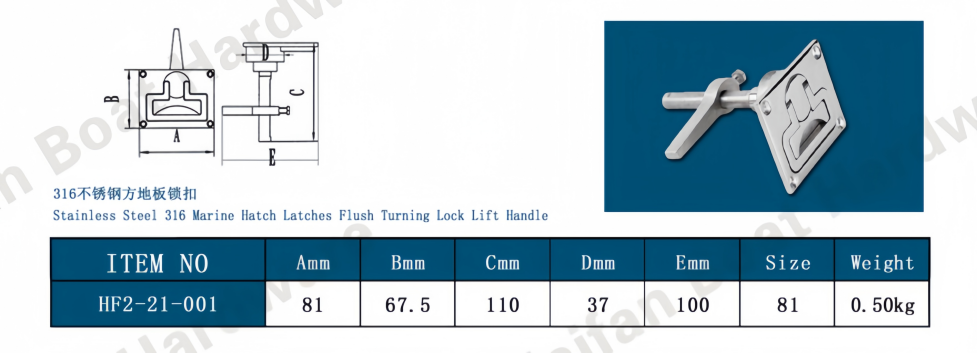

Faceplate Dimensions: Standard models usually measure 3-1/8" x 2-11/16", while larger heavy-duty configurations measure 3-3/4" x 3".
Mounting Holes: The plate includes 4 countersunk screw holes at the corners to make sure the mounting fasteners sit entirely flush with the metal surface.
If you are modifying or replacing this lock on your boat, let us know:
What is the thickness of your deck hatch lid?
Are you aiming to match an existing screw layout pattern?
Would you prefer a version equipped with a keyed locking cylinder for extra gear security?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
