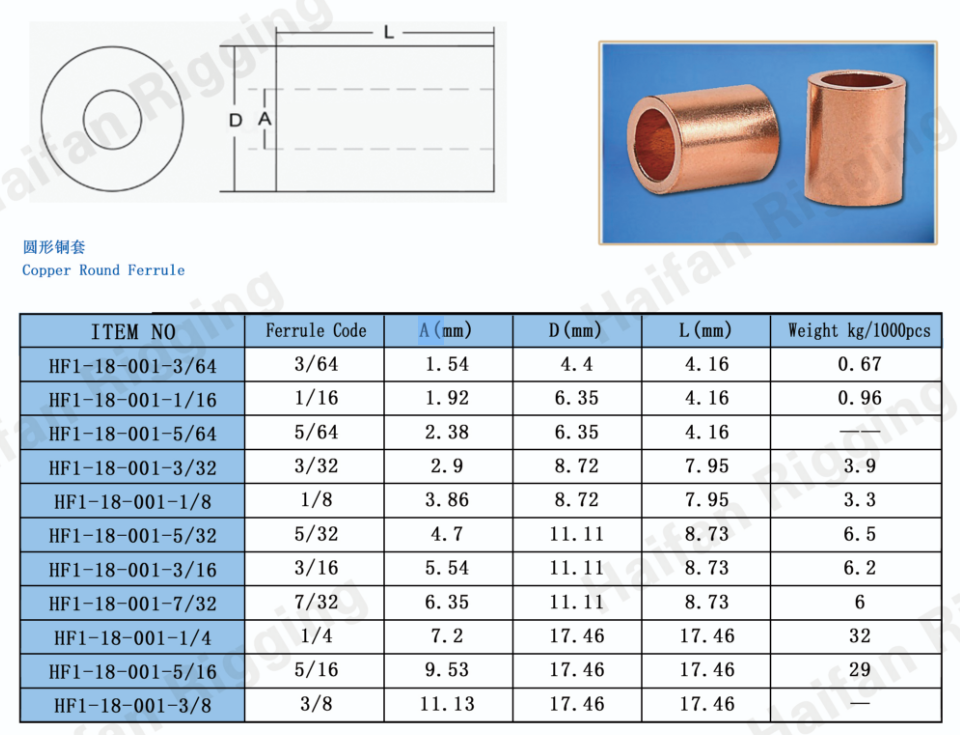

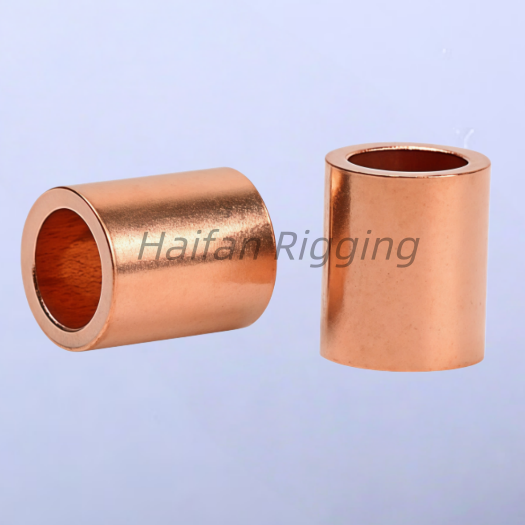

Round Copper Ferrules
A copper round ferrule is a cylindrical metal sleeve used primarily to terminate, cap, or reinforce the ends of wire ropes or electrical wires. Depending on your project, they fall into two entirely distinct categories: rigging hardware (wire rope end stops) or electrical wiring (wire crimp terminals).

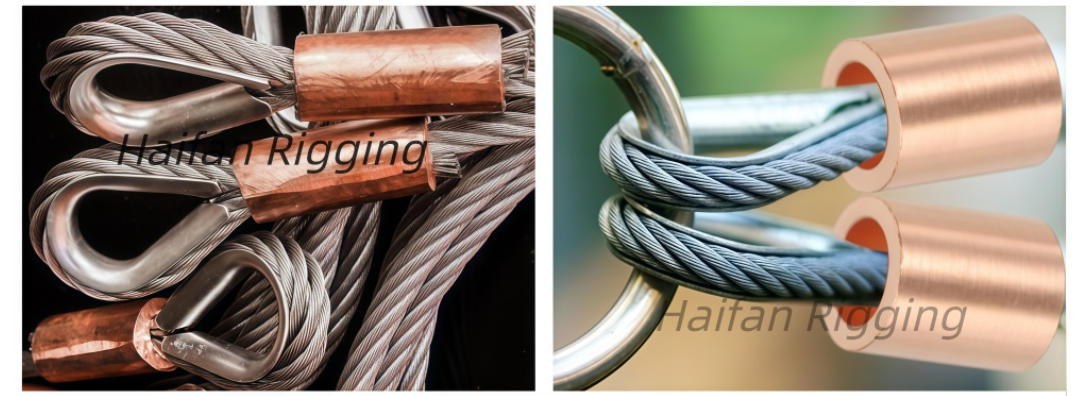

1. Wire Rope & Rigging Ferrules (End Stops)
In rigging, round copper ferrules are known as button stops or end stops. They are swaged onto steel cables to create a permanent stop point.
Anti-Corrosion: Pure copper prevents galvanic corrosion when paired with stainless steel wire ropes in marine or outdoor settings.
Seamless Extrusion: High-quality varieties, like the Talurit RCU End Stop, are seamlessly extruded over mandrels for uniform strength.
Holding Strength: These are strictly for non-lifting applications; they typically hold roughly 50% of the wire rope's minimum breaking load.
Installation: They require a specialized hydraulic or manual compression tool to squeeze the round cylinder into a tight, permanent hold.
2. Electrical Wire Ferrules (Crimp Terminals)
In electronics and power distribution, these are soft, tinned-copper tubes crimped onto the end of stripped, multi-strand wires.
Fray Protection: They gather scattered core strands together, preventing stray wires from causing dangerous short circuits.
High Conductivity: Usually made of 99.9% pure red copper and coated in matte tin plating to resist oxidation.
Optimal Contact: Crimping a ferrule expands the contact surface area inside terminal blocks, decreasing resistance and heat generation.
Shaping: While the uninsulated metal sleeves start completely round, your choice of crimping tool determines if they finish as a square (ideal for block terminals) or a hexagon (ideal for round holes).
If you are trying to source or size these components, let us know:
Are you using these for electrical wiring or steel cable rigging?
What wire gauge (AWG) or cable diameter do you need to fit?
Do you require insulated sleeves or bare, non-insulated metal?
We can pinpoint the exact sizing charts or tools you will need for your setup.
