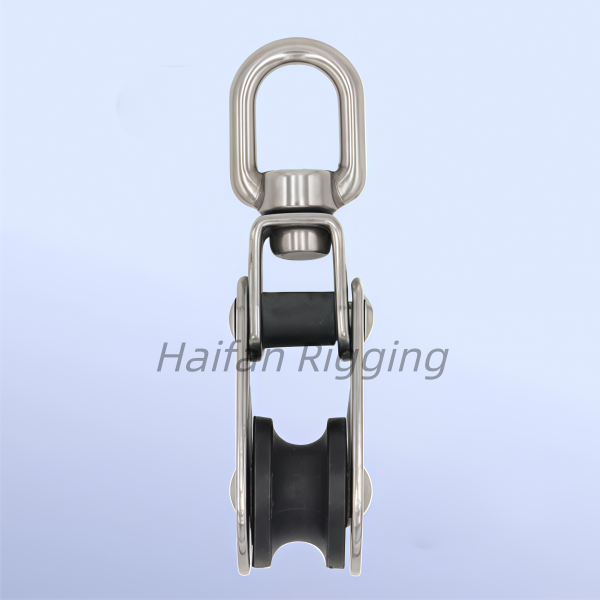

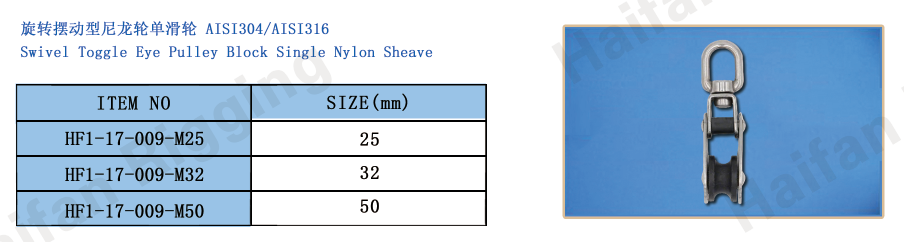

Swivel Toggle Eye Pulley Block Single Nylon Sheave.
A Swivel Toggle Eye Single Nylon Sheave Pulley Block is a specialized rigging device engineered for lightweight, low-friction, and multi-directional line handling.By combining a 360-degree rotating swivel, a pivoting toggle hinge, and a single self-lubricating nylon wheel, this pulley can tilt and rotate dynamically to align perfectly with shifting loads. This setup effectively eliminates side-loading stress and prevents rope twisting. The nylon sheave protects delicate synthetic or fiber lines from tearing or wearing down.
Why Choose a Nylon Sheave Over Metal?
Soft Rope Protection: Smooth nylon features zero sharp or abrasive edges, ensuring synthetic or natural fiber lines (like nylon, polyester, or hemp) will not fray, cut, or experience premature wear.
Ultra-Quiet Operation: The polymer absorbs vibrations and sound, removing the metallic grinding or squeaking common with steel-on-steel pulleys.
Corrosion Resistance: Unlike steel wheels, a nylon sheave will never rust, seize up, or corrode when exposed to harsh outdoor weather or marine salt spray.
Main Industry Applications:
Sailboat & Marine Rigging: Used extensively for small sailboat halyards, control lines, and sheets where weight reduction and smooth line-handling are essential.
Flagpoles & Outdoor Displays: Positioned at the peak of flagpoles to route halyard ropes silently and smoothly without clanging against the aluminum mast.
Agricultural Winching Systems: Extensively used in automated farming setups to tension and winch livestock feeders, drinkers, and greenhouse ventilation curtains.
Theater & Stage Rigging: Ideal for low-profile, noise-sensitive stage cues, curtains, and backdrop line adjustments.
To help narrow down the exact part number for your build, please specify:
What rope or cord diameter are you running through the system?What is the total weight or tension (WLL) of the load?
Do you require a removable snatch pin to insert the rope mid-line without feeding it from the end?
