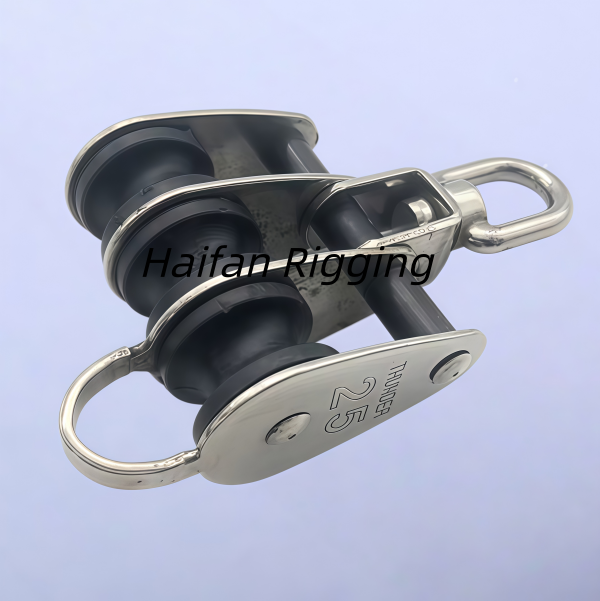

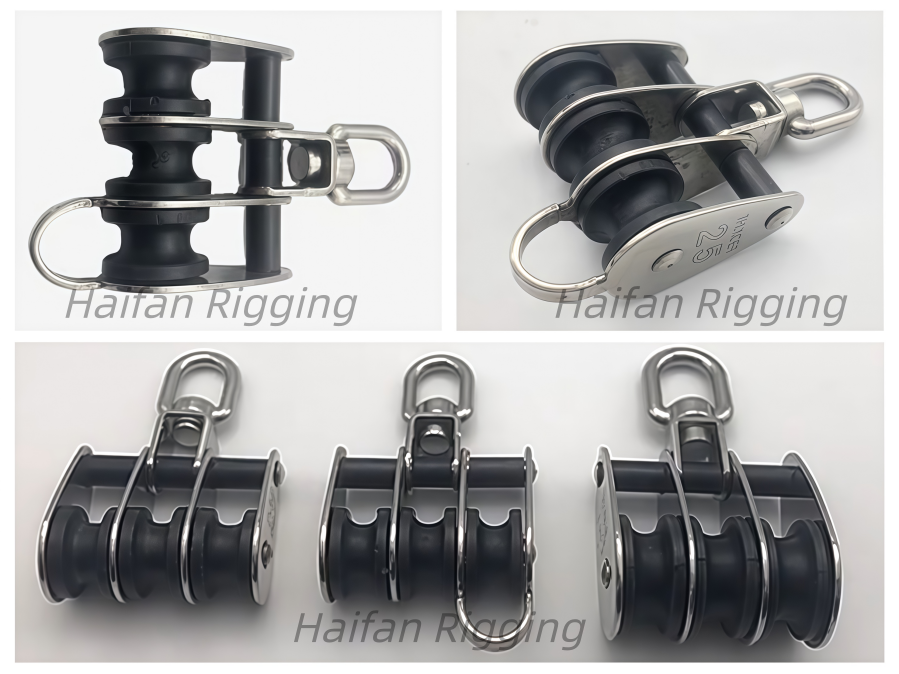

Triple Pulley Nylon Wheel Block Pulley with Swivel Head and Bottom Loop.
Marine Rope Triple Pulley Nylon Wheel Block Pulley with Swivel Head and Bottom Loop. It is very similar to the previous pulley, but it features a critical design difference: the small extra loop at the bottom.
Key Features:
Becket: The separate metal loop hanging from the bottom plate. This provides a secure anchor point where you can tie off the end of your rope to complete the pulley circuit.
Triple Sheaves: Three separate black nylon wheels (sheaves) allow multiple lines or passes to run through the block.
Swivel Top: The upper loop rotates 360 degrees to prevent the line from twisting and tangling under heavy load.
Material: The frame and brackets are made from durable marine-grade stainless steel to resist rust and corrosion in harsh outdoor environments.
How It Works:
This block is specifically designed to be the "top" or "bottom" anchor in a 4:1 mechanical advantage block and tackle system (often called a fiddle or tackle system). The rope is tied permanently to the becket at the bottom.The rope travels down to a matching pulley, loops around a wheel, and comes back up to this block. It weaves back and forth through the remaining sheaves to compound your pulling power fourfold.
Common Uses:
Sailing: Used for mainsheet systems, boom vangs, and traveler lines.
Off-Roading & Boating: Used in small crane setups, davits for lifting dinghies, or hoisting cargo.
