Swivel Eye Single Pulley

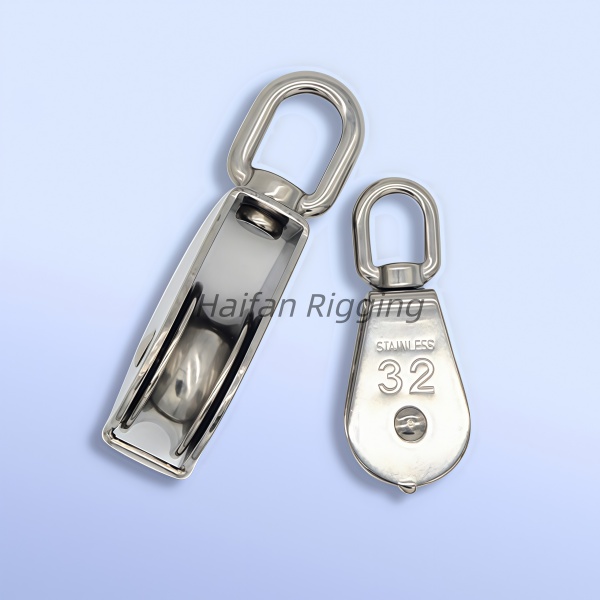

These are stainless steel single pulley blocks (specifically the M32 model as indicated by the "32" stamped on the casing).
They are heavy-duty, marine-grade rigging tools designed to guide or lift heavy loads using ropes or cables.
Core Anatomy
Swivel Eye Loop: The top attachment ring rotates a full 360 degrees. This prevents the connected ropes or lines from twisting or knotting during use.
Sheave (Internal Wheel): The inner rotating wheel that allows a rope, wire, or cord to glide smoothly through the housing.
Casing Protection: The teardrop-shaped shroud protects the wheel assembly and keeps the rope securely aligned on the track.
The "32" Stamping: This designates the sheave diameter—32 millimeters (approximately 1-1/4 inches).
Pulleys of this specific size are generally rated to support a maximum working load limit of up to 550 lbs (250 kg).
Common Applications
Marine & Sailing Rigging: Used on sailboats, docks, and kayaks to run halyards, anchor lines, or control sheets due to their high rust resistance in saltwater.
Lifting & Hoisting Systems: Incorporated into mechanical block-and-tackle setups for garages, workshops, or gyms to lift deer/game, bikes, or equipment.
General Tensioning: Used to string up heavy shade sails, laundry lines, or architectural guy wires.
If you are planning a specific rigging setup, please share what rope thickness or maximum load weight you intend to use so we can confirm if this size suits your needs.
Come and order your Swivel Eye Single Pulley.
To place an order,just fill in a rapid online form here.but please do ask us if you need anything custom-made.
If you wish to ask a question or need further advice,you are welcome to contact us.
We'll be happy to help.
We look forward to hearing from you!
