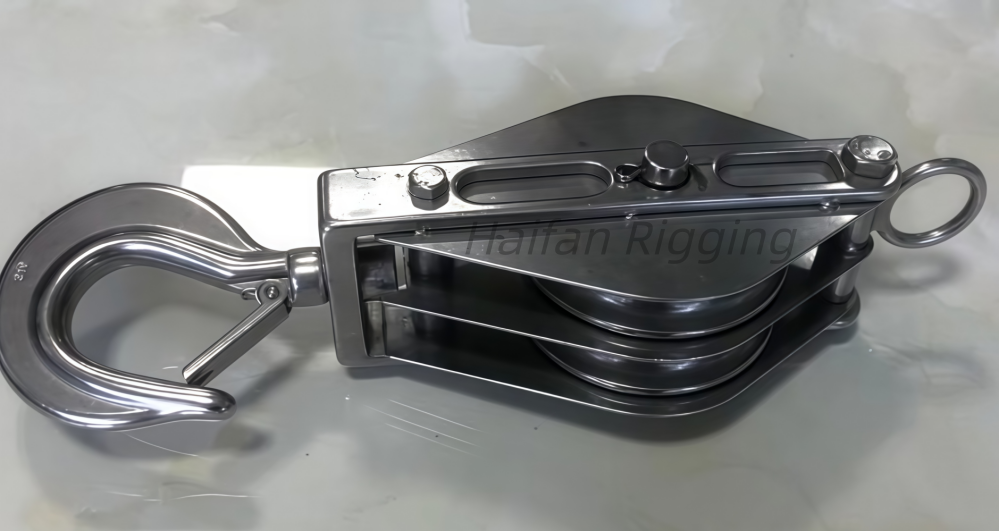

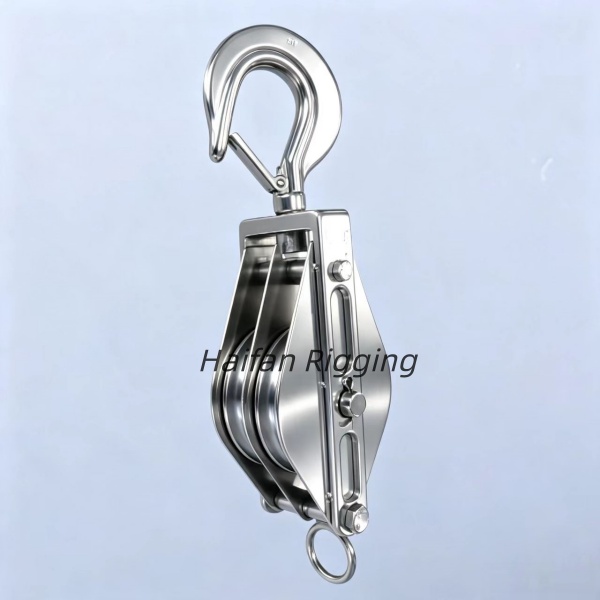

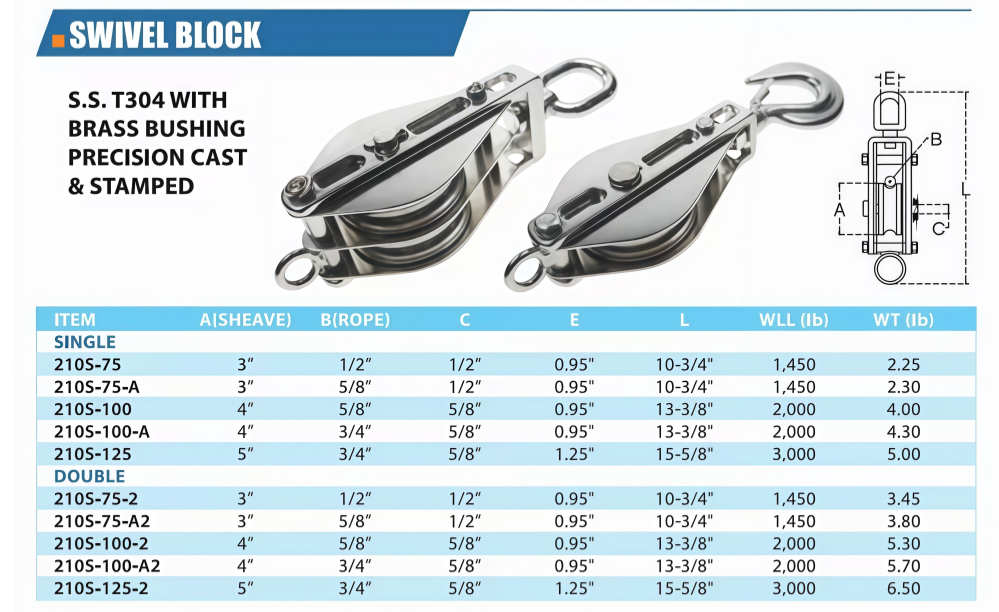

Double Sheave Snatch Block with a Swivel Hook and Becket. commonly used in rigging, lifting, and marine operations.
Key Features
Double Sheave: The assembly houses two independent tracking wheels (sheaves) positioned side by side, allowing multiple lines or a single line to be wrapped multiple times to create a mechanical advantage.
Swivel Hook with Safety Latch: The heavy-duty hook at the top rotates completely around to prevent the wire rope or chain from twisting and tangling during lifting maneuvers. It features a spring-loaded latch to keep it securely attached to load anchors.
Becket Eye: The small ring at the very bottom provides a fixed anchoring point to tie off the dead-end of a rope, which is necessary for setting up a block and tackle system.
Stainless Steel Body: Typically constructed out of durable Grade 304 or 316 stainless steel to ensure maximum resistance to corrosion and weathering, making it suitable for marine or harsh industrial environments.
If you are trying to utilize or source a replacement part for this hardware, could you specify:
The approximate wheel diameter or total length of the block?
The thickness of the rope/cable you plan to run through it?
The maximum load capacity (Working Load Limit) you require for your setup?
Haifan Rigging supply a range of blocks and pulleys.They come with a variety of fittings for each end to suit your particular application.
If you wish to ask a question or need further advice, you are welcome to contact us.
We’ll be happy to help.
We look forward to hearing from you!
