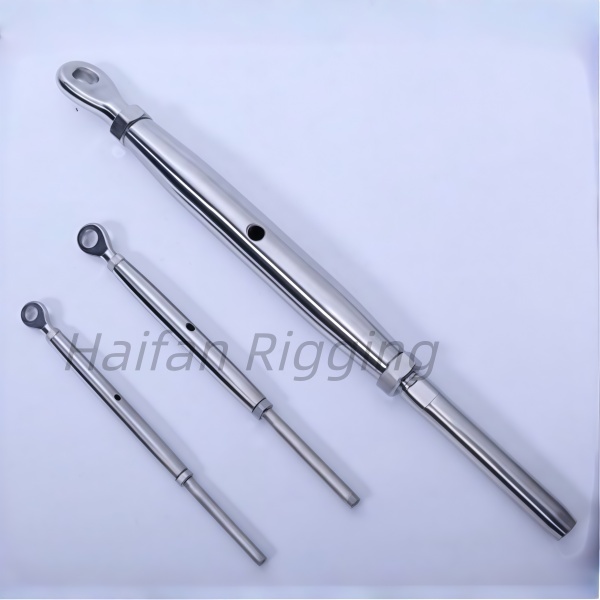

Rigging Screw Turnbuckle with Eye&Swage Stud

Rigging Screw Stainless Steel Closed Body Turnbuckle with Eye&Swage Stud Bottle Screw Turnbuckle

What are Rigging Screws and Turnbuckles ?

Rigging screws and turnbuckles are sometimes referred to as a wire rope tensioner, bottle screws,barrel strainers or straining screws and are a special type of fitting which are used to enable the tensioning of wire ropes. Once fitted the tension of the rope can easily be adjusted whenever you need to, whether it is to tighten or loosen the rope. All that is needed is to turn the main body or barrel. They are commonly used in rigging applications and anywhere that the wire will need tightening to a unique rigidity to fit its objective, for example, bridges, balustrades, staircases and hanging shelves.They are often utilised for use as barriers (instead of fencing) to avoid access to certain areas or as a safety barrier. For example they are used on castle ramparts to allow the public to be able to walk around them safely, yet they do not intrude too much on the original nature of the buildings. Rigging Screws have the closed barrel type center and so look more aesthetically pleasing whilst Turnbuckles have an open body/center piece which turns around the visible screws. The definition of a turnbuckle is type of coupling which possesses internal screws that are used to connect two wires or rods, end to end in order to adjust the tension.

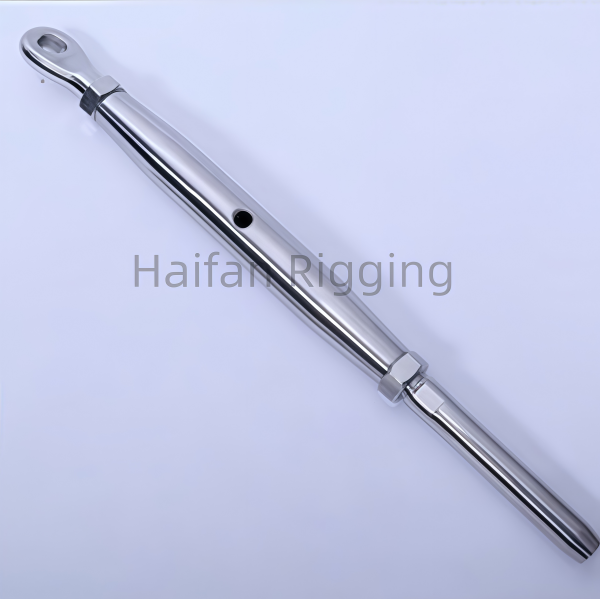

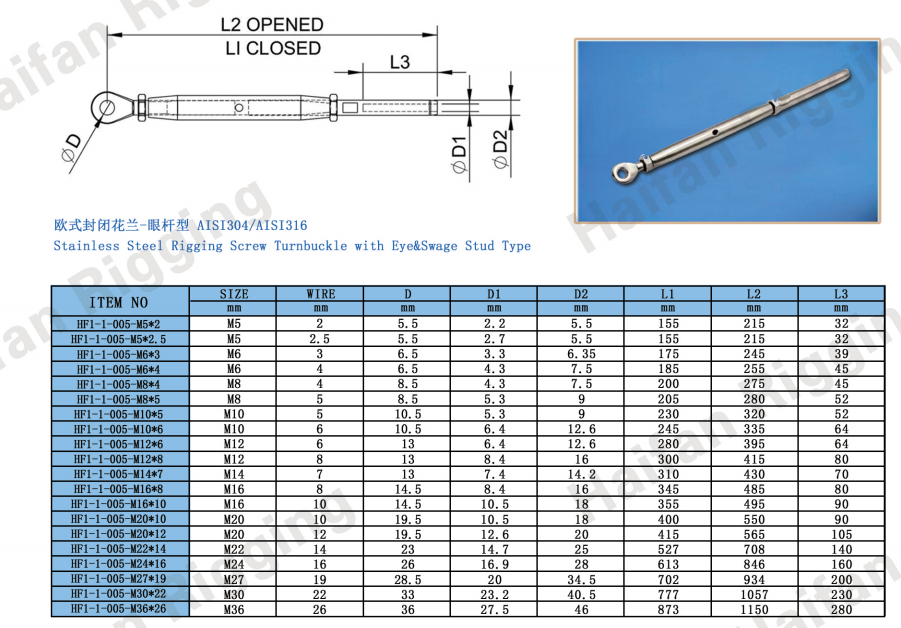

This dual sided rigging screw incorporates a swage stud fitting at one end and a closed eye at the other, therefore different anchoring points and attachment fittings can be used. The opposite ends are threaded differently so that a simple turn of the centre barrel will increase or decrease the length in tandem. (depending on which way you turn the barrel).

The overall design of these rigging screws means they are ideal for professional rigging applications. They have a better looking finish when compared to open turnbuckle tensioners. For this reason they are often used for tensioning wire rope in balustrade systems, in gardens, on decking of for any other type of rope barrier, where aesthetics is important.

Come and order your Rigging Screw Turnbuckle with Eye and Swage Stud..

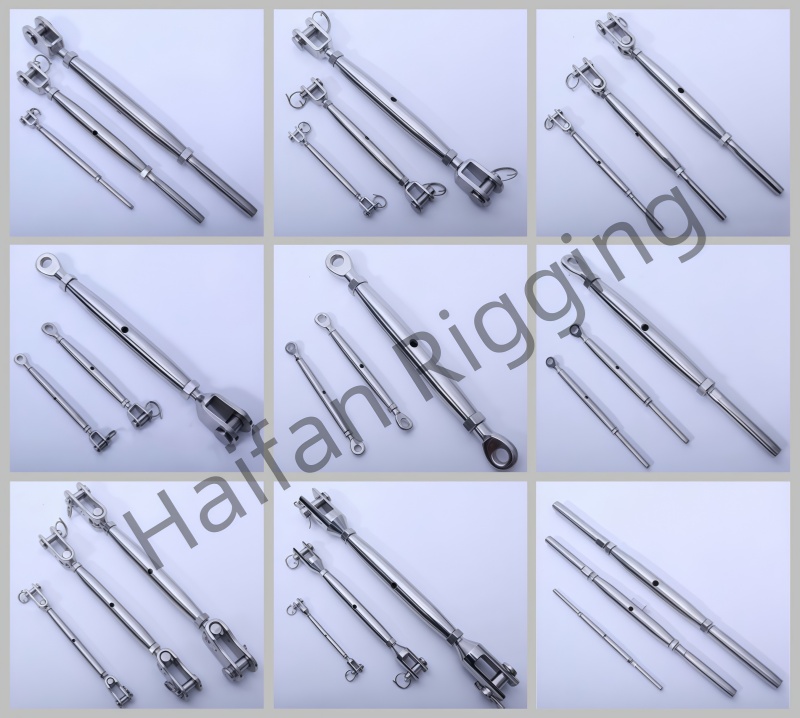

Haifan Rigging supply a range of rigging screws and turnbuckles. They come with a variety of fittings for each end to suit your particular application, eye such as eye and eye, eye and hook,hook and hook, jaw and jaw, hook and jaw, etc. Some rigging screws are fitted with locking nuts/barrel strainers to ensure that there is no unwanted loosening of the rope.

To put in your order, just fill out our short inquiry form here, but please do ask us if you need anything custom-made.

If you wish to ask a question or need further advice, you are welcome to contact us. We’ll be happy to help.

We look forward to hearing from you!
