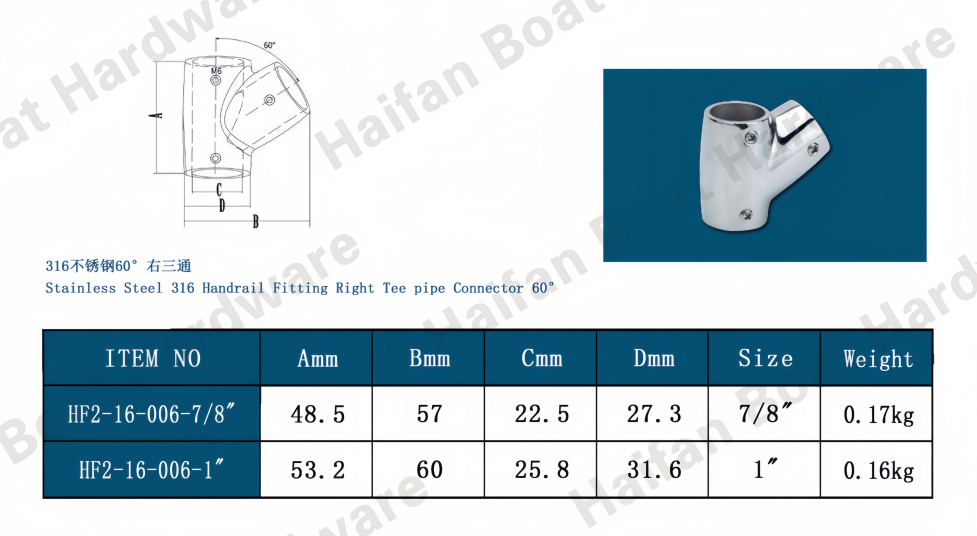

60-Degree Right-Hand Tee Handrail Fitting. It is similar to the standard 60-degree tee, but it is specifically designed with a directional orientation to serve as a right-hand structural node on a rail setup.
Product Details
Directional Orientation (Right-Hand): Unlike universal centered tees, this fitting is specifically labeled and cast as a Right (RH) variant. When installed on a boat's bow pulpit or a staircase, it angles outward symmetrically to match its "Left-Hand" counterpart on the opposite side.
Connection Style: The vertical main barrel acts as a sleeve that slides down over a vertical stanchion post, while the 60-degree angled branch extends outward to hold a diagonal support rail.
Tightening Mechanism: It features multiple built-in set screw holes equipped with hex socket grub screws to securely clamp all connected pipe ends.
Material: Formed from 316 Marine-Grade Stainless Steel with a mirror-polished finish for extreme rust and corrosion resistance in harsh, wet environments.
Common Uses
Boat Bow Pulpits & Lifelines: Installed specifically on the right (starboard) forward side of boats and yachts to secure angled safety guard rails.
Slanted Guardrails: Used in industrial safety lanes or residential stair systems where vertical posts require structural reinforcement from a 60° bracing tube.
Are you purchasing this to replace an existing marine fitting, or are you building a custom handrail system? If you provide your pipe's outer diameter (7/8" / 22mm or 1" / 25mm), we can confirm the exact product dimensions you need.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
