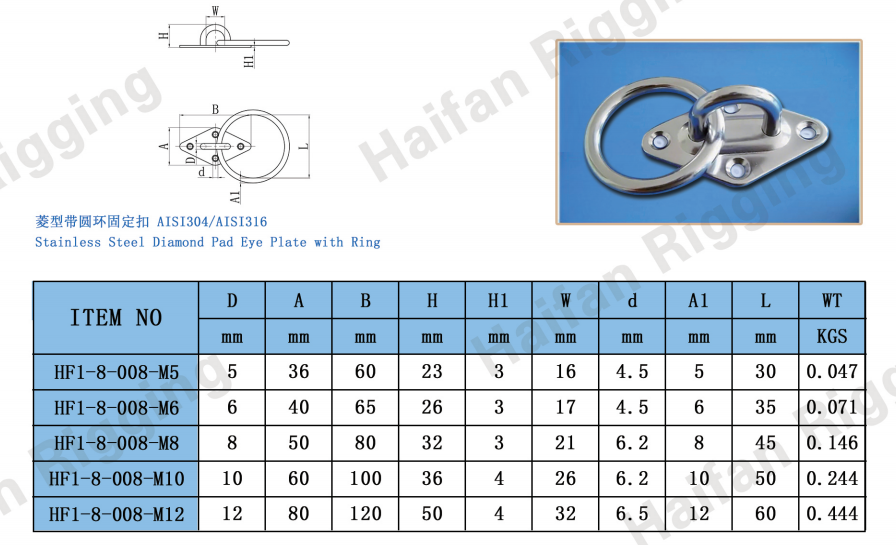

Diamond Base Pad Eye Plate With Ring, Stainless Steel Diamond Eye Pad Plate with Ring

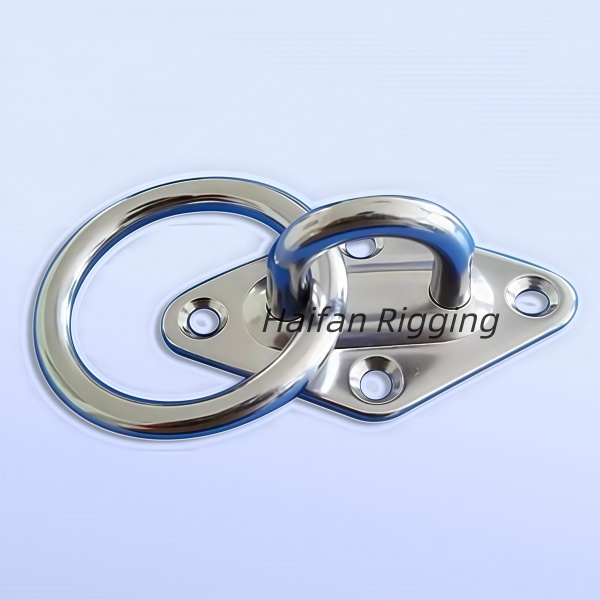

A diamond pad eye plate with ring is a heavy-duty anchor fixture consisting of a flat, diamond-shaped base plate, a fixed central U-shaped loop (the eye), and a loose, free-swinging metal ring running through that loop.
This hardware combines the space-saving, 4-hole security of a diamond-shaped base with the articulating flexibility of a loose ring. The ring rotates and pivots freely, allowing attached ropes, hooks, or straps to pull smoothly from any direction without causing twisting stress on the plate or its fasteners.
Key Features
4-Hole Diamond Layout: The mounting holes are positioned at the four points of the diamond. This layout provides multi-screw security against heavy loads while keeping a narrower profile that fits perfectly along narrow posts or studs.
Articulating Ring Flexibility: The loose ring automatically aligns itself with the direction of the pulling force. If a load shifts, sways, or vibrates, the ring absorbs the movement, completely preventing the levering force from stripping the screws out of the wall.
Marine-Grade Metallurgy: These components are typically forged or cast from polished 304 or 316 marine-grade stainless steel to guarantee complete rust and corrosion resistance in outdoor, wet, or coastal environments.
Common Applications
The combination of a streamlined base and fluid ring movement makes this hardware highly popular for structural and dynamic rigging:
Sun Shade Sails: Widely used as the primary wall or post anchors to tension outdoor shade sails, allowing the corners to pivot naturally when subjected to heavy winds.
Marine & Boat Decks: Bolted to narrow gunwales, cabins, or decks to secure dynamic lines, heavy vessel fenders, and tie-down gear that move constantly with the water.
Home & Gym Rigging: Screwed into overhead ceiling joists or wall studs to hang swinging equipment like hammocks, porch swings, boxing heavy bags, or fitness suspension straps.
Why not order your diamond base eye pad plate with ring from us.
From our warehouse, we are pleased to offer a great selection of diamond base pad eyes all under one roof.
To send us your order,simply fill out a rapid inquiry form here. For further information or to ask any questions, please contact us.
