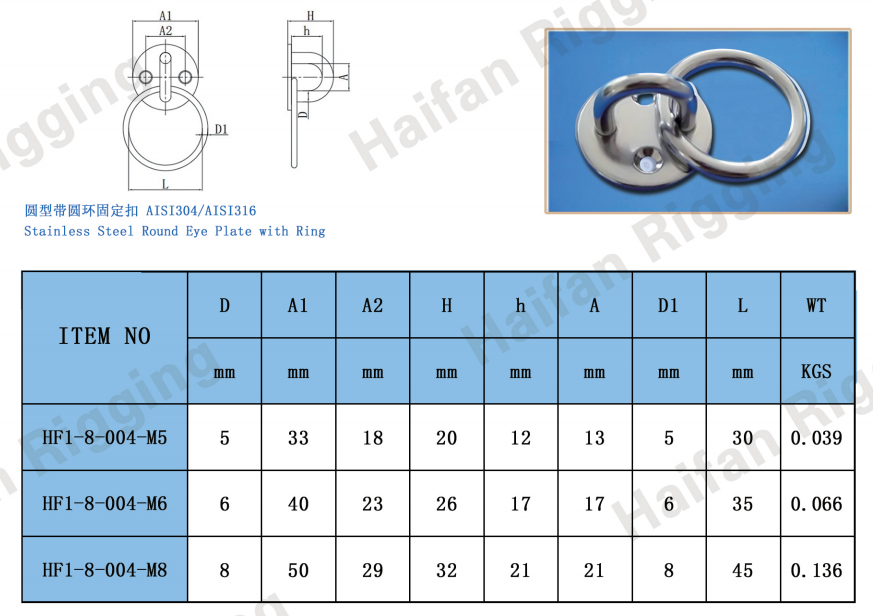

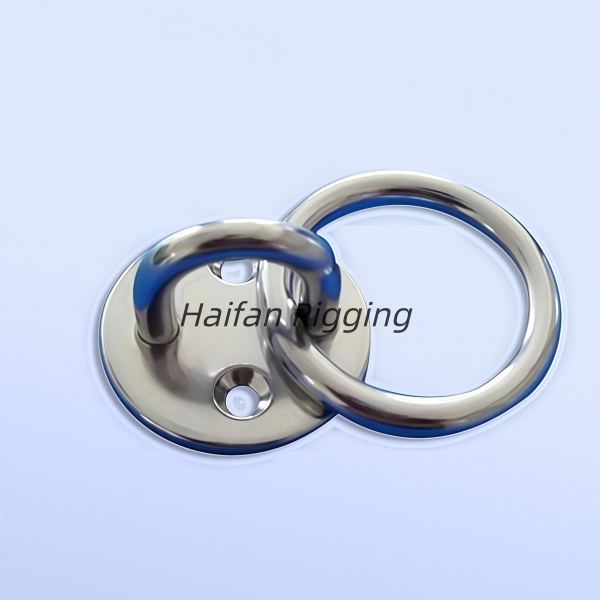

Round Eye Plate with Ring.
A round pad eye plate with ring is a heavy-duty anchor fixture consisting of a circular base plate, a fixed central U-shaped loop (the eye), and a separate, loose-swinging metal ring running through the loop.
This hardware combines the multi-directional strength of a round base with the articulating flexibility of a loose ring. The free-moving ring provides 360-degree rotation and pivot, preventing attached ropes, carabiners, or cables from twisting, binding, or snapping under shifting loads.
Key Features
Omnidirectional Load Distribution: The circular disc base features 3 or 4 evenly spaced mounting holes. This round layout distributes pulling forces symmetrically across the surface, handling multi-angle tension better than narrow oblong plates.
Articulating Ring Flexibility: The loose ring self-aligns with the direction of the pull. If a load shifts or sways, the ring moves with it, completely eliminating the levering stress that could otherwise rip a rigid eye out of the wall.
High-Grade Metallurgy: These components are typically forged or cast from polished 304 or 316 marine-grade stainless steel to prevent rust and corrosion in extreme outdoor, marine, or coastal environments.
Common Applications
The combination of uniform base strength and line flexibility makes this hardware perfect for dynamic, moving loads:
Marine Deck Tie-Downs: Bolted to ship decks or docks to secure heavy fenders, cargo nets, and tie-down lines that continuously move with waves and wind.
Fitness & Aerial Arts: Mounted to ceiling beams or walls to serve as anchor points for suspension trainers, resistance bands, gymnastic rings, boxing bags, or aerial silks.
Outdoor Living: Used as robust anchor points for high-tension sun shade sails, heavy hammocks, and porch swings that sway regularly.
Are you planning to mount this hardware to a wooden beam, a concrete wall, or a metal surface? Let me know your mounting material, and I can recommend the right type of fasteners for a secure installation!
Round Eye Plate with ring–robust and simple to use.
Round base pad eyes with rings is designed for use in securing chains, wire and rope to a range of different types of walls,floors and posts. Ideal for use commercially,domestically and in the marine industry,they're incredibly versatile too. Plus, they’re great for use with fibre rope in demarcation for car parks,queues and segregating off different areas of land too.
Made of non-rust high grade steel,The eye itself come with a ring attached which the rope then goes on to with a clip.
Place an order for your round base pad eyes with ring.
Haifan Rigging has the ability to sell a large selection of round base pad eyes with ring in one place. To tell us what you want,just send us a speedy inquiry form. For advice or if you have any queries, contact us.
