Korean Type Turnbuckle

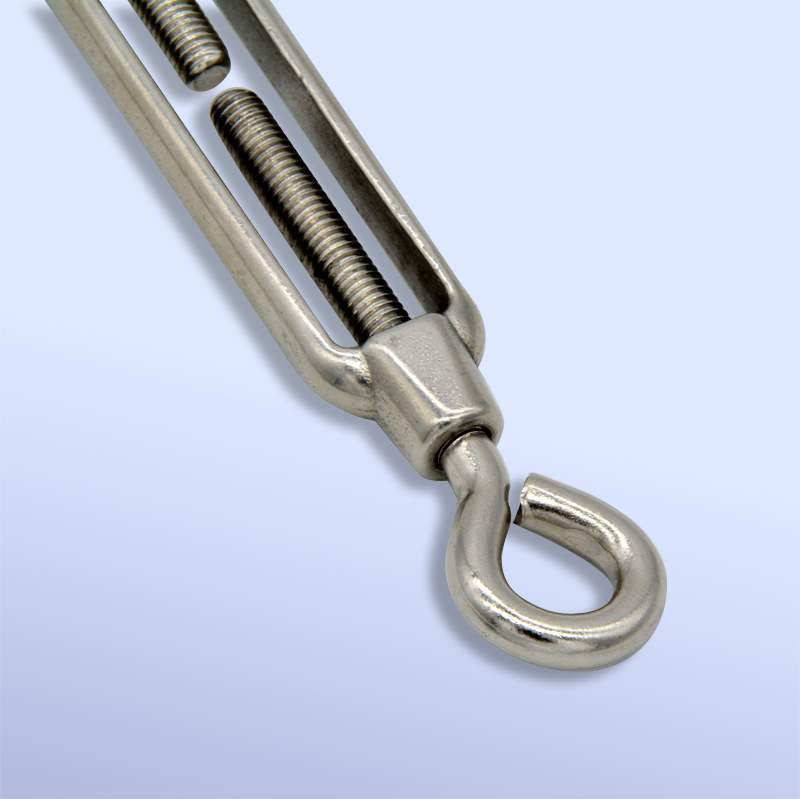

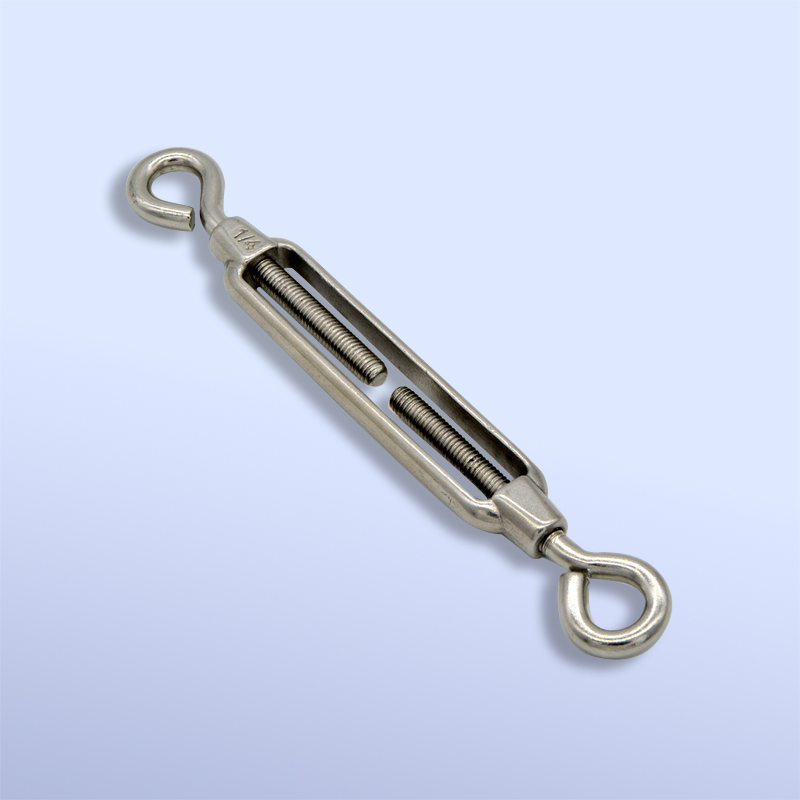

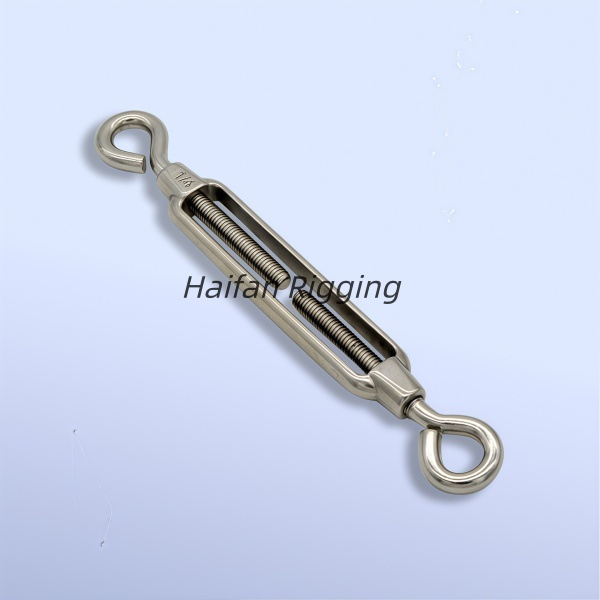

Stainless Stee Korean Type Turnbuckle with Eye and Eye

A Stainless Steel Korean Type Turnbuckle with Eye and Eye is a versatile rigging component used to adjust tension or length in wire ropes, cables, and tie rods. It features closed loops (eyes) on both ends for secure, semi-permanent connections, and is manufactured using marine-grade 304 or 316 stainless steel for excellent corrosion resistance.

Material: Premium Grade 316 or Grade 304 stainless steel. Grade 316 is the marine-grade standard, providing optimal rust prevention in saltwater and highly corrosive environments.

Design: Closed eyes on both ends prevent hardware from slipping off and are best for applications not requiring frequent assembly and disassembly.

Processing: Often constructed through precise drop-forging or casting, ensuring durability and high tensile strength.

Adjustment Range: The central body is rotated to adjust the "take-up" or overall length (typically ranging from 3/16" to 1").Safety: Designed for tensioning, static securing, and pulling.

Not rated for overhead lifting applications.

Body Type: Open-frame configuration allowing easy inspection of thread engagement.

Threading Mechanism: Left-hand threads on one end, right-hand threads on the other.

Rotating the center body pulls both eyes inward to tighten the line.

Sizing Convention: Standardized by metric thread sizes, usually ranging from M5 to M30+.

Common Uses

These turnbuckles are popular for:

Securing boat rigging and sailing equipment

Tensioning fence wires and cables

Supporting outdoor shade structures

Adjusting guy-wires for antennas and towers

Creating tensioned cable railings

Securing tarps and awnings

Don’t forget that wire ropes should never be knotted or twisted or they can be dangerously weakened.

Stainless Steel Korea Type Turnbuckle with Eye and Eye

Let us know which turnbuckle you need.

Haifan Rigging supply a range of rigging screws and turnbuckles.They come with a variety of fittings for each end to suit your particular application,such as eye and eye, eye and hook,hook and hook, jaw and jaw, hook and jaw,etc.Some rigging screws are fitted with locking nuts/barrel strainers to ensure that there is no unwanted loosening of the rope.

To put in your order, just fill out our short Inquiry form here, but please do ask us if you need anything custom-made.

If you wish to ask a question or need further advice, you are welcome to contact us. We’ll be happy to help.

We are always available for clarification and for order.

We look forward to hearing from you!
