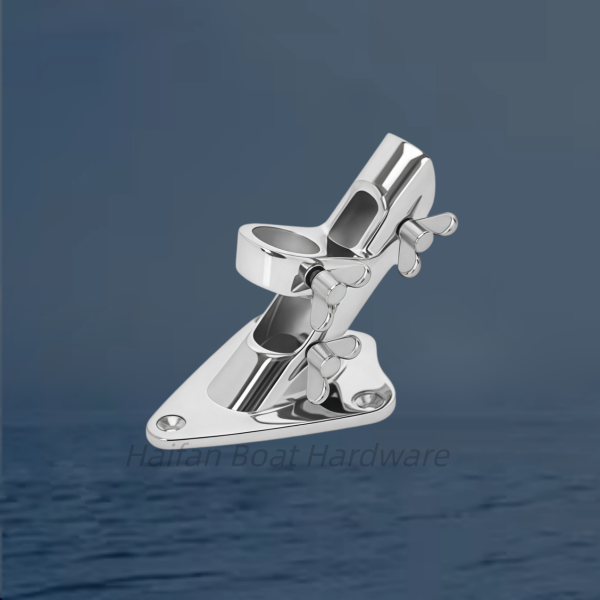

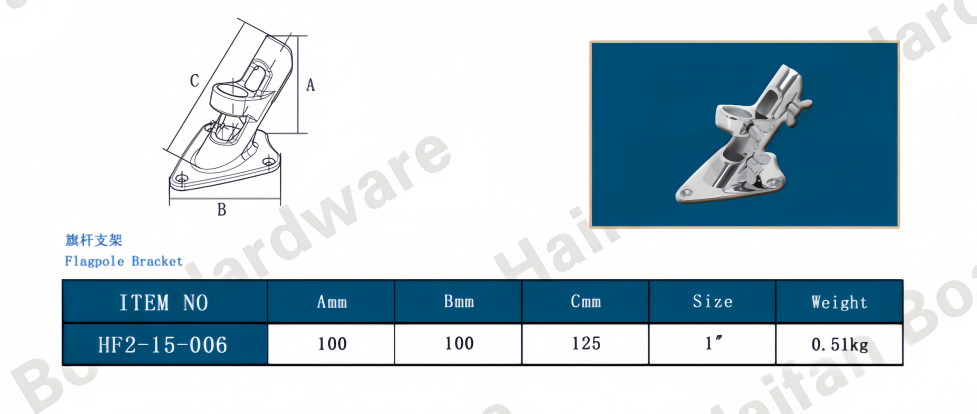

316 Marine Grade Stainless Steel 2-Position Dual Angle Flagpole Bracket (often styled as an Adjustable Heavy-Duty Wall / Deck Flag Mount).Unlike fixed-angle marine sockets, this specialized design features a triangular mounting footprint with two distinct integrated guide sleeves combined into a single solid casting, offering multiple display positions without needing to remove the hardware.
Key Features & Specifications
Dual Display Angles: Standard configurations typically feature a 45-degree angle sleeve (ideal for standard sweeping or low-profile setups) and a 90-degree vertical position (ideal for stationary vertical flag hanging or light stanchions).
Triple Wing-Nut Safety Locks: Equipped with three large ergonomic wing-nut screws (thumb screws). Two tighten down directly against the pole inserted into either sleeve, while the lower wing screws act as locking pins or adjustable stabilizing pivots. This allows for entirely tool-free adjustments on deck.
Premium Maritime Alloy: Investment cast from highly polished AISI 316 Stainless Steel, offering top-tier resistance against corrosive sea spray, salt air, and heavy wind loading.
Flanged Multi-Hole Footprint: The widened delta/triangular baseplate utilizes countersunk mounting holes to ensure an incredibly rigid attachment directly to walls, house porches, bulkheads, or boat transoms.
If you are planning the installation layout for this bracket, let us know:
Are you planning to mount this on a vertical wall/bulkhead or flat down on a horizontal deck surface?
Is the diameter of your flag staff a standard 1-inch (25.4mm) tube size?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
