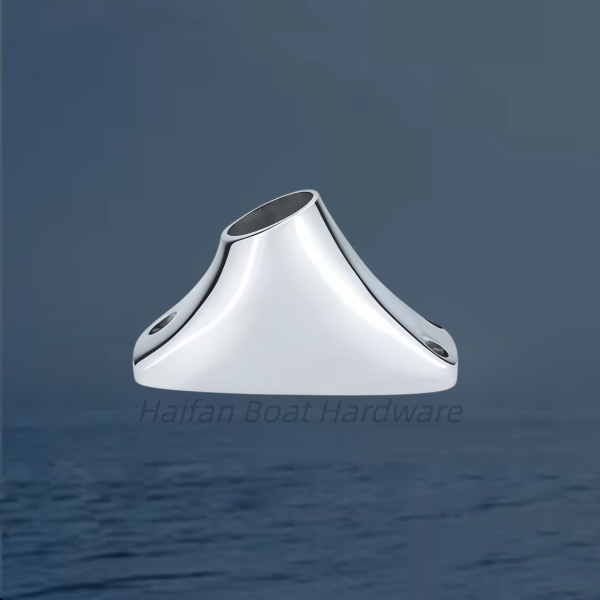

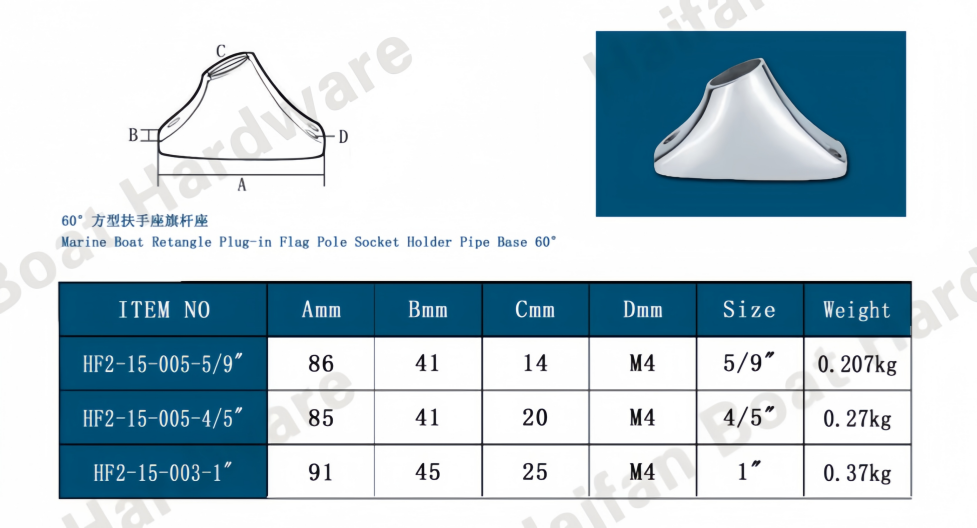

Marine Grade Stainless Steel 60° Rectangular Handrail / Flagpole Base (often referred to as a 60-Degree Rectangle Stanchion Fitting).Unlike the previous cylindrical models, this design features an integrated 4-hole wide rectangular mounting flange, which provides maximum structural surface area to distribute shear forces evenly across fiberglass or wood decks.
Key Features & Specifications
Superior Mechanical Leverage: The broad, flat base acts as an excellent load-bearing flange. This is heavily preferred for high-load installations like bow pulpit rails, side stanchion guard lines, or long angled flagpoles that face severe drag while underway.
60° Angled Pitch: Cast at a precise 60-degree forward or aft lean, making it ideal for sleek, swept-back aesthetics or clearing low-hanging bimini tops and lines.
Marine-Grade Build: Fabricated from heavy-duty investment cast AISI 316 Stainless Steel with an ultra-smooth, mirror-polished finish for unmatched defense against highly corrosive saltwater spray.
Fastener Holes: Features four pre-drilled, countersunk holes at the corners to allow standard flat-head wood screws or thru-bolts to sit completely flush with the top of the baseplate, eliminating stubbed-toe hazards on deck.
If you are replacing a pre-existing flange base, it can help to verify:
What are the center-to-center measurements of your current bolt holes? (This ensures you don't have to drill new holes into your fiberglass gelcoat).
Are you pairing this with 7/8" (22mm) or 1" (25mm) stainless steel tubing?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
