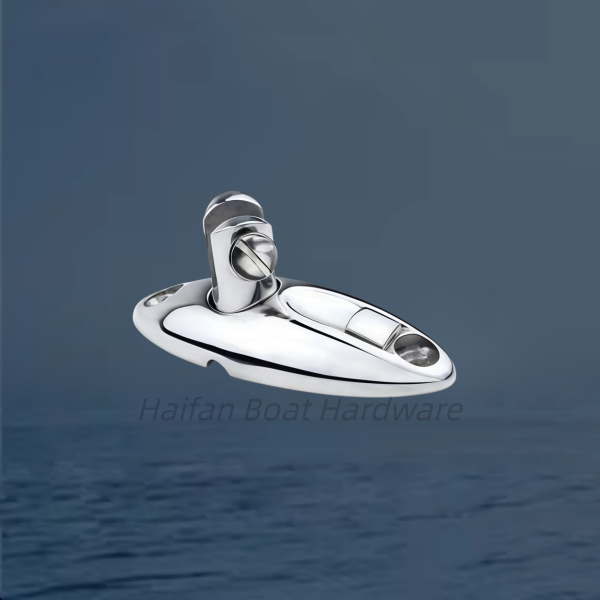

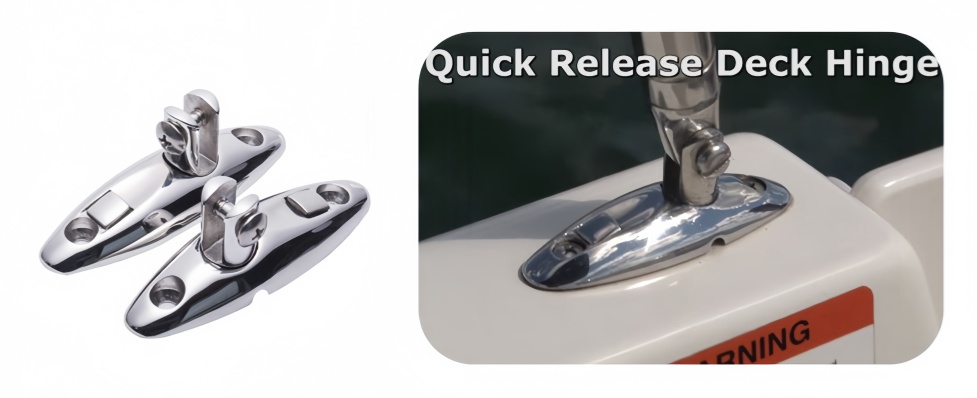

Quick-Release Bimini Top Swivel Deck Side-Mount Hinge with a integrated push-button locking mechanism.
It is a premium piece of boat canopy hardware designed to quickly attach or remove Bimini top support frames without loose pins.
Technical Details & Mechanics
Integrated Slide Button: Instead of utilizing a loose detent pin or ring, a spring-loaded slider switch is embedded directly into the teardrop base.
Sliding the button back retracts an internal locking fork, allowing the top clevis adapter to be released instantly.
Universal Swivel Post: The vertical tab (clevis adapter) rotates freely inside the base socket, automatically compensating for sloped or angled decks so your canvas frame folds smoothly.
Fixed Screw Top: The top section uses a standard slotted thread screw to securely lock onto a canvas pole's eye end.
Material: Investment-cast marine-grade 316 stainless steel buffed to a mirror-polished finish for high saltwater corrosion resistance.
Standard Installation

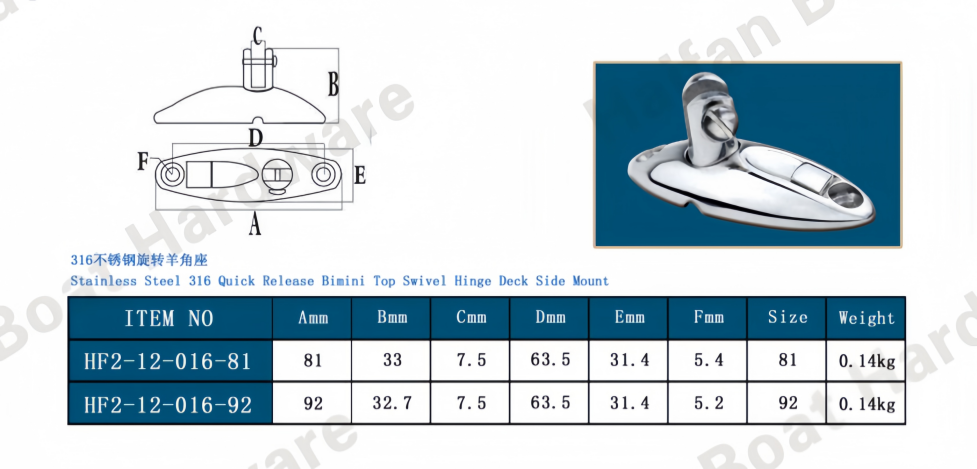

Mounting Footprint: Typically utilizes two countersunk holes on opposite ends of the teardrop base to secure flush against flat decks or vertical gunwale side walls via wood or machine screws.
Are you looking to replace an old hinge and need the exact hole-to-hole mounting measurements to match your existing setup, or do you need a source link to buy a replacement pack?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
