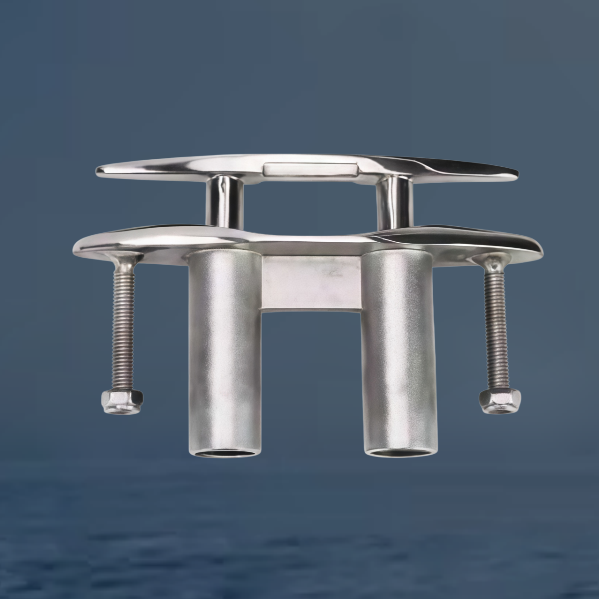

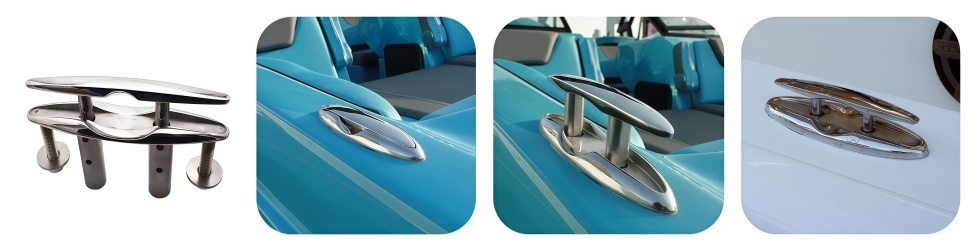

316 Stainless Steel Retractable Pull-Up Boat Cleat (also known as a flush-mount or pop-up cleat).
Key Features & Functionality
Retractable Mechanism: The main horn can be pulled upward to catch mooring ropes. When lines are removed, it slides back down into its recess tubes, keeping the deck completely flat and preventing stubbed toes or line snags.
Integrated Drainage Posts: The two large vertical cylindrical sleeves act as guidance tubes for the cleat legs. They often double as drainage pathways to redirect captured deck water under the gunwale rather than pooling inside the mechanism.
Dual Stud-Bolt Fixing: The outer threaded studs secure the base firmly to the fiberglass hull using washers and locking nuts, preventing the housing from rotating or shifting under extreme tension.
Marine Grade Build: For maximum defense against rust in corrosive environments, it is constructed from investment-cast 316 marine-grade stainless steel polished to a mirror finish.
To narrow down technical dimensions for your project, please let us know:

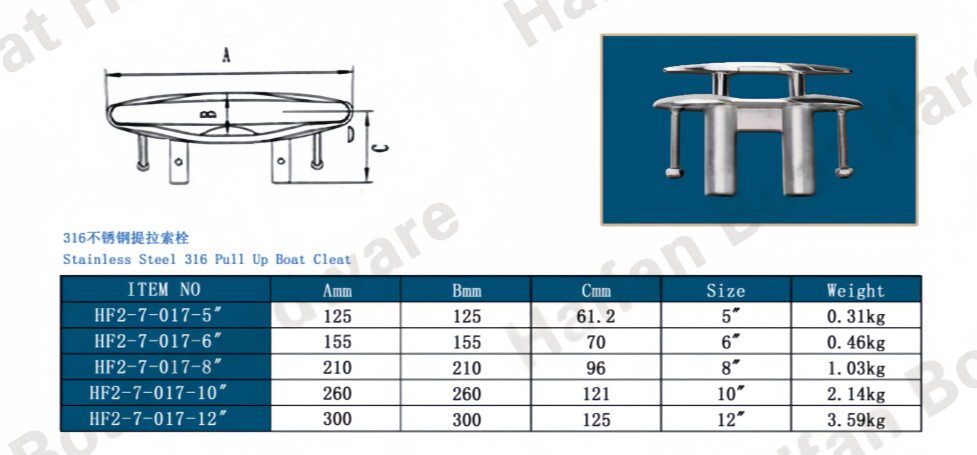

Are you checking overall sizes (typically available in 4", 5", 6", 8", or 10") to fit specific rope diameters?
Do you need details on drainage tube dimensions to verify under-deck clearance before drilling?
Are you looking for an installation guide regarding backing plates or sealing washers?
