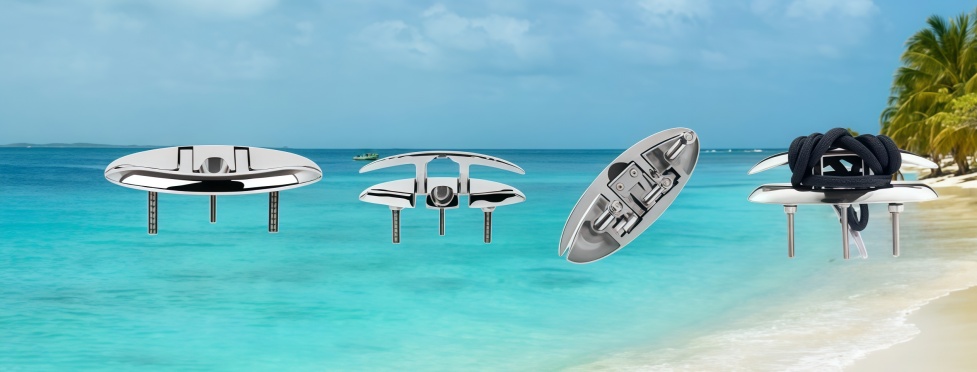

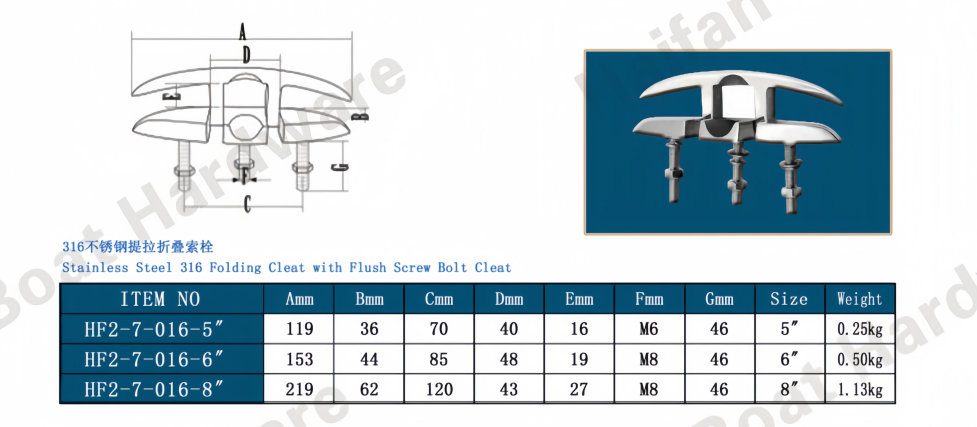

316 Stainless Steel Stud-Mount Folding Cleat with Flush Screw.
Key Features & Mechanics

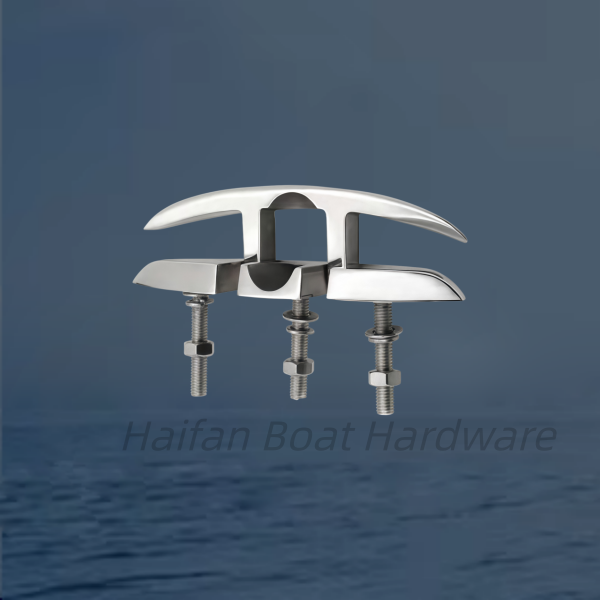

Stud-Mount Configuration: Unlike standard through-bolted variants with visible screw holes on top, this model uses a three-stud hidden fastening design. Threaded bolts or hex studs extend directly from the underside, leaving a completely clean, flush surface when installed.
Articulated Flip-Up Function: The center section features a spring-loaded hinge mechanism. It locks firmly into an upright position when lines need to be secured, and folds flat down into its contoured base when not in use.
Anti-Snag Design: When folded flat, its smooth, low-profile oval shape eliminates dangerous tripping hazards on the deck and prevents fishing lines, dock lines, or clothing from accidentally catching.
No Pocket Cutouts Required: This is a surface-mount design. It installs by drilling standard clearance holes for the mounting studs rather than sawing a massive rectangular cutout into your deck fiberglass or gunwale.
To assist you with your project, please let me know:Are you replacing an existing cleat and need to match specific center-to-center hole spacing?
What overall length (such as 4.5", 5", 6", or 8") do you require for your line diameter?
Do you need guidance on adding a backing plate underneath to safely handle heavy docking loads?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We’ll be happy to help.
We look forward to hearing from you!
