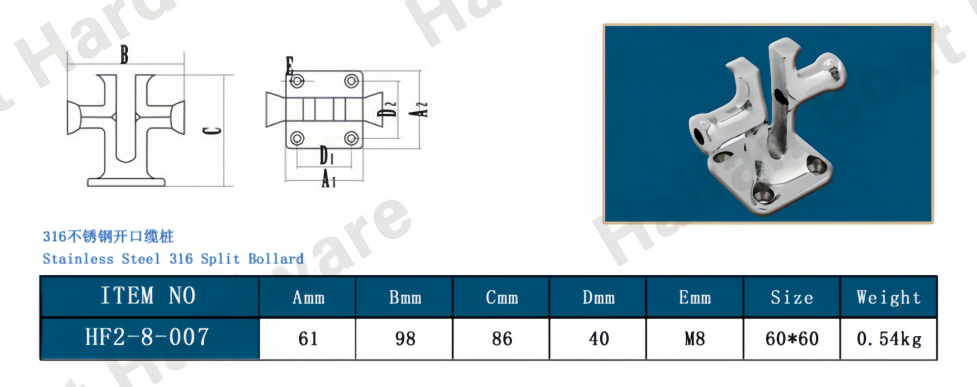

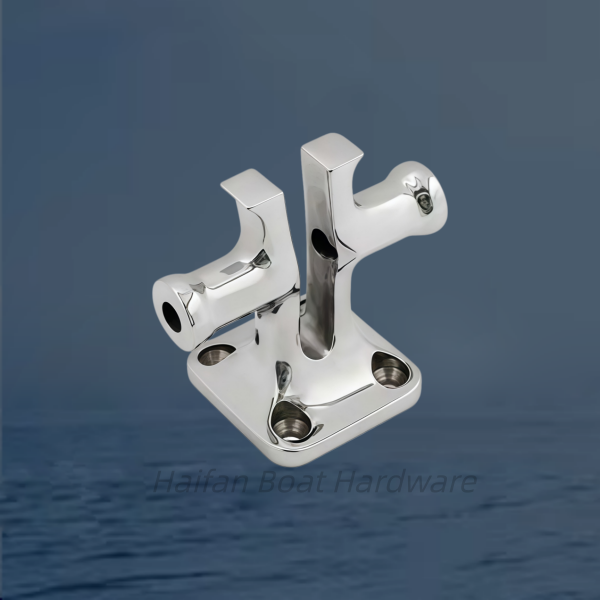

Marine Split Bollard (also commonly referred to as a slotted cross bollard or chain stopper).
Key Features & Design
Material: It is crafted from heavy-duty, mirror-polished 316-grade marine stainless steel to ensure maximum corrosion resistance against saltwater and harsh elements.
Slotted Center Shaft: The central gap is specifically engineered to capture, drop in, and effectively secure individual links of an anchor chain (typically fitting 8mm to 10mm chains), preventing them from slipping or rattling.

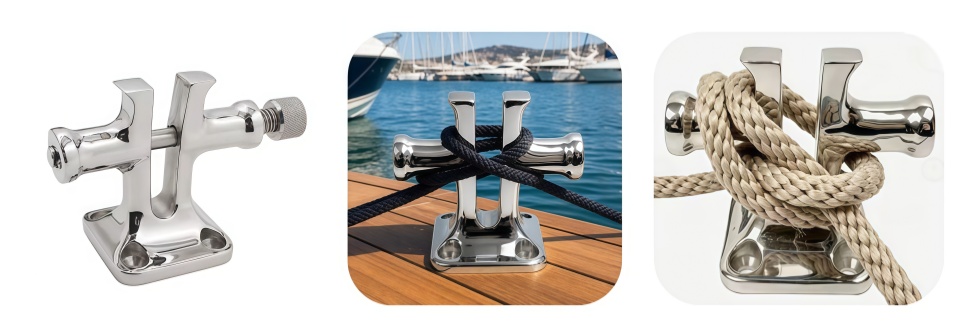

Dual T-Bars / Horns: The side horns allow you to tie off traditional mooring lines, ropes, or fender lines using standard cleat hitches.
Mounting Base: Features a heavy, square/rectangular base with four pre-drilled countersunk mounting holes to handle high lateral and vertical tension forces during mooring or anchoring.
Pin Slot: The horizontal hole drilled through the upper bars is designed to accept a removable or captive locking pin to completely lock the chain or line in place (note that the pin is not shown in this specific image).
If you are looking to purchase or replace one of these, let us know:
What chain size or line thickness you are working with?
The dimensions of the base or mounting space available on your boat deck?
We can help you find a model that directly matches your existing mounting hole patterns.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
