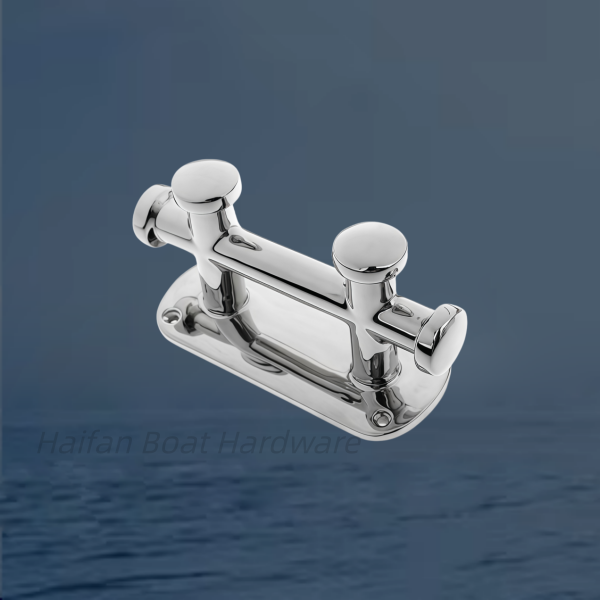

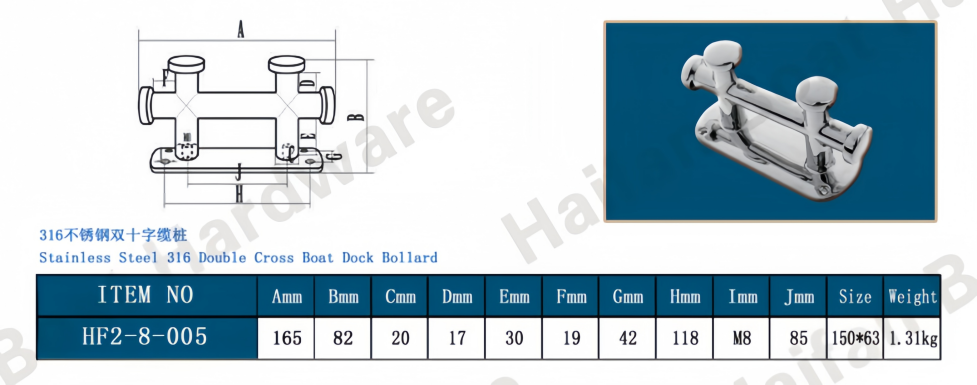

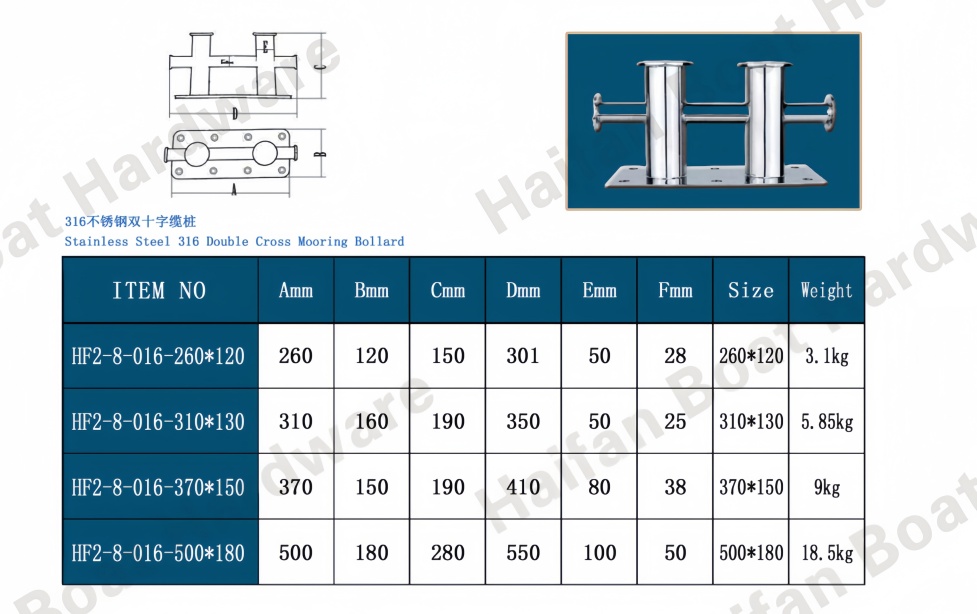

Heavy-Duty Double Cross Boat Dock Bollard (also known as a double mooring bitt), which is the standard upgrade from a single cross design for higher-load tie-offs.
Key Functional Features
High-Capacity Dual Posts: Features two vertical pillars connected by a single continuous horizontal crossbar, allowing lines to be wrapped in a secure "Figure-8" pattern to handle significant surge loads.
4-Bolt Heavy Duty Base: Built with an elongated, heavy-gauge oval base plate containing four countersunk mounting holes to evenly distribute massive multidirectional shearing forces across dock timbers or vessel decks.
Flared Retention Caps: All four exposed ends of the posts and crossbars feature wide, rounded caps that physically prevent highly tensioned mooring lines from slipping off during heavy swells.
316 Stainless Steel: Cast from premium marine-grade alloy and mirror-polished to prevent crevice corrosion in marine environments while protecting expensive nylon or braided ropes from friction damage.
If you are replacing an old cleat or planning a new installation, please share:
The approximate length or weight of your boat.
The material of your deck/dock (wood, aluminum, composite, or fiberglass).
Whether you need the exact hole-to-hole bolt measurements for retrofitting.
We can then provide specific mounting hardware guidelines or match the exact blueprint layout you need.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
