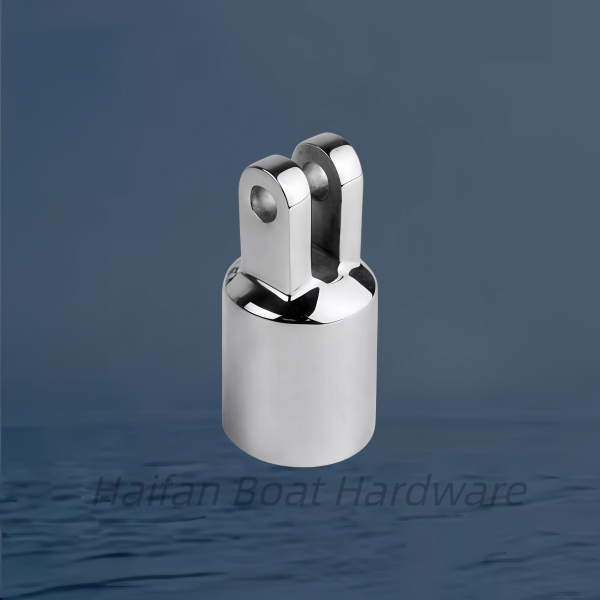

Bimini Top Double Prong Cap, Double Eye End Cap, or Socket Adapter.
Key Features
Design: Unlike a standard single eye end, this features a double prong (jaw) design with a slot in the middle to accept another single eye end fitting.
Function: It is primarily used to connect a secondary support pole (brace or stay) to the main bow frame of a Bimini top, allowing the frame to pivot and fold smoothly.
Material: Made of high-polish 316 Marine Grade Stainless Steel for ultimate corrosion resistance in saltwater environments.
Fastener: Includes a grub screw (set screw) on the side to securely lock it onto the stainless steel or aluminum tubing.

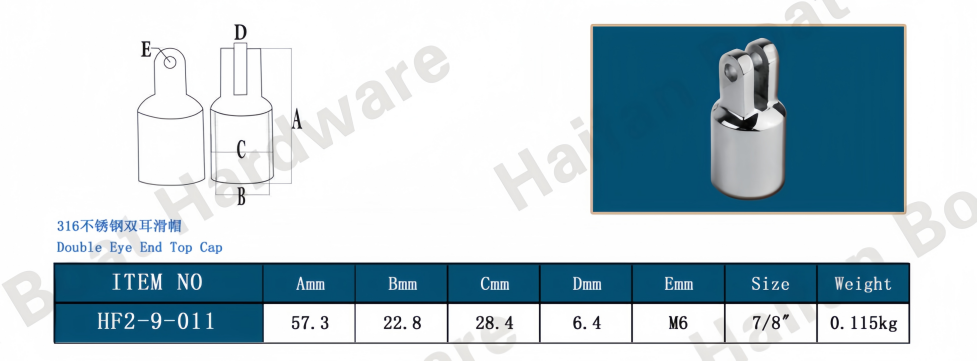

Common Specifications
Available Sizes: Usually comes in 7/8" (22mm) or 1" (25mm) inner diameter (ID) to match standard boat rail tubing.
Pin Hole Size: The top hole typically accepts a 1/4" (6.3mm) screw or quick-release pin.
Could you let us know the outside diameter (OD) of your tubing so we can help you find the correct size?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
