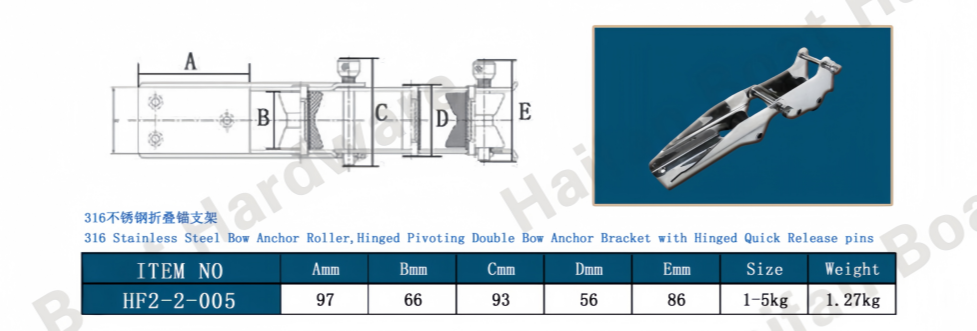

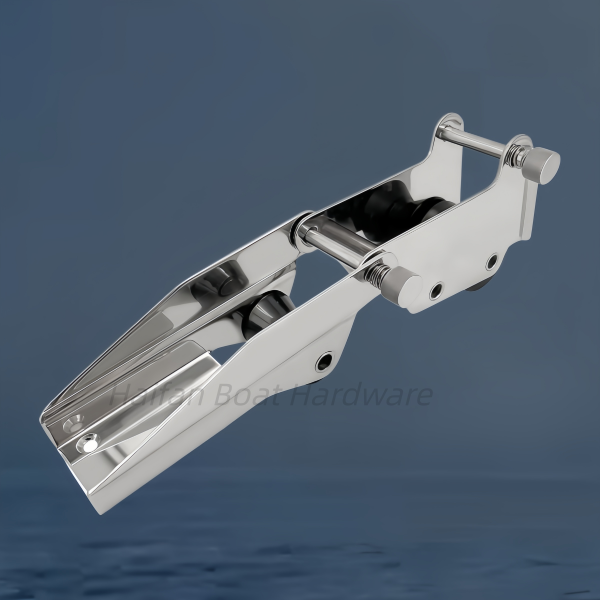

Hinged Pivoting Double Bow Anchor Bracket with Hinged Quick Release Pin (also called a pivoting double bow anchor roller).
What It Is Used For?

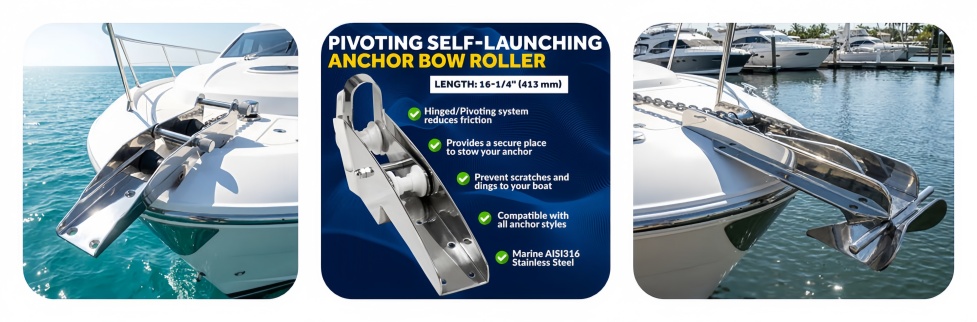

Anchor Launching & Retrieval: It is mounted permanently to the bow (front) of a boat to guide the anchor line or chain into the water and pull it back up seamlessly.
Hull Protection: The primary job is to hold the anchor away from the boat, preventing the heavy, sharp metal anchor and chain from scratching or gouging the fiberglass hull.
Core Features
Pivoting / Hinged Design: The bracket is split into two halves connected by a center pivot joint. This creates a "self-launching" mechanism. When you release the anchor line, the front half tilts downward under the weight of the anchor, helping it slide out automatically without getting stuck.
Dual Rollers: It contains two heavy-duty black delrin or rubber rollers inside. These roll smoothly to minimize friction on your rope or chain, extending the life of your ground tackle.
Quick-Release Captive Pins: The two spring-loaded pins at the top span across the bracket. They lock the anchor shank securely inside the roller channel while cruising, preventing the anchor from bouncing or throwing itself overboard in rough seas.
Marine-Grade Material: It is constructed from mirror-polished 316 stainless steel to withstand highly corrosive saltwater environments.
To help you find the right fit or replacement, could you tell us:
What style of anchor do you plan to use with it (e.g., Delta/Plow, Bruce/Claw, or Danforth)?
What size/weight anchor or what length boat are you trying to fit?
Do you need the exact mounting bolt pattern dimensions to see if it matches pre-drilled holes on your deck?
