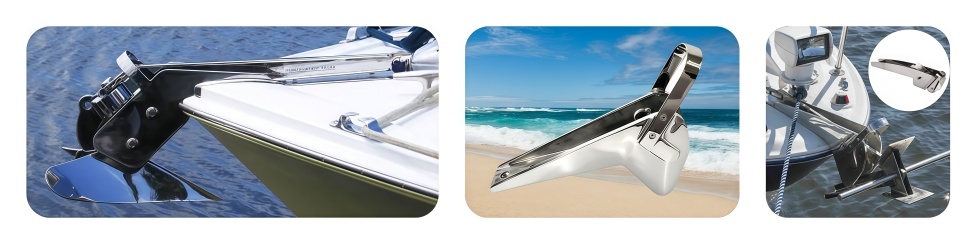

A marine anchor roller is a crucial piece of bow hardware designed to ensure smooth anchor deployment and retrieval while protecting your boat's hull from scratches and scuffs. By guiding the anchor rode over a low-friction wheel, it minimizes friction, prevents line chafing, and provides a stable cradle to lock your anchor securely in place while cruising.

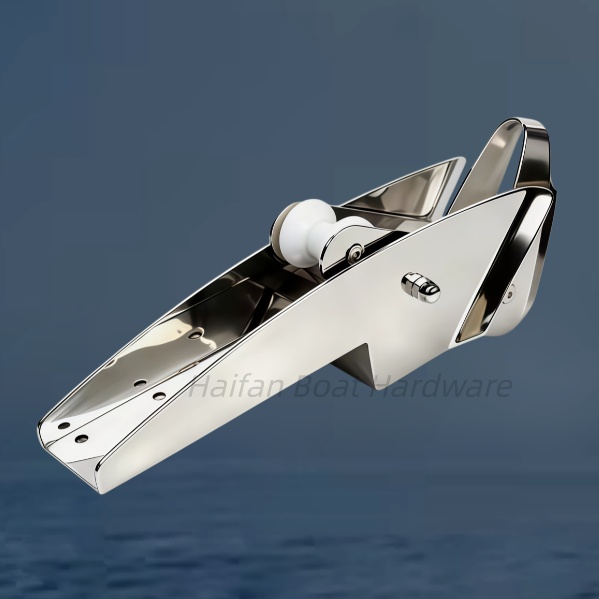

This is a 316 Marine-Grade Stainless Steel Bow Anchor Roller with a Captive Loop/Bail. This specific model is a heavy-duty, fixed bow roller designed primarily for smoothly launching, retrieving, and stowing Plow, Delta, CQR, and Wing-style anchors.
Key Features of This Model

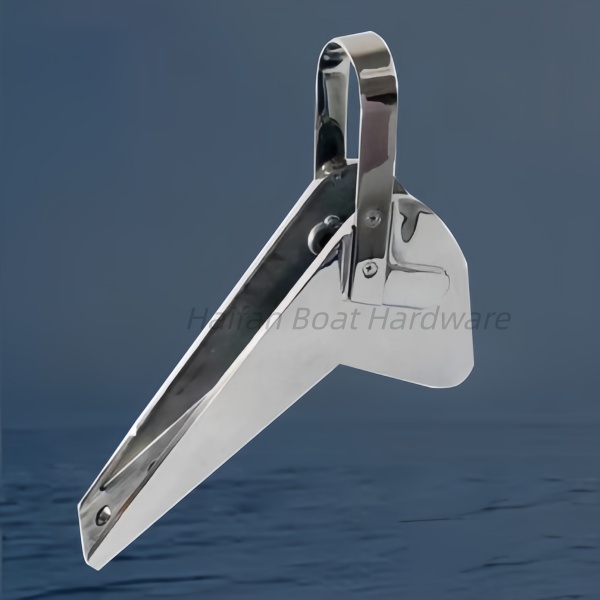

Captive Safety Bail: The distinct vertical steel loop over the roller wheel acts as a fairlead to prevent your rope or chain from jumping out of the channel during rough swells.
Deep Flange Design: The extended, wing-like side flanges near the roller provide a wide cradle that accommodates and secures the heavy shanks of plow or delta anchors.
Polished AISI 316 Stainless Steel: Highly polished to maximize corrosion resistance in harsh, continuous saltwater environments.
Pre-Drilled Mounting Holes: Located at the base and tip to provide secure, flush mounting straight onto the centerline of your boat's deck or bowsprit.
Materials to Look For
316 Stainless Steel: The absolute standard for saltwater environments. It contains molybdenum to strongly resist rust and pitting.
304 Stainless Steel: Acceptable for freshwater use or trailered boats that are washed and dried consistently.
Delrin or Nylon Wheels: High-density polymer wheels are embedded in the stainless bracket to provide a smooth, long-lasting surface that handles high line friction without seizing up.
If you are planning to install or swap to this style of roller, let us know your anchor's weight or your boat's size so we can help you confirm if this exact channel length will match your setup!
