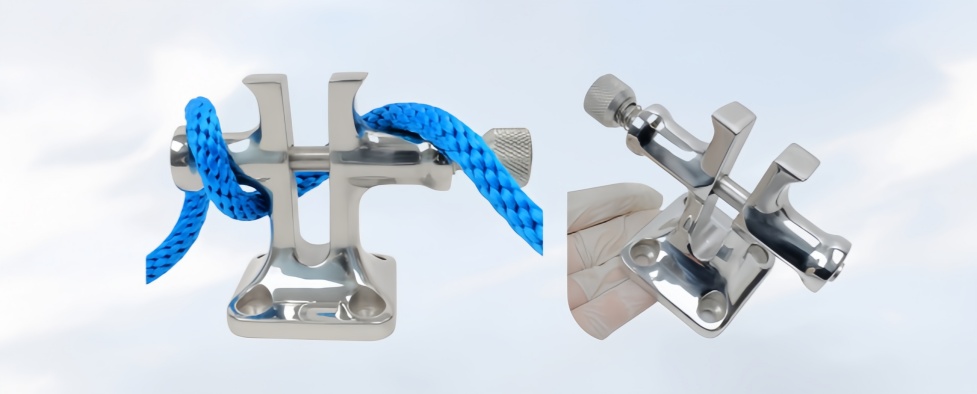

Marine split cross bollard (also commonly referred to as a split mooring cleat or a slotted anchor bitt) is a specialized piece of heavy-duty deck hardware used on boats, yachts, and kayaks to secure anchor chains and mooring lines concurrently without slipping.

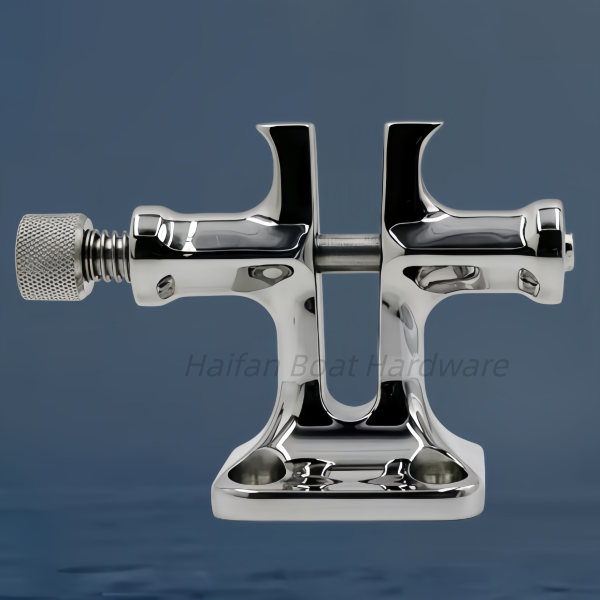

While a traditional mooring bitt is a solid metal post, this version features a functional vertical split down the core center of its main shaft.
How the Split Design Works
The Slotted Center: The vertical gap is precisely calibrated to match the diameter of short-link anchor chains (typically sizing from 8mm to 13mm). You drop a single chain link vertically into the slot, and the cross-sections of the adjacent links instantly jam flat against the outer metal shaft. This locks your anchor rode in place mechanically, safely transferring heavy tension off your windlass winch directly onto the boat's structural deck.
Captive Spring Pins: Premium iterations incorporate a horizontal, spring-loaded quick-release pin that slides directly across the central split. Once your anchor chain or heavy rope is slotted inside, the pin snaps shut over it to guarantee the line cannot accidentally jump free during rough tidal breaks or wind swells.
Horizontal Crossbars: The standard cross T-arms extending out from the sides provide clean wrapping anchors to tie down traditional figure-eight cleat hitches using braided dock lines.

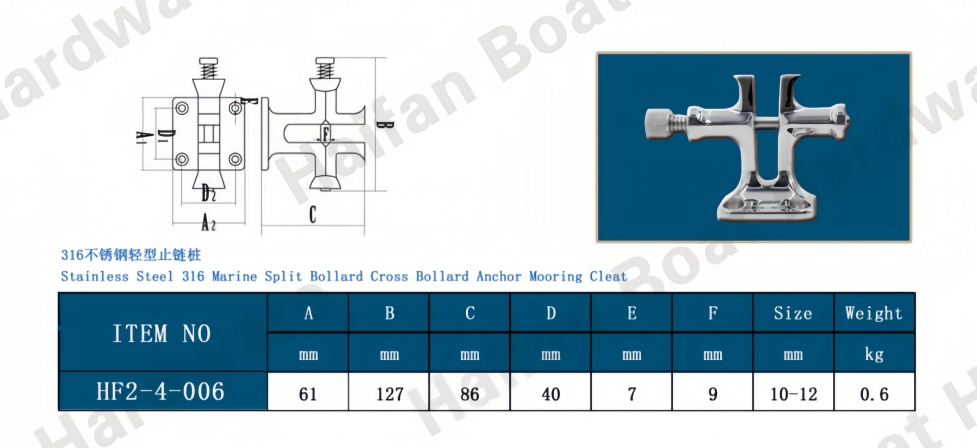

Standard Build & Specifications
Composition: Cast out of solid, mirror-polished 316 Marine-Grade Stainless Steel for total resistance against saltwater pit-corrosion.
Footprint Sizing: Features a heavy-duty, square base plate measuring roughly 62mm x 62mm with an average height of 85mm.
Installation Requirements: Mounted onto bowsprits, anchor wells, or deck lines utilizing heavy M6 or 7mm through-bolts. It relies heavily on thick structural backing plates beneath the deck fiberglass to distribute localized shear loads safely.
If you are looking into installing or replacing one of these bitts, please let us know:
What size chain or rope diameter are you planning to run through the split center?
What type of vessel (e.g., center console fishing boat, sailboat, kayak) are you rigging?
Do you need assistance finding a matching bolt pattern size to fit pre-existing holes on your deck?
