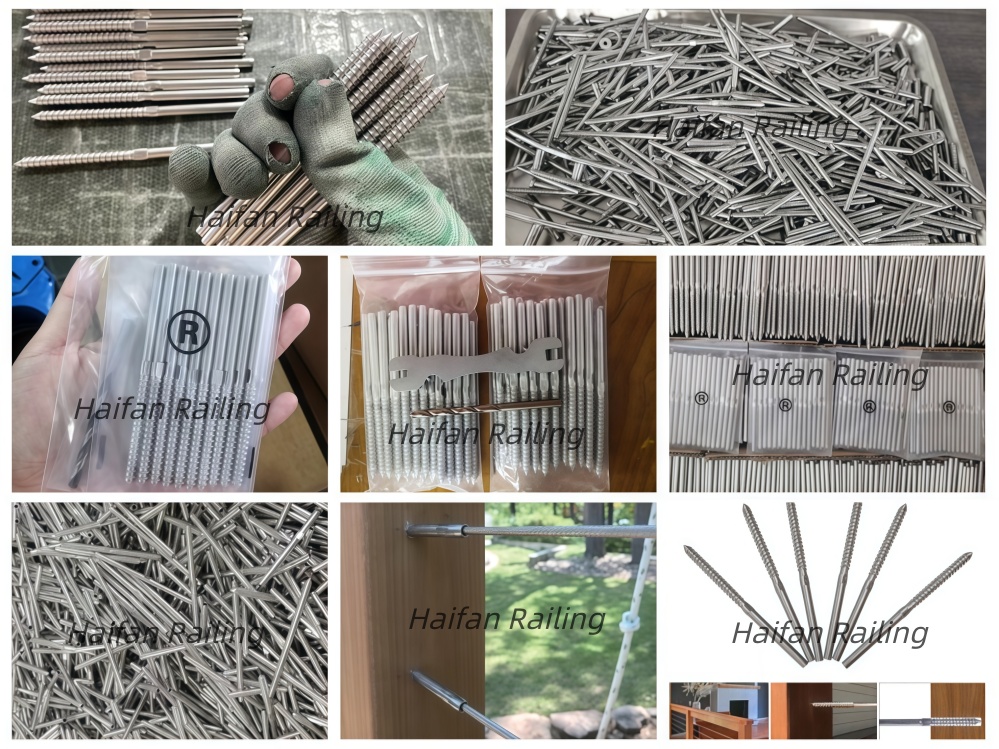

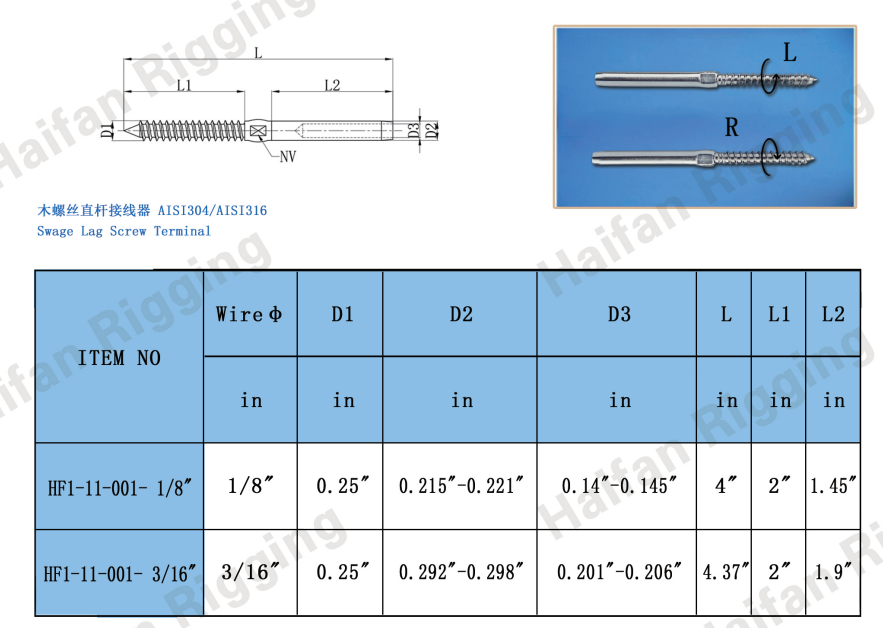

Swage Lag Screw Terminal
These are swage lag screw terminals for cable railing systems, specifically designed for installation into wood posts. They provide a modern, "invisible" look for deck and stair railings by allowing cables to be anchored and tensioned without large, bulky turnbuckles.
Key Features

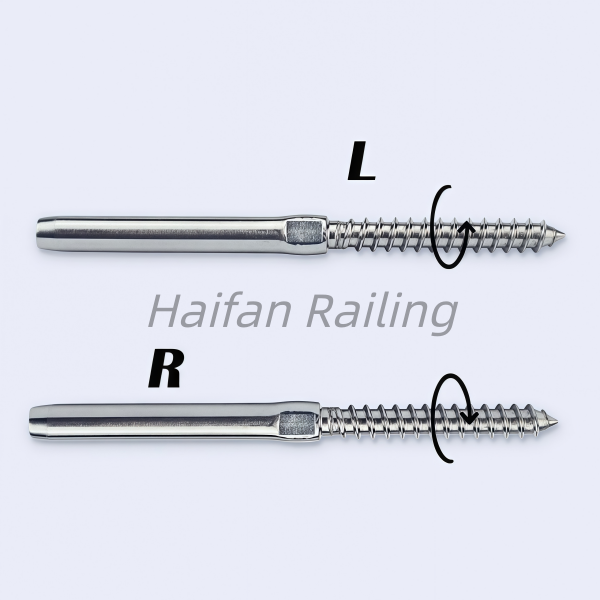

Opposing Threads (L & R): The image shows a Left-hand (L) and Right-hand (R) thread pair. By using these on opposite ends of a single cable run, you can rotate the cable itself to tighten the system without it unwinding or twisting.Material: Most are crafted from T316 marine-grade stainless steel, making them highly resistant to corrosion in both indoor and outdoor environments.
Compatibility: They are commonly sized for 1/8" or 3/16" diameter stainless steel cables.
How They Work?
Preparation: One end of the cable is inserted into the hollow tube end of the terminal and secured using a hydraulic swaging (crimping) tool.
Mounting: The threaded lag screw portion is driven into a pre-drilled pilot hole in a wooden post.
Tensioning: Because of the opposing threads at each end, turning the cable in one direction simultaneously draws both screws into their respective posts, pulling the cable taut.
Swage Lag Screw Terminal for Cable Deck Railing,
Go ahead and order your Swage Lag Screw Terminal.
We offer a wide variety of parts for cable railing systems to contractors and home-owners alike.
You'll find all the right fittings for your custom cable railing projects here!
If you are looking to purchase these or matching cable kits, you can find various multi-pack configurations through retailers like
https://www.haifan-rigging.com/cable-railing-hardware/ or https://www.haifanrailing.com/
We look forward to hearing from you!
