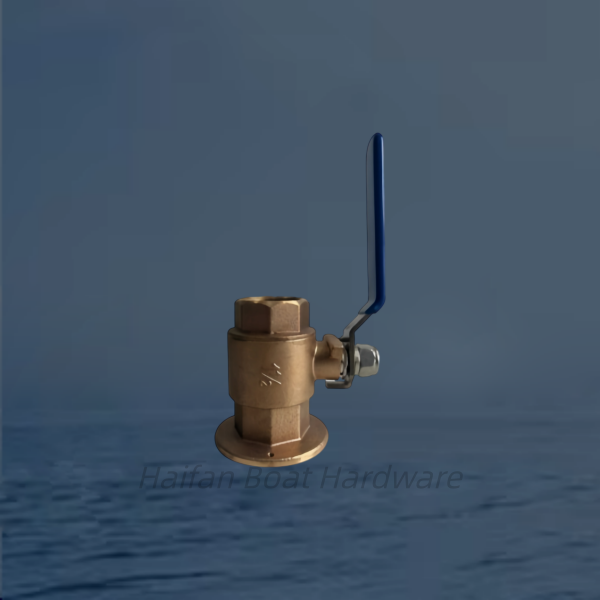

marine bronze/brass seacock (also classified as a flanged ball valve), rather than a standard gate valve.
Core Functions & Features
• Structural Design: It integrates a quarter-turn ball valve with an integrated flanged base. The pre-drilled flange bolts directly to the inside of the boat's hull (over a thru-hull fitting). This distributes stress and provides crucial structural reinforcement against shearing forces, meeting strict marine safety standards.
• Material: Typically constructed from high-strength cast bronze or DZR (Dezincification Resistant) brass to withstand constant exposure to saltwater and prevent galvanic corrosion.
• Lever Handle: Equipped with a blue vinyl-insulated handle for easy manual operation in tight, damp bilge compartments.
How It Connects to the Previous Components
In a standard boat raw-water intake system, these parts create a continuous safety and supply line:
1. Seawater enters through the hull scoop strainer (the first part we discussed) beneath the boat.
2. It passes immediately into this seacock bolted to the hull. This serves as the primary shut-off defense to stop water from flooding the boat in an emergency.
3. Once past the seacock, the water travels through inline plumbing—which can include standard 2-piece ball valves (the second part we discussed)—on its way to your engine or raw-water washdown pumps.
Are you mapping out a complete raw water intake system? If you'd like, we can provide a step-by-step assembly breakdown showing how the scoop strainer, seacock, and inline valves connect together safely.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
