Pelican Hook with Swageless Stud

What does swageless mean?

A swageless terminal or termination is a type of end fitting that will be applied to wire rope. Connection points are easily created between two ropes. Or to create a connection between the rope and an existing fitting on your worksite. Its use will depend upon the type of swageless fitting chosen.

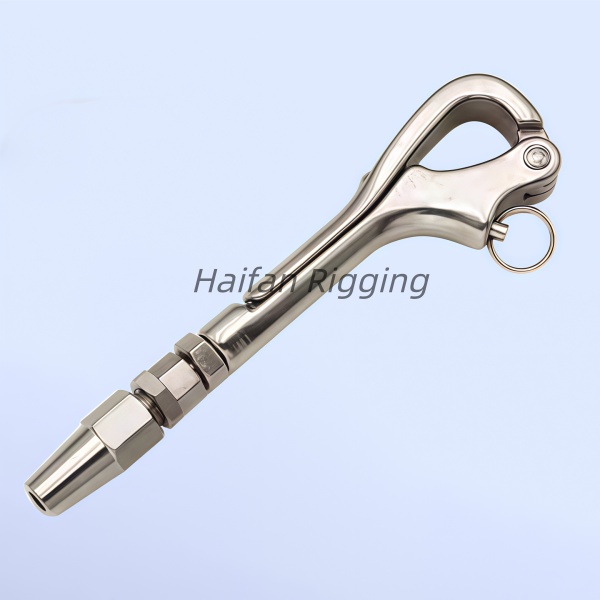

The swageless term refers to the fact that this is only a temporary connection, and will be manually fitted by hand. There are special jaw type parts within the fitting ( you will notice these protruding from the end in the image). Which, when tightened up will clamp onto the rope holding it firmly in place. This is in contrast to a swaged terminal, which has been pressured down by a machine using extreme force and pressure, which creates a permanent fitting.

A major benefit of swageless terminals is that the connection is not permanent and therefore both the terminal and wire rope can be disconnected from each other. They can then be re-used which makes them popular in a range of industries. They can also be fitted on site with the right tools.

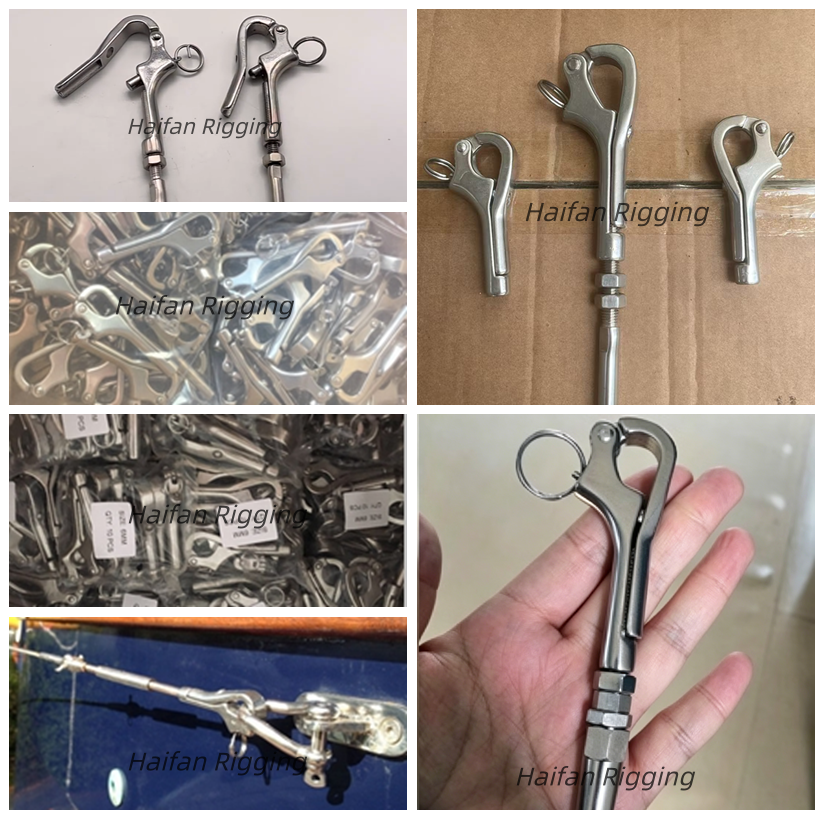

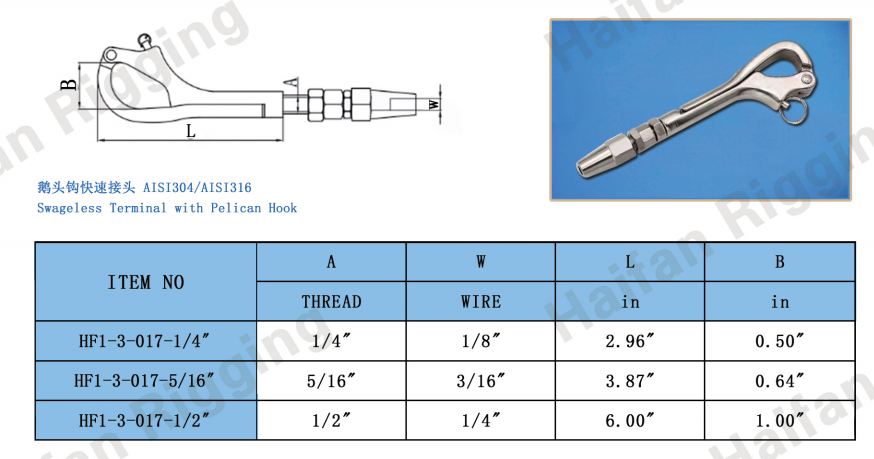

The Stainless Swageless Pelican Hook features Grade 316 stainless steel for corrosion resistance. It makes lifeline rigging fast and simple. Its mechanical swage fitting allows quick installation with basic hand tools. This swageless pelican hook works with 1×19, 7×19, and 7×7 cable constructions. It creates secure, reusable connections for sailboats, yachts, and marine lifelines.

Come and order your Pelican Hook with Swageless Stud.

Haifan Rigging supply a range of rigging hardware fittings. They come with a variety of fittings for each end to suit your particular application,.

To put in your order, just fill out our short inquiry form here, but please do ask us if you need anything custom-made.

If you wish to ask a question or need further advice, you are welcome to contact us. We’ll be happy to help.

We look forward to hearing from you!
