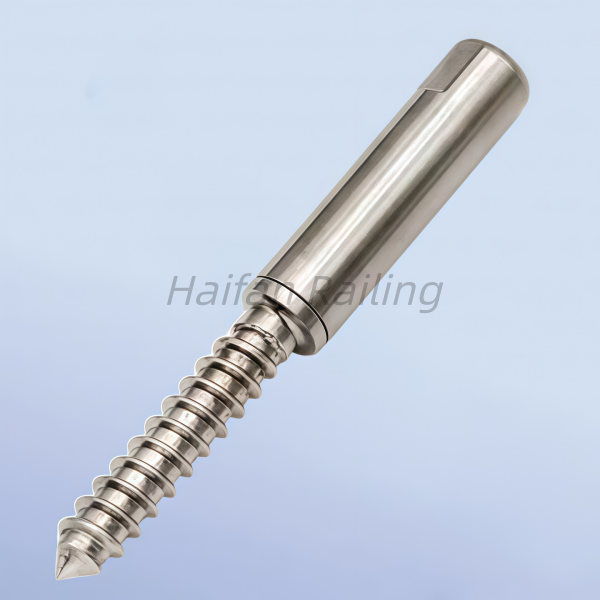

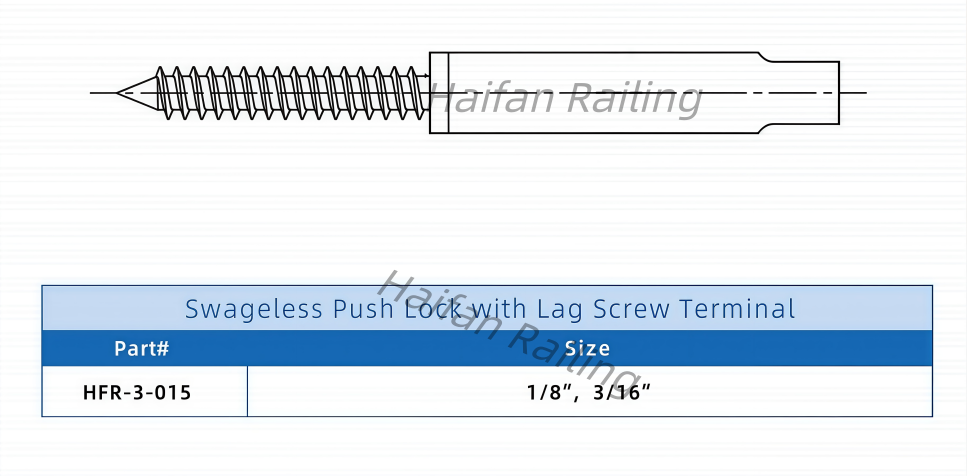

Swageless Push-Lock Lag Screw Terminal, Designed for straightforward attachment to wood, ensuring quick setup without special tools, perfect for DIV enthusiasts and professionals alike. It is a durable and reliable component made from 316 grade stainless steel, providing long-lasting performance and resilience against wear and tear in various environments. Compatible with 3/16" cables, making it ideal for diverse applications such as railing systems, artinstallations, and practical home projects.
Key Features
Instant "Push-to-Lock" Fitting: Houses internal spring-loaded steel jaw wedges. You push the cleanly-cut wire rope directly into the terminal cylinder end, and the system grips it instantly. It bypasses the need for heavy hand-swaging or hydraulic crimping equipment.
Surface-Mount Wood Profile: The robust, deep-threaded lag screw tip allows the fixture to be driven directly into wood posts.
Wrench Flats for Installation: Features flat precision notches right on the body tip. This allows an open-end wrench to get a solid grip to twist the body into pre-drilled holes without scratching or scuffing the satin finish.
Dead-End Functionality: Typically acts as a sleek "dead-end" terminal or fixed non-tensioning anchor point on one side of a deck run, paired with an adjustable turnbuckle tensioner on the opposing post.
Installation Walkthrough
1,Drill the Pilot Hole: Pre-drill a 3/16" pilot hole directly into your terminal wood post layout.
2,Drive the Fitting: Use an open-end wrench on the body's machined flat notches to thread the lag portion clockwise into the wood post until it sits securely flush.
3,Insert the Cable: Cut your 1/8" or 3/16" cable straight. Push it firmly into the terminal's receiver barrel until it bottoms out against internal stoppers.
4,Test the Lock: Pull back firmly to guarantee the multi-jaw mechanisms have gripped and locked onto the metal strand securely.
