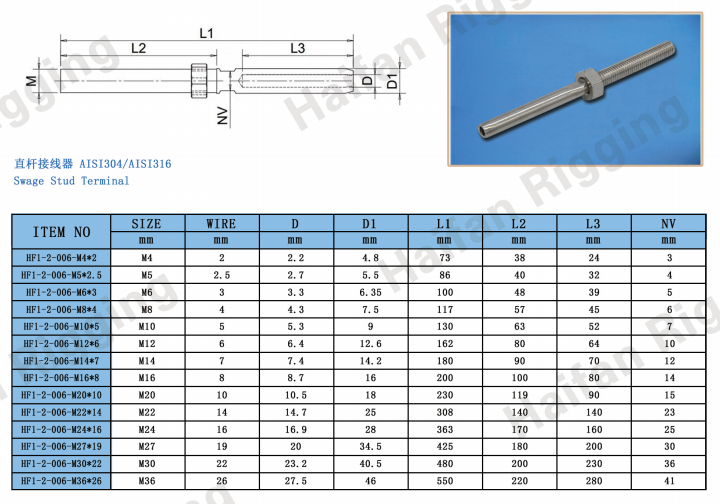

Stainless Steel Wire Rope Swage Stud Threaded Terminal A swage stud threaded terminal is a heavy-duty mechanical hardware component used to permanently attach a threaded bolt ending to the tip of a wire rope or aircraft cable. It serves as an ultra-secure anchoring and tensioning point. This allows users to tighten or lock the cable assembly into walls, metal posts, or specialized rigging equipment. How It Works? The Swage End: One side of the terminal features a hollow, deep bore sleeve. The bare wire rope is inserted into this opening. Heavy external pressure is then applied using a manual crimper or a hydraulic swaging machine. This process permanently crushes and cold-forms the metal sleeve directly onto the steel strands. The Threaded End: The opposing side consists of a solid, threaded rod (or stud). It passes through anchor plates, posts, or turnbuckles. It is tightly secured using washers and hex nuts. Common Industry Applications Architectural Cable Railing: Creates modern, minimalist, and near-invisible balustrades. These are commonly used on backyard decks, balconies, and indoor staircases. Marine Rigging: Secures stay lines, lifelines, and guard rails on sailboats and ocean-faring yachts. Structural Bracing: Used for heavy architectural tensioning, structural cross-bracing, and overhead roof extension supports. If you are planning a project, tell me if you are working on deck railings, marine rigging, or a different project. I can help you pick the right wire thickness, thread sizes, or swaging tools.
The Hand Swage Stud can fit wire sizes from 2mm to 26mm for every project, large or small. This stud features a UNF, right or left hand thread and is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine, industrial and architectural applications.
Stainless Steel Swage Stud Threaded Terminal Go ahead and order your swage stud terminal At Haifan Rigging we strive to offer the best value and service,and are pleased to offer a range of swage stud terminals left/right hand threads in a variety of sizes.To put forward an order for your rigging screw(s),simply fill out our contact form here We are always available for clarification and for order. We look forward to hearing from you! | |
 | |
