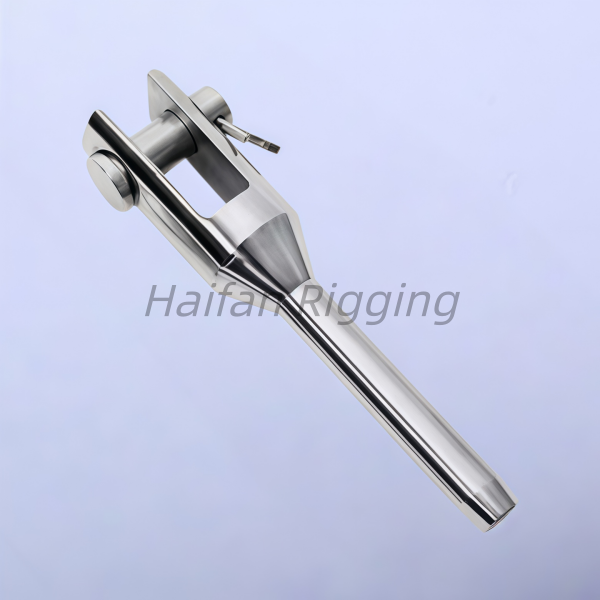

A Machined Swage Fork Terminal (also known as a swage jaw or clevis fork terminal) is a high-strength rigging hardware component used to permanently anchor the end of a steel wire rope. It features a hollow cylindrical tube (swage shank) on one end to receive the cable, and a U-shaped fork (jaw) with a removable clevis pin on the other end to connect to anchor points, chain plates, or lugs. Machined from Solid Metal: Unlike standard terminals that are welded or forged, machined terminals are carved from a single solid bar of steel. This eliminates structural weld joints, which are common failure points, providing maximum tensile strength. Marine-Grade Materials: They are almost exclusively manufactured from 316 stainless steel (or 316L) to ensure maximum resistance against salt-water corrosion and harsh weather. Secure Clevis Pin: The fork connection relies on a heavy-duty clevis pin and a split ring (or cotter pin), making it easy to link to rigid structures while allowing pivot movement.

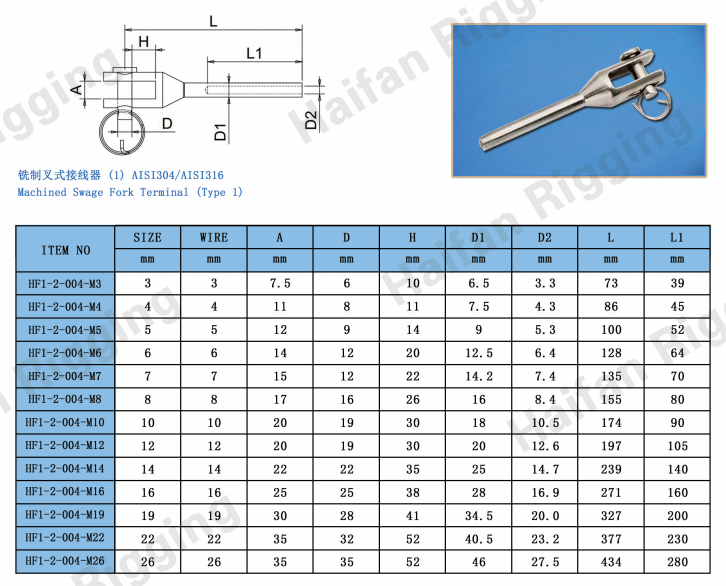

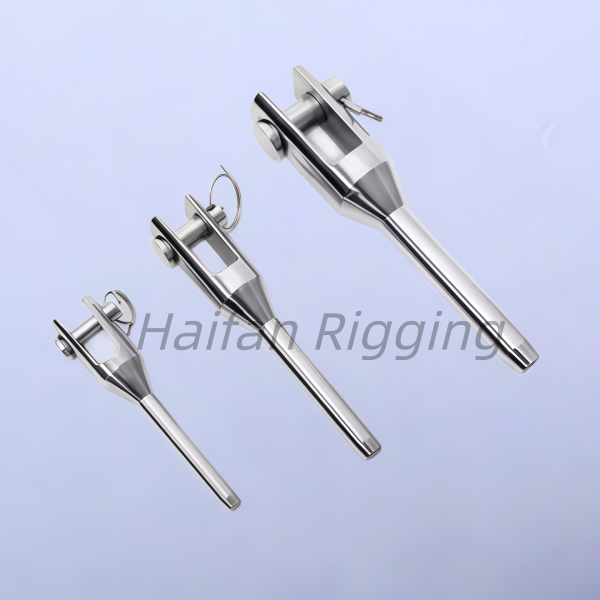

Machined Swage Fork is machined from AISI316 Stainless Steel solid bar. It has a clevis fork/Jaw head and a swage stud at the other end. The Jaw terminal is highly polished with a clevis pin. It’s stronger than the welded swage fork terminals. The swage terminals have maximum corrosion resistance and can be used in marine environments. Sizes from 3mm to 26mm.
Machined Swage Fork Terminal Go ahead and order your Machined Swage Fork Terminal. We offer swage terminals in a plentiful range of lengths and eye diameters.If you wish to place an order, just fill in a rapid inquiry form here.If you’ve got a question or need some more advice, please feel free to ask us. We look forward to hearing from you! | |
 | |
