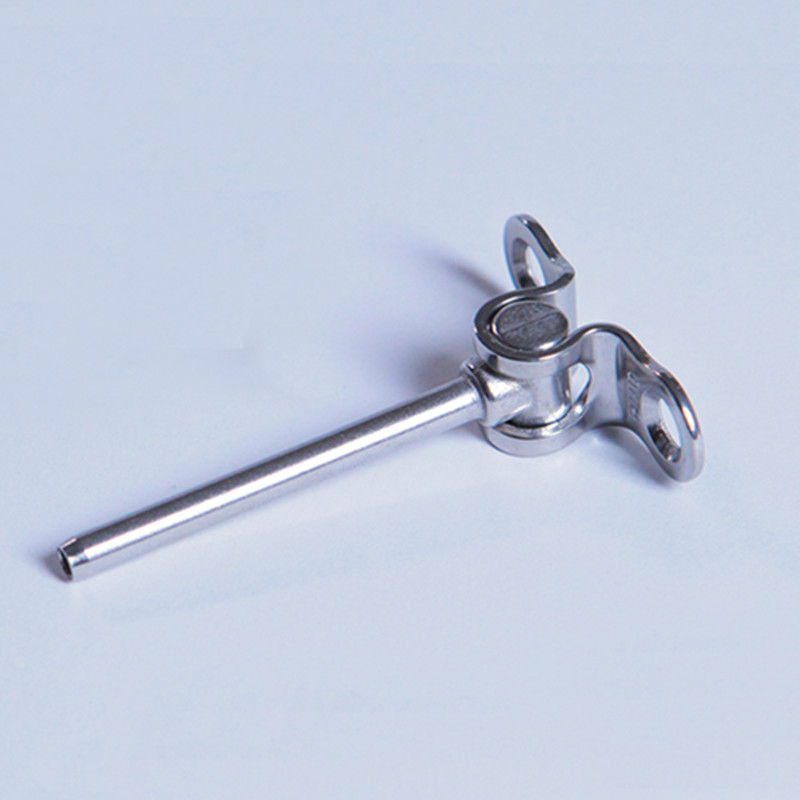

Swage Surface Mount Deck Rigging Toggle Terminal for 1/8″ and 3/16'' Cable Railing
HF Surface Mount Rigging Toggle Terminals are T316 marine grade stainless steel and attach to 1/8'' and 3/16'' diameter cable with the use of a crimper or hand swaging tool.The toggle allows you to adjust the pitch of your cable run up to 135 degrees or a straight run.Great for stairs, angled pitch, elevation changes,or straight and level runs in your railing or marine application.
Our stainless is suitable for outdoor or indoor and has an excellent shine and radiance to it. Looks much nicer than galvanized and holds up against corrosion.Perfect for installation on exterior decks, marine rigging,or interior applications.Two mounting screws (not included) and a hand crimping tool (not included) is all you will need to mount your toggle.We recommend using 1/4″ x 1.5″ Stainless Hex Head lag screws.HF Surface Mounting Deck Toggles are for cable runs that must attach to the surface of a support structure (deck,wood,concrete,etc).
These are terminals and will need a tensioner on the other end of each strand to tighten the cable for you We recommend 1/8″ or 3/16'' cable for indoor or outdoor projects because it allows for better scenic viewing while still passing building code in most areas.Please check local building codes before purchasing and installing.
The Hand Swage Wall Mount is perfect for numerous marine, industrial and architectural applications.This hand swage fitting is made from grade 316 stainless steel for maximum corrosion resistance and durability and are available for cable sizes 1/8" and 3/16".
Come and order your Swage Surface Mount Deck Rigging Toggle Terminal for 1/8″ and 3/16'' Cable.
Haifan Rigging supply a range of cable railing accessories. They come with a variety of fittings for each end to suit your particular application.
To put in your order,just fill out our short inquiry form here,but please do ask us if you need anything custom-made.
If you wish to ask a question or need further advice,you are welcome to contact us.we'll be happy to help.
We are always available for clarification and for order.
We look forward to hearing from you!
