U Bolt with One Plate and Double Nuts.

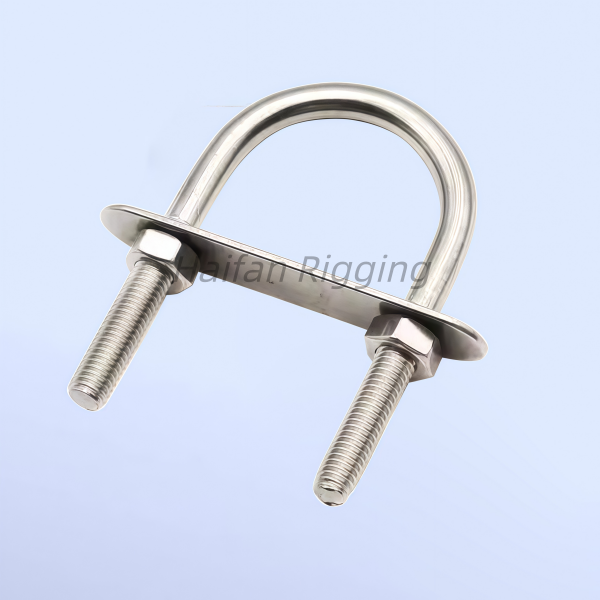

A U-bolt with one plate and double nuts is a standard hardware kit used to securely anchor, clamp, or support piping, conduit, and structural components. The design utilizes a continuous U-shaped piece with threads on both ends, allowing a single backing plate to slip over both legs and lock down tightly with two matching hex nuts.
Key Components
U-Bolt: A single metal rod bent into a "U" shape with machine threads on both ends.
Backing Plate (Tie/Frame Plate): A flat metal strap with two holes that bridges the legs. It evenly distributes clamping force and prevents the U-bolt from crushing or biting directly into the mounting surface.
Double Nuts: Two matching hexagonal nuts (one per leg) to tighten and secure the assembly against the backing plate.
Common Variations & Material Options
When purchasing or manufacturing these assemblies, you will typically choose based on application environment and structural shape:
Bend Shapes:
Round Bend: Best for securing cylindrical items like pipes, tubing, or round trailer axles.
Square/Box Bend: Ideal for clamping onto square objects like timber beams, vehicle chassis, or square trailer frames.
Common Materials:304/316 Stainless Steel: Offers premium rust and corrosion protection, highly recommended for marine, industrial, or outdoor use.
Zinc-Plated Carbon Steel: A highly economical option for indoor plumbing, automotive, or residential applications.
Hot-Dipped Galvanized Steel: Provides a thick, rugged layer of corrosion resistance, great for structural outdoor environments.
To help you find the exact assembly you need, could you specify the pipe or frame diameter you are mounting, whether you need a round or square bend, and what type of environment (e.g., indoor or marine) it will be used in?U Bolt with One Plate and Double Nuts.
Come and order your U Bolt with One Plate and Double Nuts.
To place an order, just fill in a rapid online form here. but please do ask us if you need anything custom-made.
