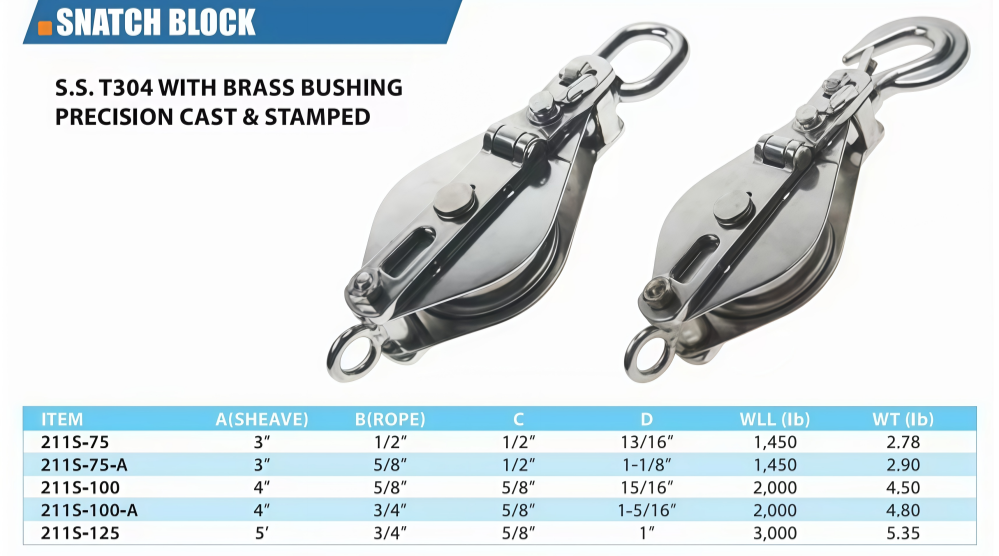

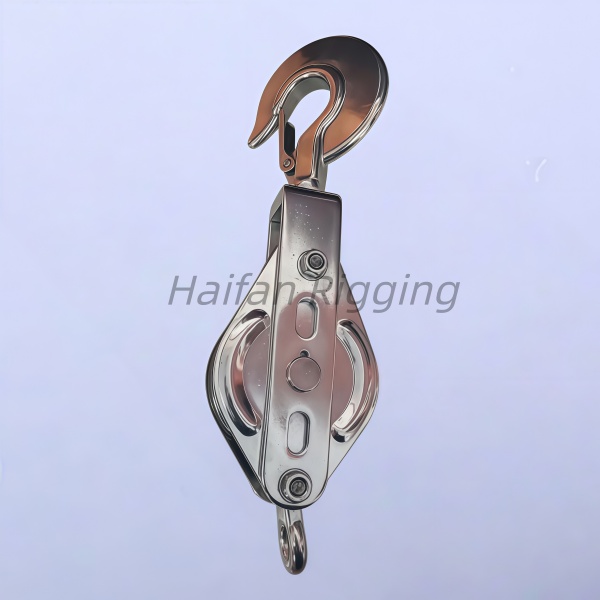

Single Sheave Snatch Block with a Swivel Hook and Becket.
Anatomy & Components
Top Swivel Hook with Latch: The heavy-duty steel hook rotates a full 360 degrees to realign naturally under heavy load and prevent the line from kinking or twisting.
The safety latch keeps the connection securely fastened.
Metal Side Plates (Cheeks): The rigid diamond-shaped metal housing protects the inner wheel and keeps the rope firmly seated in the groove.
Single Sheave: The interior single wheel is designed to route wire ropes, steel cables, or high-tensile fibrous ropes smoothly.
Bottom Becket (Connection Eye): The small metallic ring at the very bottom allows you to dead-end a rope directly to the block, which is essential for creating multi-line block and tackle mechanical systems
Primary Applications
Vehicle Recovery & Winching: Used with utility winches on trailers, 4x4 vehicles, or wreckers to redirect pull angles or double the towing capacity.
Industrial & Crane Lifting: Ideal for overhead construction hoisting, crane wire setups, and material handling.
Heavy Marine Rigging: Used for commercial fishing boat davits, anchors, and dock loading setups where metal wire rope is utilized.
If you are trying to verify its capabilities for a project, do you know the stamped weight limit (SWL / WLL) on the side plates, or the maximum diameter of the cable you intend to slide through it?

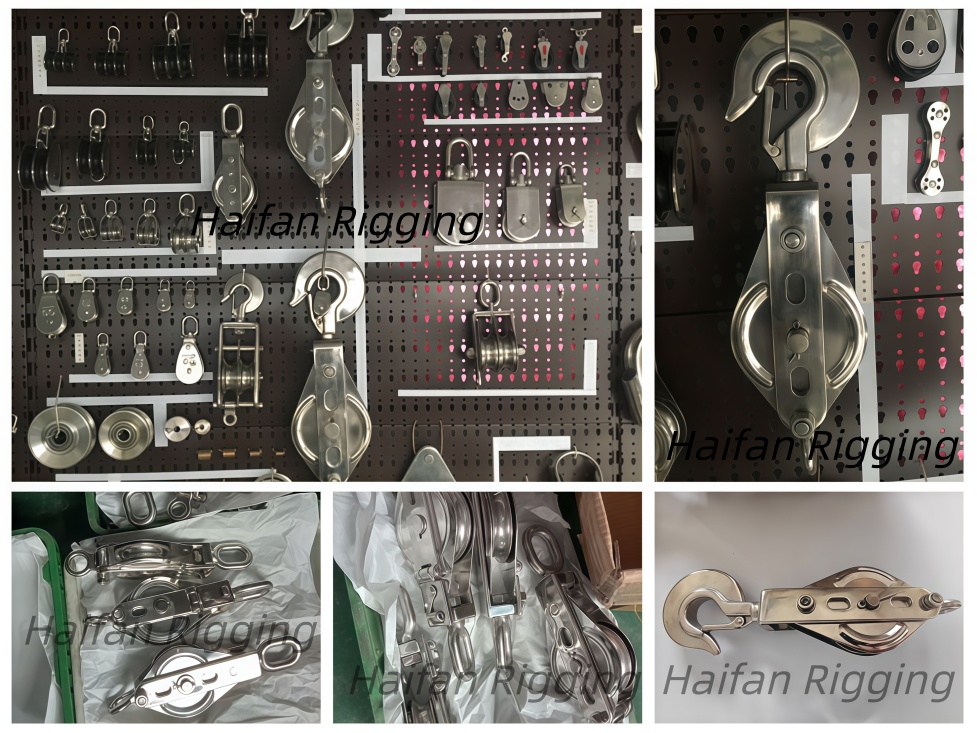

Haifan Rigging supply a range of blocks and pulleys.They come with a variety of fittings for each end to suit your particular application.
To put in your order, just fill out our short inquiry form here,but please do ask us if you need anything custom-made.
If you wish to ask a question or need further advice, you are welcome to contact us.
We’ll be happy to help.
We are always available for clarification and for order.
