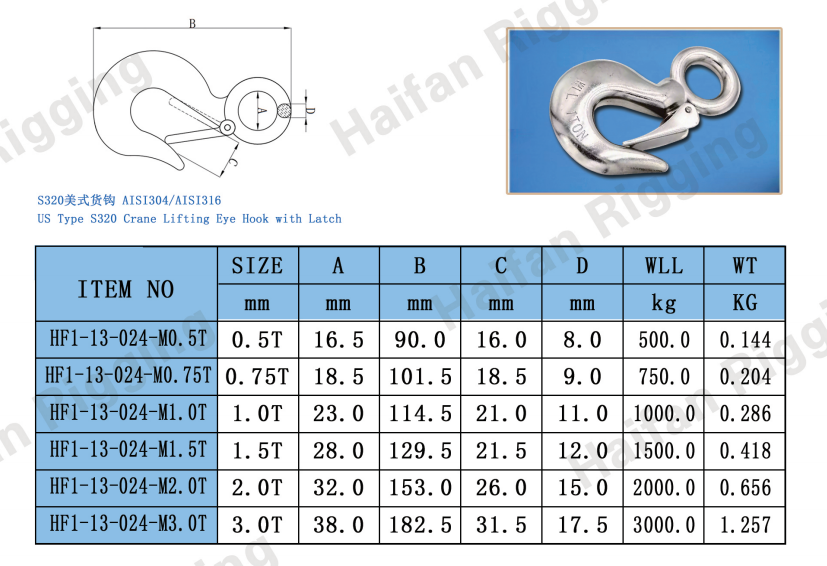

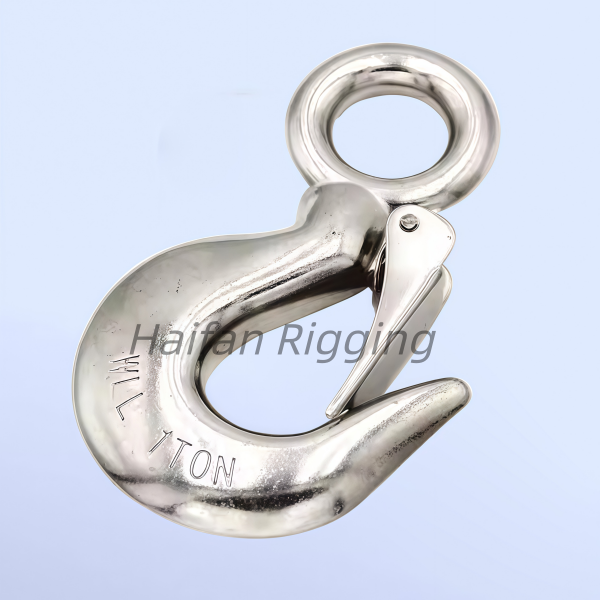

Stainless Steel Lifting Eye Hook US Type S320 Crane Lifting Eye Hook with a Safety Latch.
Key Visual and Physical Characteristics.
Working Load Limit (WLL): Like Stamped on the hook body as WLL 1 TON. Do not exceed this limit under any circumstances.
Material: Polished stainless steel (likely Grade 304 or 316). This provides excellent resistance to rust, making it suitable for marine, chemical, food processing, or outdoor environments.
Integrated Safety Latch: A spring-loaded metal gate designed to close the throat opening completely. This prevents rigging lines or master links from slipping out when tension is released.
Safe Operational Procedures
Correct Load Placement: Place the load or lifting sling directly in the lowest point of the hook bowl. Never let the load rest on or snag against the tip of the hook or the safety latch.
Latch Functionality: Always verify the latch snaps shut tightly against the inner tip. The latch is not load-bearing; it only serves as a safety retention gate.
Straight-Line Tension: Ensure the lifting force is pulled in a straight line relative to the hook's central axis. Avoid any side-loading, twisting, or prying forces that bend the hook outward.
Rigging Attachment: Connect the upper eye to your hoist or crane line using a properly rated shackle or master link. Avoid welding directly to the eye or forcing oversized components into it.
