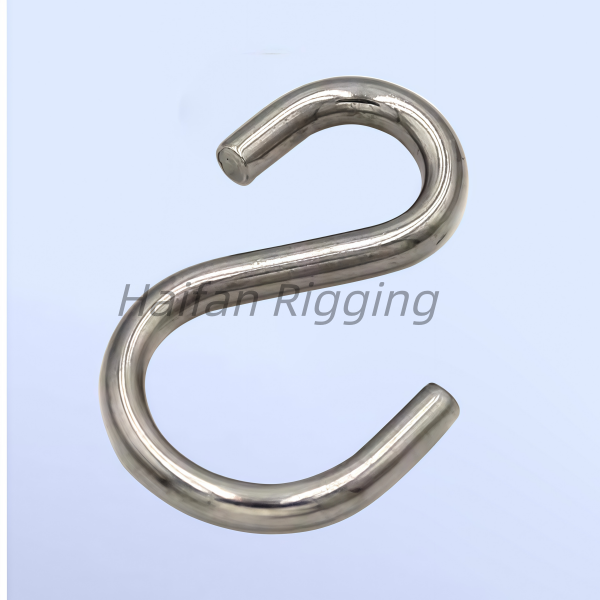

An Asymmetric S-Hook (also known as an asymmetrical S-hook) is a specialized variant of the classic S-shaped utility hook where the two curved loop ends are deliberately designed with different sizes, shapes, or opening clearances.Unlike a standard, symmetrical S-hook, its uneven shape gives it specific mechanical and functional advantages for industrial rigging, commercial displays, and storage systems.
Key Visual and Structural Characteristics

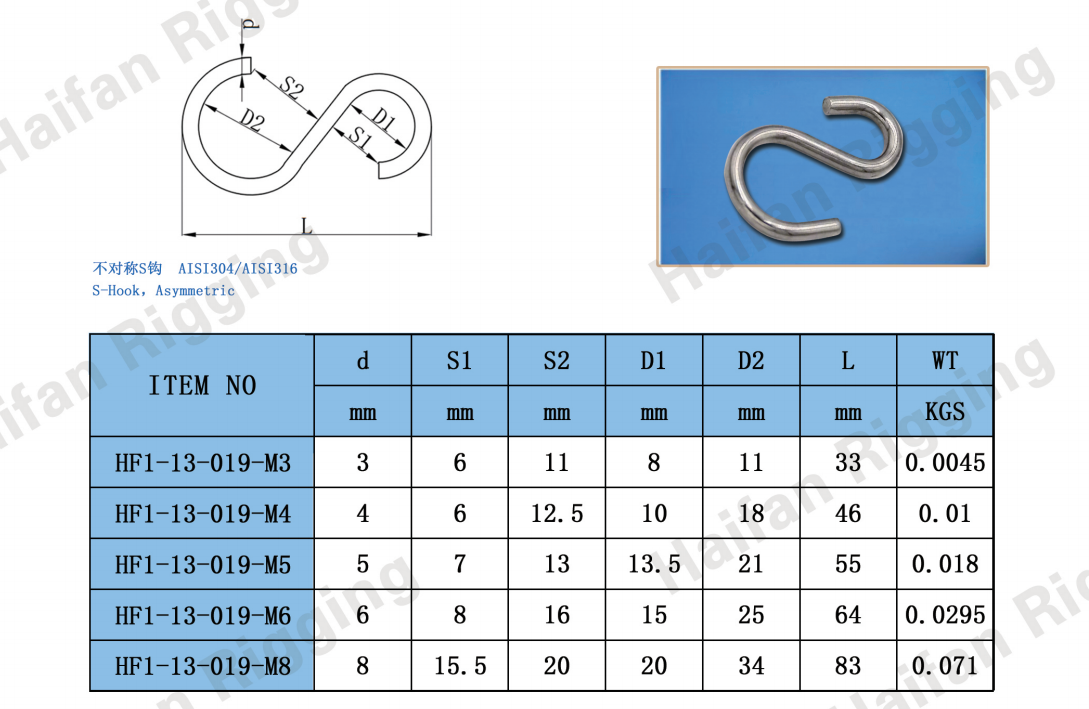

Unequal Loop Diameters: One end features a smaller, tighter radius with a narrow opening, while the opposite end has a larger, wider curve.
Sloped Center Bar: Because the loops are uneven, the connecting central section slopes diagonally rather than sitting perfectly horizontal or vertical.
Shifted Center of Gravity: The asymmetric weight distribution causes the hook to balance differently under load, preventing it from swinging or twisting as easily as a symmetrical hook.
Primary Advantages and How It Works
"Stay-Put" Anchoring: The smaller, narrower loop is intended to be clamped or hooked tightly onto a fixed support rod, wire rope, or ceiling eyelet. Because it hugs the anchor tightly, the hook will not easily lift off, wobble, or fall when you remove items from the other end.
Easy Access Clearance: The larger, wider loop hangs downward, providing maximum clearance to easily slip hanging items (like chains, tools, banners, or straps) on and off.Size Transition: It acts as an adapter, allowing you to bridge a thick, bulky hanging bar to a very small attachment point (or vice versa) without using multiple connectors.

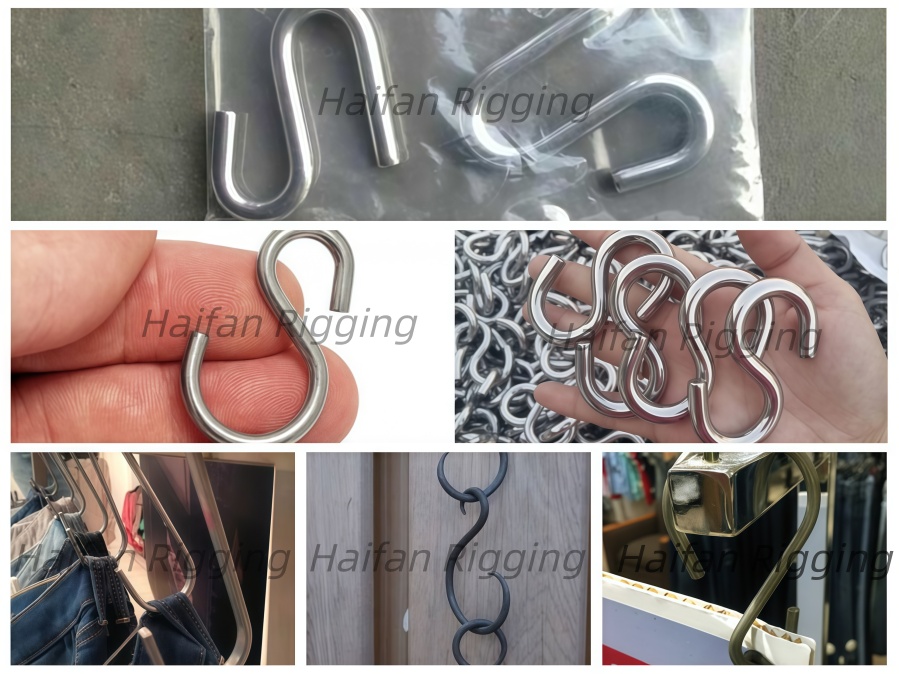

Common Applications
Marine Rigging: Used on boats to transition from thick deck pads or rails to thinner sail ropes or fenders.
Retail and Visual Displays: Used to hang signage, clothing racks, or hanging baskets from thick overhead pipes while keeping the sign loop small and neat.
Industrial Warehousing: Used on automated overhead conveyor tracks or heavy-duty storage racks where hooks must remain securely attached to the track when empty.
Material: Most premium variants are forged or cast from 304 or 316 Stainless Steel to guarantee high rust-resistance and extreme durability in outdoor, wet, or marine environments.
