Oval Marine Grab Hand Rail is a specialty safety handle designed specifically for boats, yachts, and outdoor recreational vehicles. The term oval refers to the cross-section shape of the grip tube itself. Instead of being perfectly round like a pipe, the metal tube is flattened into a smooth, oval shape.
Why Use an Oval Grip?
Better Hand Comfort: The flattened oval design fits the natural shape of a closed human fist much better than a round bar.
Anti-Slip Security: When a boat rocks violently, a round bar can easily spin or slip in your wet palm. An oval bar gives your fingers a distinct edge to lock onto, preventing your hand from losing its grip.
Low Profile: The flatter design sticks out slightly less into narrow walkways, reducing the chances of you stubbing your toe or catching your clothes on it.
Mounting Style: Integrated Studs

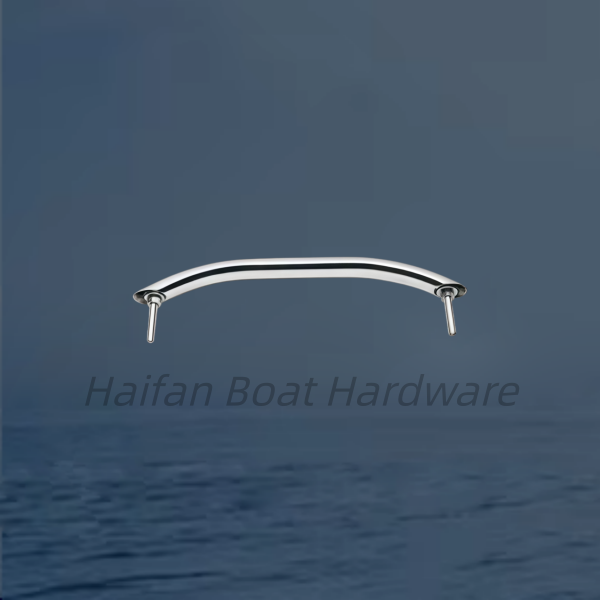

As shown in your image, this specific rail uses a blind-stud mounting style:
Hidden Fasteners: Threaded bolts are permanently welded into the bottom bases of the handle.
Clean Look: You drop the studs straight down into pre-drilled holes in your deck or wall. No screw heads are visible from the top side.
Secure Hold: You tighten washers and nuts onto the studs from underneath, squeezing the surface tight for maximum pulling strength.
If you are trying to source or replace this exact handle, let us know:

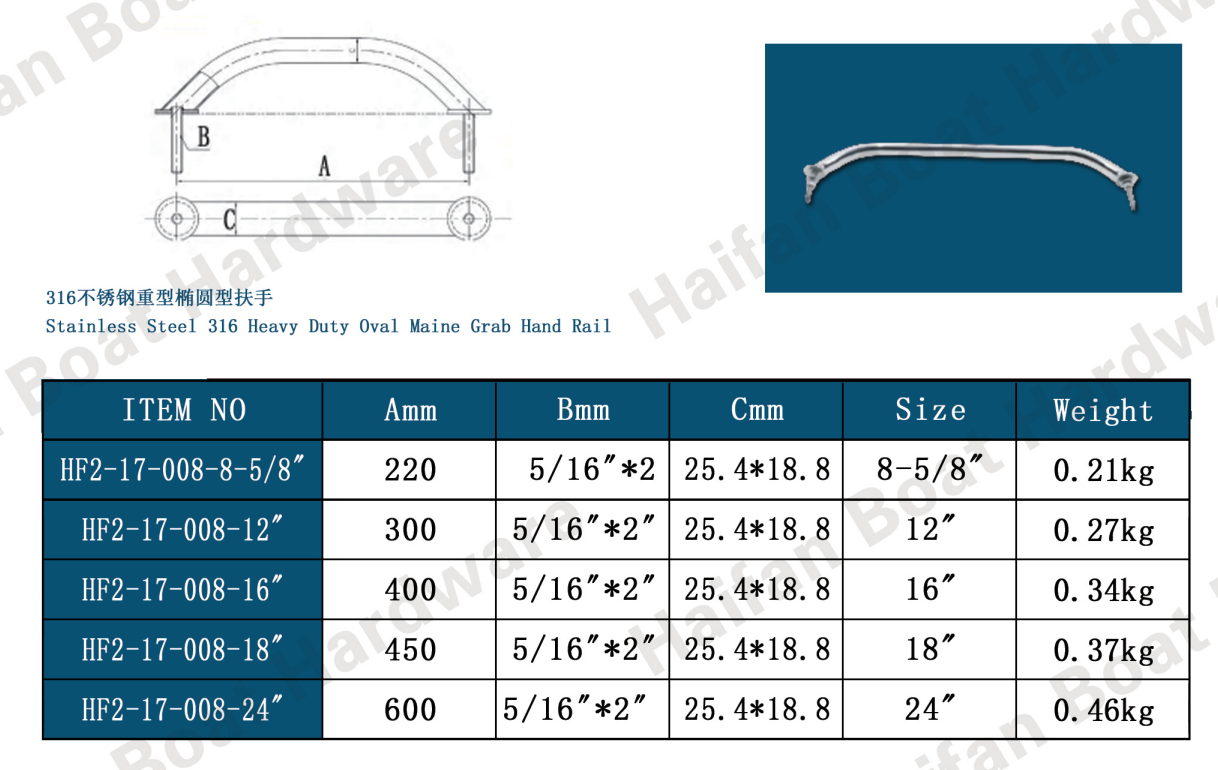

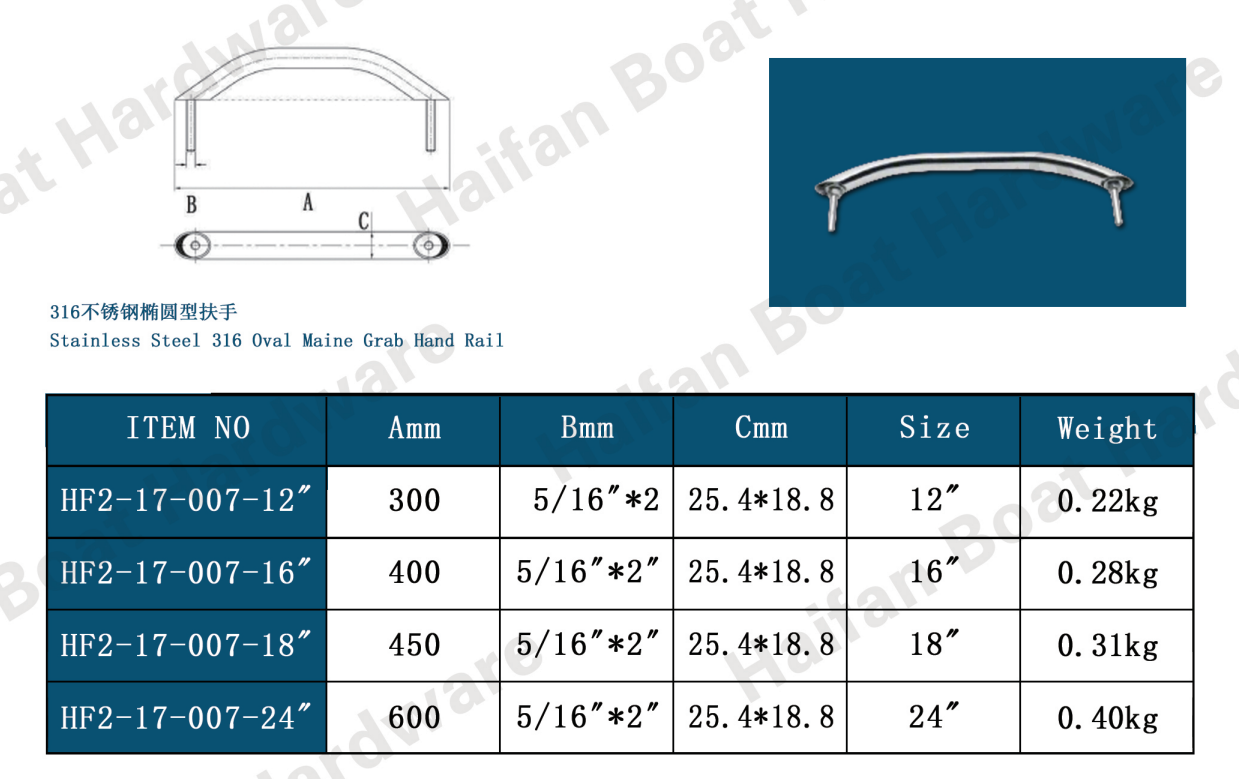

What is the center-to-center distance between the two threaded studs?
What overall length (e.g., 200mm, 250mm, 300mm) do you need for your space?
Do you need the hex nuts and washers included with the rail?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
