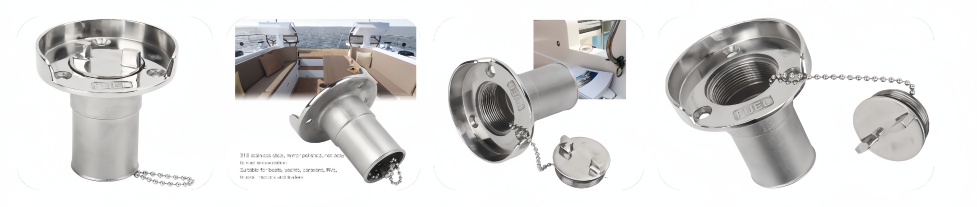

Boat Deck Fill with Splash Guard
1.5in/38mm Hose Deck Fill with Splash Guard Stainless Steel Boat Water Deck Fill for Marine Yachts Caravans RVs Trucks Trailers.
Key Features & Design Purpose
• Integrated Splash Guard: The prominent, raised semi-circular lip around the flange is specifically engineered to contain and redirect accidental spills or back-splashing during fueling or water topping. This protects your boat’s fiberglass, teak deck, or gelcoat from stains and fuel degradation [Clean Way Fuel Fill].
• Keyless Dual-Lug Cap: The lid features two raised rectangular tabs (lugs). This design allows you to open and secure the cap tightly by hand or with a basic tool, eliminating the need for a separate, easily misplaced marine deck plate key Sea-Dog Corporation.

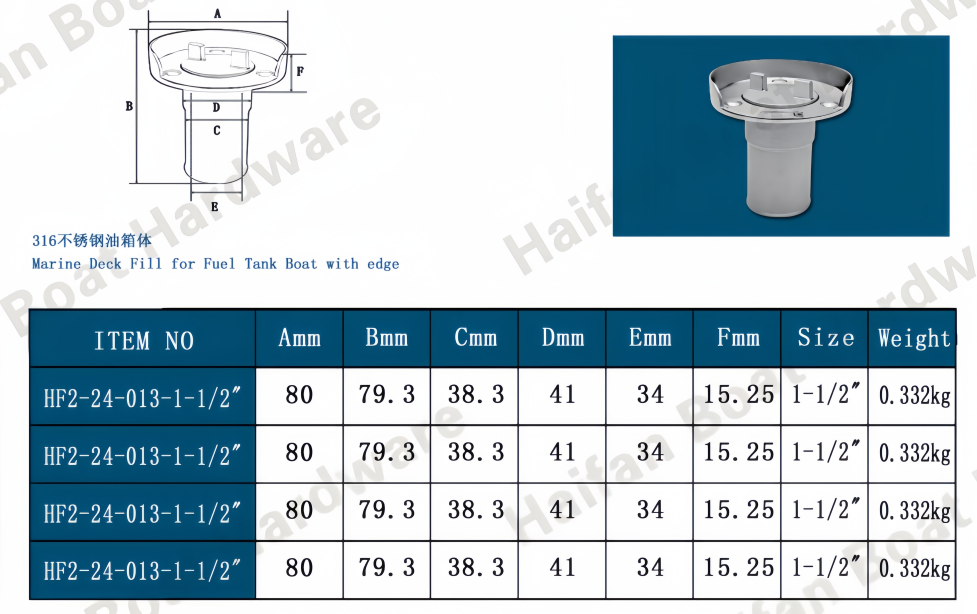

Standard Technical Specifications
• Hose Connection (O.D.): Primarily available in 1-1/2 inches (38mm) to match standard marine fuel and water filler hoses Sea-Dog Corporation.
• Flange Diameter: Approximately 3-1/8 inches (79mm) Sea-Dog Corporation.
• Required Deck Cutout: Fits a standard hull/deck opening of 2-9/16 inches (65mm) Sea-Dog Corporation.
• Material Options: Typically cast in high-polish 316 Marine-Grade Stainless Steel for ultimate saltwater corrosion resistance, or chrome-plated zinc for budget-friendly freshwater applications Sea-Dog Corporation.
• Safety Grounding Port: For gas or diesel variants, there is a dedicated terminal tab on the neck underside to connect a static bonding wire to the boat's grounding system, strictly adhering to USCG electrical safety standards Sea-Dog Corporation.
Common Applications by Type
• FUEL / GAS: Intended for gasoline lines, typically paired with a built-in internal safety retention chain and an oil-resistant rubber O-ring seal to stop fumes and water intrusion.
• DIESEL: Used specifically for diesel lines to keep fuel ports safely color/text-coded across multi-tank deck configurations.
• WATER / WASTE: Utilized for fresh water tanks or waste holding tank suction fittings.
If you'd like, let me know:
• What type of tank you are filling (fuel, gas, diesel, water, or waste)
• What hose diameter or neck angle you need
We can help you narrow down the exact size or style.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
