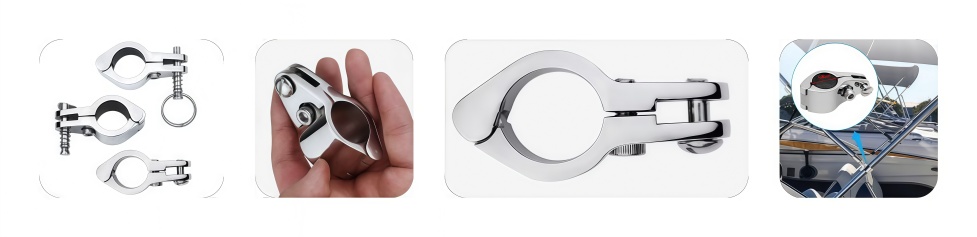

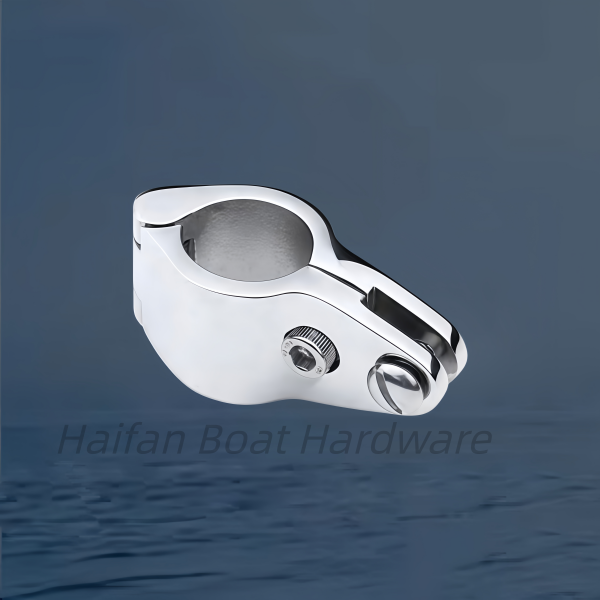

The Hinged Jaw Slide is a crucial heavy-duty hardware component used to secure support poles to marine rails or a Bimini top frame.
Core Features
Hinged Action
Opens wide to wrap over existing tubing structures.
Eliminates the need to tear down structural frame components.
Speeds up retrofitting, seasonal storage, and on-water hardware swapping.
Dual Fasteners
Hex socket set screw: Locks the clamp firmly down onto the tubing.
Slotted clevis pin: Acts as the mounting point for connecting standard eye ends.
316 Stainless Steel
Crafted from investment-cast, high-purity marine grade alloy.
Polished to a brilliant mirror-like finish.
Delivers superior protection against pit corrosion in brackish or saltwater environments.

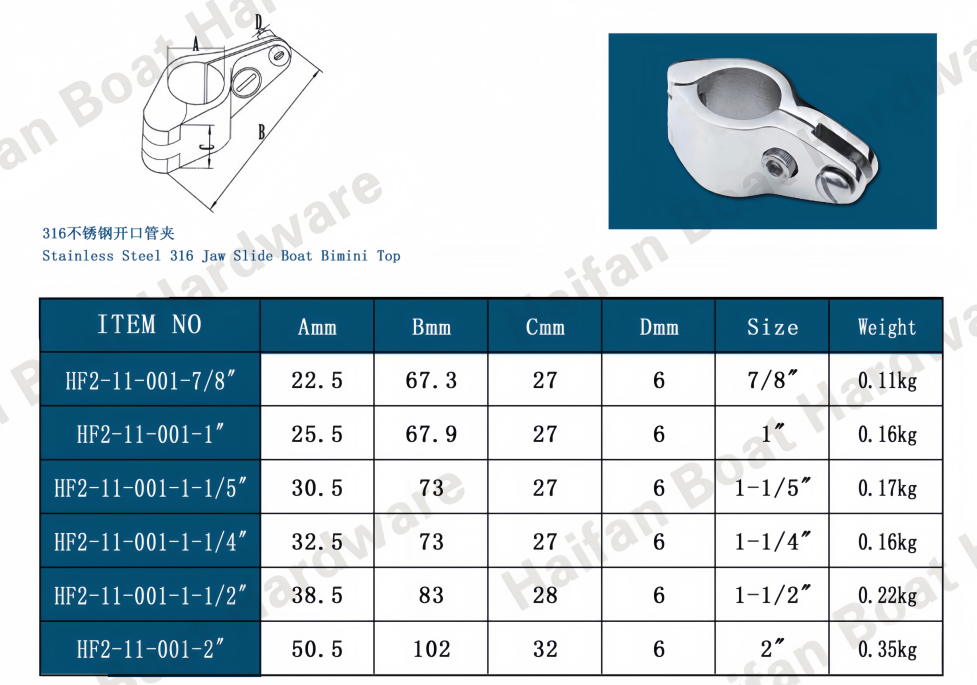

Technical Specifications
Common Sizes: Engineered for either 7/8-inch (22mm) or 1-inch (25mm) outer diameter (O.D.) marine round tubing.
Pin Size: Standard units usually feature a 1/4-inch removable connecting screw thread.
Do you need help calculating your exact tubing size or sourcing matching eye ends?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
