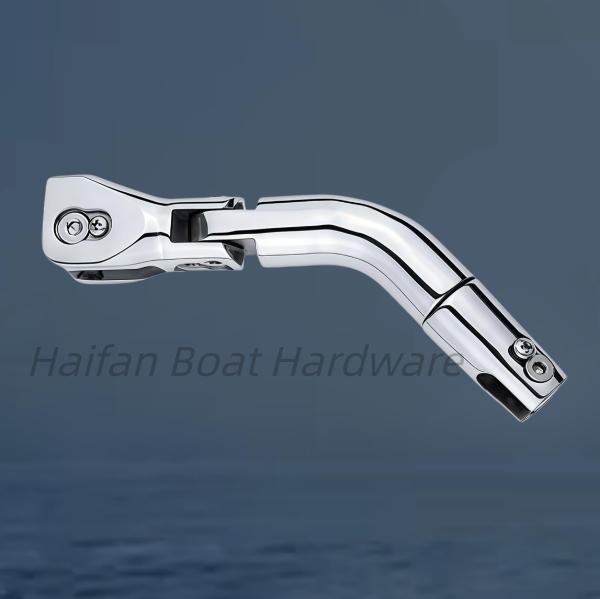

Articulated Three-Section Self-Righting Anchor Chain Swivel Connector. It is a specialized, multi-jointed piece of marine hardware designed to optimize how a boat's anchor rides over the bow roller assembly during retrieval.
Key Features & Mechanics
Three-Section Articulated Body: The segmented, three-piece design provides a much wider, multi-axis range of movement compared to standard single or double swivels.
Self-Righting/Flips the Anchor: The engineered curve allows the connector to bend smoothly over the bow roller. If the anchor approaches upside down, the mechanical leverage of the curve forces the anchor to automatically flip into its correct, upright position.
Anti-Loose Locking Screws: It includes dual locking screws on both ends to mechanically anchor the pins in place. This eliminates the risk of them backing out under intense water pressure or windlass vibrations.
Marine-Grade Build: Constructed from high-tensile, mirror-polished AISI 316 stainless steel, it ensures maximum rust and corrosion protection in heavy saltwater environments.

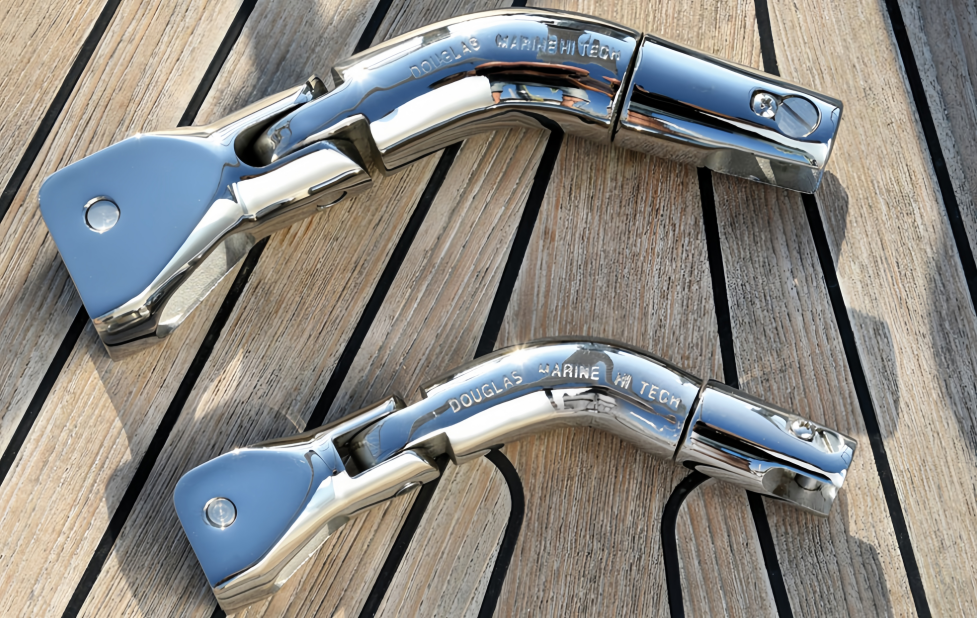

An articulated three-section marine anchor swivel connector crafted from polished 316 stainless steel to ensure smooth, self-righting retrieval over boat bow rollers.
If you are planning to upgrade your anchoring system, let us know:
Your anchor chain size (commonly 1/4"-5/16" or 3/8"-1/2").
The make or style of your anchor (such as a Plow, Delta, or Rocna).
We can help you check compatibility to ensure it clears your specific bow roller without jamming!
